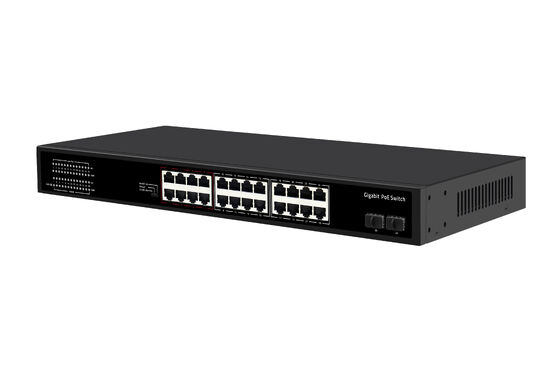

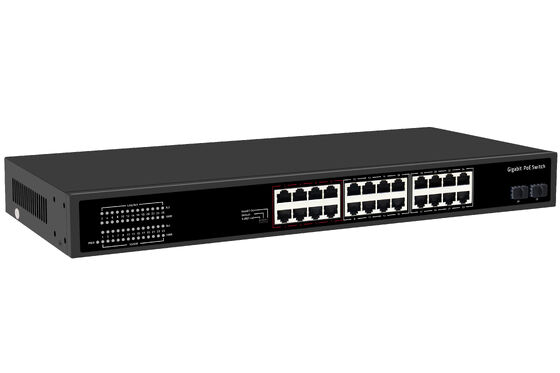

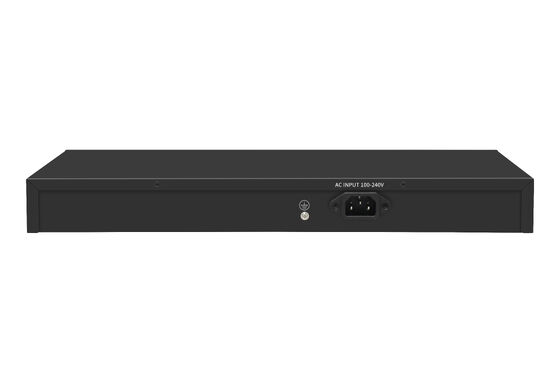

Olycom 24 Port CCTV PoE Fiber Network Switch
Introduction
The 28-Port Gigabit PoE Switch is an advanced networking solution designed for seamless connections to 10/100/1000M Ethernet.
This device combines data transmission and power supply over Ethernet cables, facilitating the easy installation of devices like IP phones, wireless access points, and network cameras. By supporting IEEE802.3af/at standards, the PoE Switch can automatically detect and provide power to compatible devices, making network setups more efficient.
Specification
|
I/O Interface
|
|
Power
|
AC100-240V 50/60Hz
|
|
Ethernet
|
24*Gigabit PoE Ports
2*Uplink ports
2*Gigabit SFP Ports
|
|
Chipset Solution
|
EN8850DH,RTL8238B
|
|
Performance
|
|
Bandwidth
|
56Gbps
|
|
Pack forward rate
|
41.644Mpps
|
|
Memory cache
|
3Mbit
|
|
MAC address
|
8K
|
|
Jumbo Frame
|
9.6Kbytes
|
|
Transfer mode
|
Store and forward
|
|
MTBF
|
100000 hour
|
|
Standard
|
|
Network Protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
|
|
PoE Protocol
|
IEEE802.3af(15.4W)
IEEE802.3at(30W)
|
|
Network Medium
|
10Base-T : Cat3, 4, 5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
|
|
Certificate
|
|
Safety Certificate
|
CE, FCC, RoHS
|
|
Environment Standard
|
|
Working Environment
|
Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Function Indicator
|
|
Indicator
|
PWR(Power),1-28 Green Light(Link&Data),1-24(Yellow Light),POE Led Key
|
|
PWR
|
On: Powered on
Off: Powered off
|
|
1-28 Green Light (Link&Data)
|
On: Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
PoE Max POE power light
|
Off: indicates PoE power usage is less than 90%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
On: indicates that PoE power is used at 95%<P<100%
|
|
Mode DIP Switch light
|
On:Extend on
Off:Extend off
|
|
1-24 (Yellow Light)
|
On:POE power supply is normal
Off:POE not powered
|
|
PoE Led Key
|
Dual color light selection: default green (link data), switch yellow light (PoE)
|
|
Extend DIP Switch
|
OFF:common mode, all interfaces can communicate with each other, the
transmission distance is less than 100 meters, the transmission rate is 10/100/1000M
adaptive; The port AI mode is disabled
ON: Link extension mode, 17-24 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;
|
|
Physical Structure
|
|
Structure Size
|
Product Dimensions: 440*280*44mm
Package Dimensions: 500*365*85mm
Product N.W: 3.565KG
Product G.W: 4.264KG
|
|
Packing Info
|
Carton Dimensions: 520*445*385mm
Packing Quantity: 5pcs
Packing Weight: 22.3KG
|
|
Power Voltage
|
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V /7.69A
|
|
power
|
Non POE board power: maximum 15W
POE power: maximum 380W
|
|
Packing List
|
Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC
|
Features
This PoE switch boasts 24 gigabit PoE ports along with 2 uplink ports and 2 Gigabit SFP ports.
It offers robust support for multiple Ethernet standards, ensuring smooth and high-speed data transmission.
The device comes with intelligent features such as automatic power detection, a zero-configuration setup, and support for different VLAN modes. It also includes protections against electrical surges and electrostatic discharges, ensuring reliability in various environments.
Applications
This PoE switch is perfect for industries requiring high-performance networking solutions such as telecommunications, education, government, and security sectors.
It is used in applications ranging from broadband private networks to multimedia transmission, offering the ability to simultaneously transmit control signals, images, and data.
The device’s versatility also extends to real-time monitoring and video conferencing, ensuring seamless integration into various network environments.
