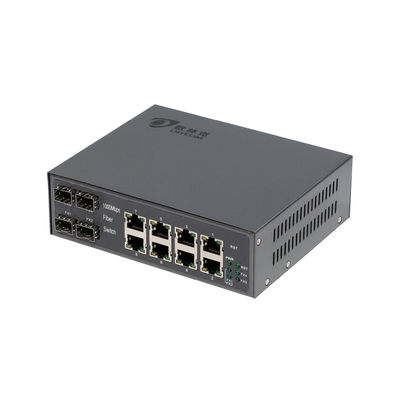

Fiber Optic Gigabit Switch 8 Port With POE Managed L2 For Indoor Use
Introduction
TA748W-PSE-GE 10/100/1000Mbps Fiber Optic Gigabit Switch provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the 8 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras. Using SFP fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 120km max on SMF. Standard in-stock fiber interface is LC.
Key Features
1. 4 x SFP fiber port
2. 1~8port support IEEE802.3af( IEEE802.3at optional)
3. 8pcs 10/100/1000Mbps RJ45 adaptive
4. Excellent cooling system with unique HIC solution
5. IEEE802.3/u/x compliant
6. Conspicuous LED indicators for power/link diagnose/data
7. Support Auto MDI/MDIX
8. Poe power for each port is 15.4W for AF and 30W for AT
9. L2 managed function
10. 6KV surge protection
11. external power supply, the power connector can be DC or green terminal.
12. Security: port-based and MAC-based IEEE802.1X, RADIUS, ACL, TACACS +, HTTP/ HTTPS, SSL/SSH v2
13. Upgrade through TFTP and HTTP software, redundant firmware to avoid upgrade failure
14. Supports IEEE1588 PTP V2 precise time synchronization, which can be used at ordinary borders, point-to-point transparent clock, end-to-end operation, transparent clock for each port, master station, slave mode
15. RMON, MIB II, port mirroring, event system log, DNS, NTP, SNTP, IEEE802.1ab LLDP
16. Support IPv6 Telnet server / ICMP v6
17. CLI, web-based management, SNMP v1 / v2c / v3, Telnet server for management
18. Support Modbus / TCP protocol for management
Note: fiber ports here is SFP slot. The 4pcs SFP slots need to use 1.25G SFP transceiver. The SFP transceiver can be simplex or duplex, SM or MM. The wavelength for MM is 850nm/1310nm and SM is 1310nm/1550nm. For more details about this POE fiber switch, please contact us anytime.
Specification
| Product Name | Fiber Optic Gigabit Switch |
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.3af PoE/PSE |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| Fiber Port | 4 x SFP port |
| RJ-45 Port | 8 x Auto-MDI/MDIX |
| Input Voltage | AC100 ~ 240V / 50-60HZ to 48V via external adapter |
| Power Consumption | <2.5W (idle), 60W (full-load) |
| PoE Pin Assignment | 1/2 (V+),3/6 (V-) ,4/5 (V+),7/8 (V-) ,optional |
| PoE Output Voltage | -48V, 3A, 140W |
| Internet Protocol |
IEEE 802.3i 10BASET IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet), |
| Bandwidth | 40Gbps |
| Packet buffer memory | 2.75MB |
| IP Address Database | 4,000 |
| Buffer Size | 1M |
| Operation Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~75℃ |
| Storage Humidity | 10%～95% |
| Dimension | 160 x 130 x 50mm |
| Weight | 1.5 kg (Gross Weight) |
Application
Order Details
|
TA748W-PSE-GE/M2-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 4 fiber to 8 UTP, 220VAC in -48VDC out, MMF, dual fiber, 2Km, SC |
|
TA748W-PSE-GE/S20-SC |
PSE/PoE fiber switch, 10/100M/1000bps, 4 fiber to 8 UTP, 220VAC in -48VDC out, SMF, dual fiber, 20Km, SC |
|
TA748W-PSE-GE/S40-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 4 fiber to 8 UTP, 220VAC in -48VDC out, SMF, dual fiber, 40Km, SC |
|
TA748W-PSE-GE/S60-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 4 fiber to 8 UTP, 220VAC in -48VDC out, SMF, dual fiber, 60Km, SC |
|
TA748W-PSE-GE/S80-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 4 fiber to 8 UTP, 220VAC in -48VDC out, SMF, dual fiber, 80Km, SC |
|
TA748WS/U-PSE-FE/S20-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 4 fiber to 8 UTP, 220VAC in -48VDC out, SMF, single fiber, 20Km, SC |
