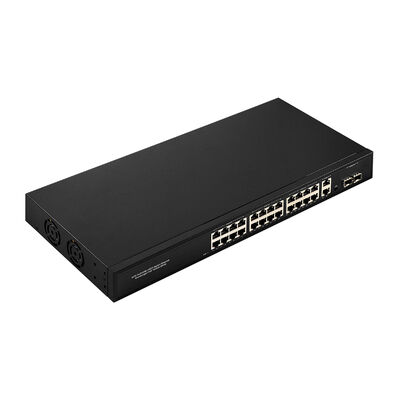

24 Port 1G Commercial CCTV PoE Switch
Key Features of PoE Network Switch
1. High-Density Gigabit PoE Access
Twenty-four 10/100/1000Mbps RJ45 ports support IEEE 802.3af/at, delivering up to 30W per port to power IP cameras, wireless access points, and VoIP devices, with total power options of 300W or 450W to match deployment scale.
2. Flexible Copper & Fiber Uplinks
Two Gigabit RJ45 uplink ports and two 1000Mbps SFP fiber ports enable smooth aggregation and long-distance transmission, supporting fiber links up to tens of kilometers depending on the SFP module.
3. Extended Transmission Distance
Supports Ethernet transmission distances up to 250 meters, ideal for large buildings and wide-area installations without additional extenders.
4. Stable Switching Performance
A store-and-forward switching architecture with 56Gbps switching capacity ensures non-blocking data forwarding for high-volume video and data traffic.
5. Network Stability & Traffic Control
Built-in VLAN support and storm control help isolate traffic and protect the network in dense PoE environments.
6. Plug-and-Play Deployment
Auto-negotiation and MDI/MDIX auto-crossover on all ports simplify installation and reduce deployment time.
7. Fanless, Quiet & Reliable Design
Natural cooling eliminates fan failure risks and ensures silent operation, suitable for offices, schools, and equipment rooms.
8. Enhanced Electrical Protection
Integrated 4kV lightning protection improves reliability in environments with electrical interference.
Specification of Commercial Ethernet Switch
|
Power
|
Power Adapter Voltage
|
AC 110V-240V
|
|
Consumption
|
Optional 300W or 450W
|
|
Network Connector
|
Network Port
|
PoE Ethernet Port
|
1~24Port : 10/ 100/1000Mbps
|
|
Ethernet port
|
Uplink Port : 10/ 100/1000Mbps
|
|
Fiber Port
|
Uplink Port : 2*1000Mbps SFP
|
|
Transmission Distance
|
1~24Port :
100/1000Mbps: 0~100m;
|
|
Uplink Port : 0 ~ 100m
|
|
SFP: depend on the SFP transceiver (20km-120km)
|
|
Transmission Medium
|
Cat5/5e/6 standard network cable
|
|
Network Switch
|
Network Standard
|
IEEE802.3/802.3u,
IEEE802.3x,
IEEE802.ab
|
|
Switching Capacity
|
56Gbps
|
|
Packet Buffer Memory
|
1Mbits
|
|
Throughput
|
41.664Mpps
|
|
MAC Table
|
2K
|
|
Packet Forwarding rate
|
10Mbps:14880pps/port
100Mbps: 148800pps/port
1000Mbps: 1488000pps/port
|
|
Power Over Ethernet
|
PoE Standard
|
IEEE 802.3af/at
|
|
PoE Power Supply
|
End-Span(1/2+;3/6-)
|
|
PoE Power
|
af=15.4W,at=30W for each port
|
|
RJ45 port
|
Port Function
|
Power priority mechanism,
fast and forward,
MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
|
|
LED Indicator
|
LED Indicator
|
LINK/ACT.100Mbps;
PoE Status Indicator;
Power indicator;Extender
|
|
Environmental
|
Working temperature
|
0C~55C
|
|
Relative Humidity
|
20~95%
|
|
Storage temperature
|
-20C~70C
|
|
Mechanical
|
Dimension (L ×W × H)
|
440mm*285mm*55mm
|
|
Color
|
Black
|
|
Weight
|
4.2kg
|
Application
1. Large-Scale IP Surveillance Systems
Centralized power and connectivity for dozens of IP cameras in campuses, industrial parks, and residential communities.
2. Wireless Network Deployment
Ideal for powering and aggregating multiple wireless access points in hotels, schools, and office buildings.
3. Enterprise & Campus Networks
Suitable for access-layer switching in SMEs, government facilities, and educational institutions.
4. Commercial & Public Infrastructure
Supports reliable Ethernet and PoE connectivity in shopping centers, hospitals, and transportation hubs.
5. Industrial Parks & Buildings
Works as an aggregation PoE switch for factories, warehouses, and large commercial complexes.
Overview
The Olycom OM022624-PSE-GE is a high-density Gigabit PoE Ethernet switch designed for large-scale power and data aggregation at the network edge and access layer.
Equipped with 24 Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit SFP fiber uplinks, it delivers reliable connectivity and centralized PoE power for demanding deployments such as IP surveillance, wireless networks, and enterprise infrastructure.
With a high total PoE power budget up to 450W, built-in power supply, and fanless quiet design, the OM022624-PSE-GE provides stable operation and simplified installation. Its robust switching performance and extended transmission capability make it a dependable choice for commercial, campus, and light-industrial environments.
Ordering Information
|
OM022624-PSE-GE
|
PSE/PoE network switch, 10/100/1000Mbps, 10UTP , 8UTP with POE, 48VDC, 100m
|
|
OM022624-PSE-FE/SC20D
|
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 24 UTP, 48VDC, SMF, dual fiber, 20Km, SC
|
|
OM022624-PSE-FE/SC40D
|
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 24 UTP, 48VDC, SMF, dual fiber, 40Km, SC
|
|
OM022624-PSE-FE/SC60D
|
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 24 UTP, 48VDC, SMF, dual fiber, 60Km, SC
|
|
OM022624-PSE-FE/SC80D
|
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 24 UTP, 48VDC, SMF, dual fiber, 80Km, SC
|
|
OM022624-PSE-FE/SC20S
|
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 24 UTP, 48VDC, SMF, single fiber, 20Km, SC
|
FAQ
Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.
How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.
