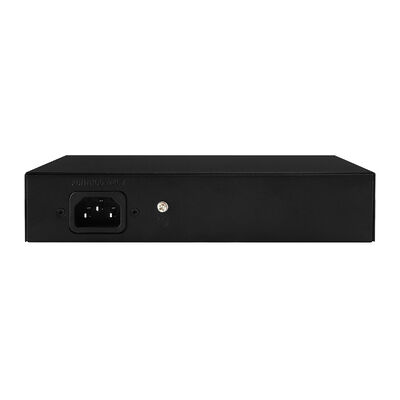

Olycom 8 Port 1G Fiber Optic PoE Network Switch
Specification of CCTV PoE Switch
|
Power
|
Power Adapter Voltage
|
AC 110V-240V
|
|
Consumption
|
120W/150W
|
|
Network Connector
|
Network Port
|
PoE Ethernet Port
|
1~8 Port : 10/ 100/1000Mbps
|
|
Ethernet port
|
Uplink Port : 10/ 100/1000Mbps
|
|
Fiber Port
|
Uplink Port : 1000M SFP
|
|
Transmission Distance
|
1~8 Port :
100/1000Mbps:0~100m;
|
|
Uplink Port : 0 ~ 100m
|
|
SFP: depend on the SFP transceiver (20km-120km)
|
|
Transmission Medium
|
Cat5/5e/6 standard network cable
|
|
Network Switch
|
Network Standard
|
IEEE802.3/802.3u,
IEEE802.3x,
IEEE802.ab
|
|
Switching Capacity
|
24Gbps
|
|
Packet Buffer Memory
|
1Mbits
|
|
Throughput
|
17.856Mpps
|
|
MAC Table
|
2K
|
|
Packet Forwarding rate
|
10Mbps:14880pps/port
100Mbps: 148800pps/port
1000Mbps: 148800pps/port
|
|
Power Over Ethernet
|
PoE Standard
|
IEEE 802.3af/at
|
|
PoE Power Supply
|
12 45 + ,36 78- , 8 core power supply
|
|
PoE Power
|
af=15.4W,at=30W for each port
|
|
RJ45 port
|
Port Function
|
Power priority mechanism,
fast and forward,
MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
|
|
LED Indicator
|
LED Indicator
|
LINK/ACT.100Mbps;
PoE Status Indicator;
Power indicator;Extender
|
|
Environmental
|
Working temperature
|
0C~55C
|
|
Relative Humidity
|
20~95%
|
|
Storage temperature
|
-20C~70C
|
|
Mechanical
|
Dimension (L ×W × H)
|
220mm*140mm*45mm
|
|
Color
|
Black
|
|
Weight
|
1.05kg
|
Introduction to Commercial Network Switch
OLYCOM OM021008-PSE-GE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply.
It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance.
It has 8 Poe-powered RJ45 ports and 2 RJ45 uplink ports.
All of eight RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 150W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network.
It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
Key Features of Fiber Optic Switch
1. High-Density Gigabit PoE Access
Eight 10/100/1000Mbps RJ45 ports support IEEE 802.3af/at, delivering up to 30W per port with a total system power of 150W, ideal for powering IP cameras, VoIP phones, and wireless APs.
2. Flexible Uplink Options
Dual Gigabit RJ45 uplinks and dual 1000Mbps SFP fiber ports enable smooth aggregation and long-distance transmission, supporting fiber links up to tens of kilometers depending on the SFP module.
3. Extended Transmission Capability
Supports Ethernet transmission distances up to 250 meters, making it suitable for large-area deployments without additional extenders.
4. Stable Switching Performance
A store-and-forward architecture with 24Gbps switching capacity ensures smooth data forwarding for video, voice, and data traffic.
5. Network Optimization & Protection
Built-in VLAN support and storm control help segment traffic and maintain network stability in dense PoE deployments.
6. Plug-and-Play Deployment
Auto-negotiation and MDI/MDIX auto-crossover on all ports simplify installation without manual configuration.
7. Compact, Fanless Design
Natural cooling, silent operation, and a small footprint make it suitable for offices, equipment rooms, and wall-mounted installations.
8. Enhanced Reliability
Integrated 4kV lightning protection improves network stability in environments with electrical disturbances.
Application
1. IP Surveillance Systems
Powers and connects multiple IP cameras in buildings, campuses, factories, and residential communities.
2. Wireless Network Deployment
Ideal for supplying PoE power to wireless access points in hotels, schools, and commercial spaces.
3. Enterprise & SMB Networks
Suitable for office networks, SMEs, and community broadband access requiring stable PoE and fiber uplinks.
4. Industrial Parks & Buildings
Works as an access or aggregation switch in industrial parks, factories, and government facilities.
5. Retail, Hospitality & Education
Supports reliable Ethernet and PoE connectivity in retail stores, hotels, internet cafés, and schools.
Ordering Options
|
OM021008-PSE-GE
|
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber +2UTP to 8 UTP, 48VDC, 100m
|
|
OM011008-PSE-FE/SC20D
|
PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 8 UTP, 48VDC, SMF, dual fiber, 20Km, SC
|
|
OM011008-PSE-FE/SC40D
|
PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 8 UTP, 48VDC, SMF, dual fiber, 40Km, SC
|
|
OM011008-PSE-FE/SC60D
|
PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 8 UTP, 48VDC, SMF, dual fiber, 60Km, SC
|
|
OM011008-PSE-FE/SC80D
|
PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 8 UTP, 48VDC, SMF, dual fiber, 80Km, SC
|
|
OM011008-PSE-FE/SC20S
|
PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 8 UTP, 48VDC, SMF, single fiber, 20Km, SC
|
Above listed are most frequently ordered items. Please contact us for other configurations.
