Name: 4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM1X54(2)-PSE-GE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Prodcut Name: Multi-Gigabit Ethernet PoE Switch

Feature: PoE, Unmanaged

PoE Budget: 15.4W/30W, 60W Budget

Power: AC Input(100-240V)

Customization: Yes

Chip: Realtek

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM1X54(2)-PSE-GE

Payment & Shipping Terms

Packaging Details: 1pc in a carton, 0.93kg/pc gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs/month

Gallery

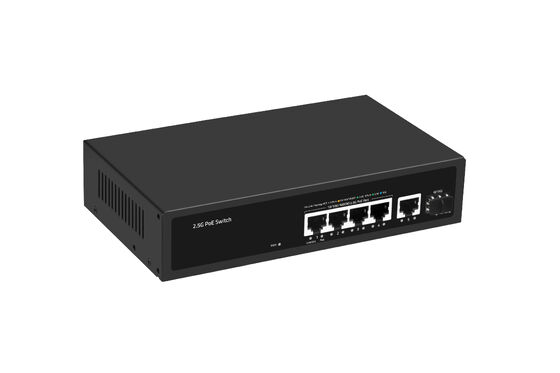

4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless

Product Description

Olycom 2.5G PoE Fiber Optic Switch 4 Port

Overview

The OM1X54(2)-PSE-GE is a compact, high-performance multi-gigabit PoE Ethernet switch designed for modern networks that require higher bandwidth, silent operation, and flexible uplink capacity.

Equipped with 2.5Gbps PoE access ports and a 10Gbps SFP uplink, it enables seamless aggregation of high-speed devices such as Wi-Fi 6 access points, IP cameras, and edge switches while maintaining stable power delivery.

Its fanless, noise-free design, internal power supply, and wide protocol compatibility make it an ideal solution for offices, hotels, campuses, and small to medium enterprise networks.

Specification

Product Name	6 Port Hybrid Rate Ethernet PoE Switch
Port	12.5G RJ45 Port(Support MDI/MDIX, auto-sensing) 4100/1000/2500M PoE port 1*10G SFP Port
Switching Capacity	45Gbps
Throughput	33.48Mpps
MAC Address	4K
Transfer Mode	Store and forward
MTBF	100000 hours
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Gigabit Ethernet) IEEE802.3x (Flow Control)
PoE Protocol	IEEE802.3af(15.4W) IEEE802.3at(30W)
PoE Wiring	1/2(+), 3/6(-)
PoE Output Voltage	DC 44-57V
PoE Budget	60W
Industry Standard	EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge)
Network Medium	10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m)
Optical Medium	multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um
Certification	CE/FCC/RoHS
Working Environment	Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing
Power	Power Input Voltage: AC100-240V Internal AC-DC Converter: 52V1.25A
LED Indicators	PWR(Power indicator) On: power on Off: no power 1-5 Port green light On: 2.5G Link connect normal Off: Link off Flashing: data transmitting 1-5 Port yellow light On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting 6 Port green light/Blue Light Blue on:10G link Green on: 1000/2500M link Off: Link blocked Flashing: Data transmitting 1-4 PoE Light On:PoE is working Off:PoE is not working PoE Max Power Light On: indicates that PoE power is used at 95%<P<100% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% Off: indicates PoE power usage is less than 90%

Key Features

4*100/1000/2500M PoE Port+1*2500M ports+1*10G SFP+ Port
Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard
Ethernet Ports support 10/100/1000/2500M self- adaptive
Support PoE QoS Priority, priority ranges from 1 to 4, enabled by default
Supports automatic port flipping (Auto MDI/MDIX)
Panel indicator monitoring status help failure analysis
Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex；
Support Surge protection: Common mode 4KV; Differential mode 2KV(level B); ESD: Air 12KV, Contact 6KV(level B)

Applications

1. Security & Video Surveillance
Powering and connecting high-resolution IP cameras with stable 2.5G bandwidth and fiber uplink expansion.

2. Enterprise & SMB Networks
Providing fast PoE access for Wi-Fi 6 access points, IP phones, and workstations.

3. Hotels & Commercial Buildings
Silent operation makes it ideal for guest rooms, offices, and front-of-house network installations.

4. Campus & Education Networks
Supporting high-density device connections with simplified cabling and centralized uplinks.

5. Network Upgrade Projects
Enabling smooth migration from Gigabit to multi-gigabit infrastructure without replacing existing devices.

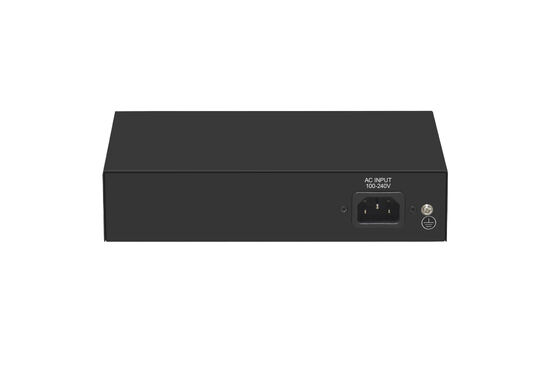

4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless 0

Packing List

1pc switch
1pc power adapter
1pc user manual
1pair brackets

Shipping box information

Product size: 200*118*44mm

Inner box size: 245*190*60mm

Product weight: 0.63Kg

Packing weight: 0.93Kg

Master box size: 520*320*400mm

Packing quantity: 20Pcs

Packing weight: 19.6Kg

Remark

Accessories(optical module, patchcord etc.)are NOT included in the packing box

Please prepare it by yourself or purchase a whole set from us

Power adapter is included in BOTH the packing box AND unit pricing

4 Port 2.5G PoE Switch With 10G SFP Uplink Multi-Gigabit Ethernet AC Input Fanless 1
