Gigabit 30W PoE Splitter DC12V DC24V Output Wall Mounted 100-Meter PoE Distance

1pc
MOQ
Negotiable
Price
Gigabit 30W PoE Splitter DC12V DC24V Output Wall Mounted 100-Meter PoE Distance
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Gigabit Commercial PoE Splitter
Port: PoE In, Data Out, DC Output
Output Voltage: DC12V/DC24V
Speed: 10/100/1000Mbps
Installation: Wall Mount
PoE Distance: 100-meter
Highlight:

Wall Mounted PoE Splitter

,

DC24V PoE Splitter

,

100-Meter PoE Splitter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM-PS1230
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.5kg/pc gross weight
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000Pcs per month
Product Description

Olycom 12V 24V Gigabit 30W PoE Splitter



Key Features of Commercial PoE Splitter



  • Robust metal casing
  • Supports 10/100/1000Mbps transmission speed. Max 100 meters transmission.
  • 1 x PoE in RJ45 port (Max 30W)
  • 1 x data out RJ45 port
  • Support DC terminal and green terminal power output, can be 12V2.5A or 24V1.25A
  • Operating environment temperature: -20 ° ~70 ° c



Gigabit 30W PoE Splitter DC12V DC24V Output Wall Mounted 100-Meter PoE Distance 0



Specification of 24V PoE Splitter



Product Name 10/100/1000Mbps PoE Splitter
Model No. OM-PS1230
Interface

PoE In: 1×RJ45

Data Out: 1×RJ45

DC Out:1×green terminal 1×DC connector(*alternative)
PoE power supply Protocol: IEEE803.2af/at
Power Consumption: 30W
Output power: 12V2.5A/24V1.25A
PoE wiring 1/2 (V+), 3/6 (V-) or 4/5 (V+),7/8 (V-)
Ethernet Port parameter Transmission Distance: 100m
Transmission Speed: 10/100/1000Mbps
Transmission Medium: Cat5/5e/6 Standard Network Cable
Operating temperature -20℃～+70℃
Storage temperature -45℃～+85℃
Humidity 0~95%non-condensing
Dimension 120mm ×105mm ×28mm
Installation Wall Mount
Weight 0.30kg/piece (Net Weight), 0.50 kg/piece (Gross Weight)


Introduction

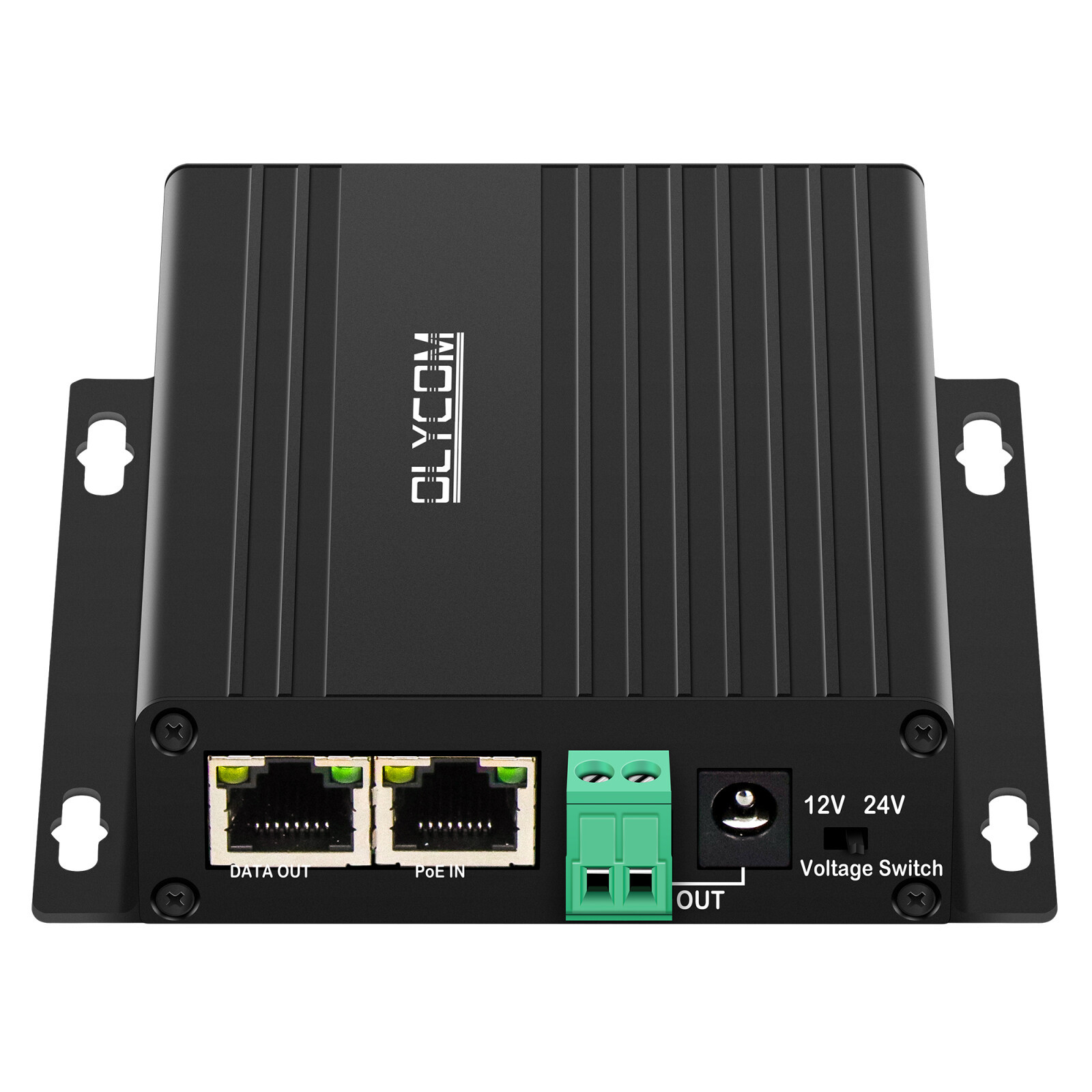

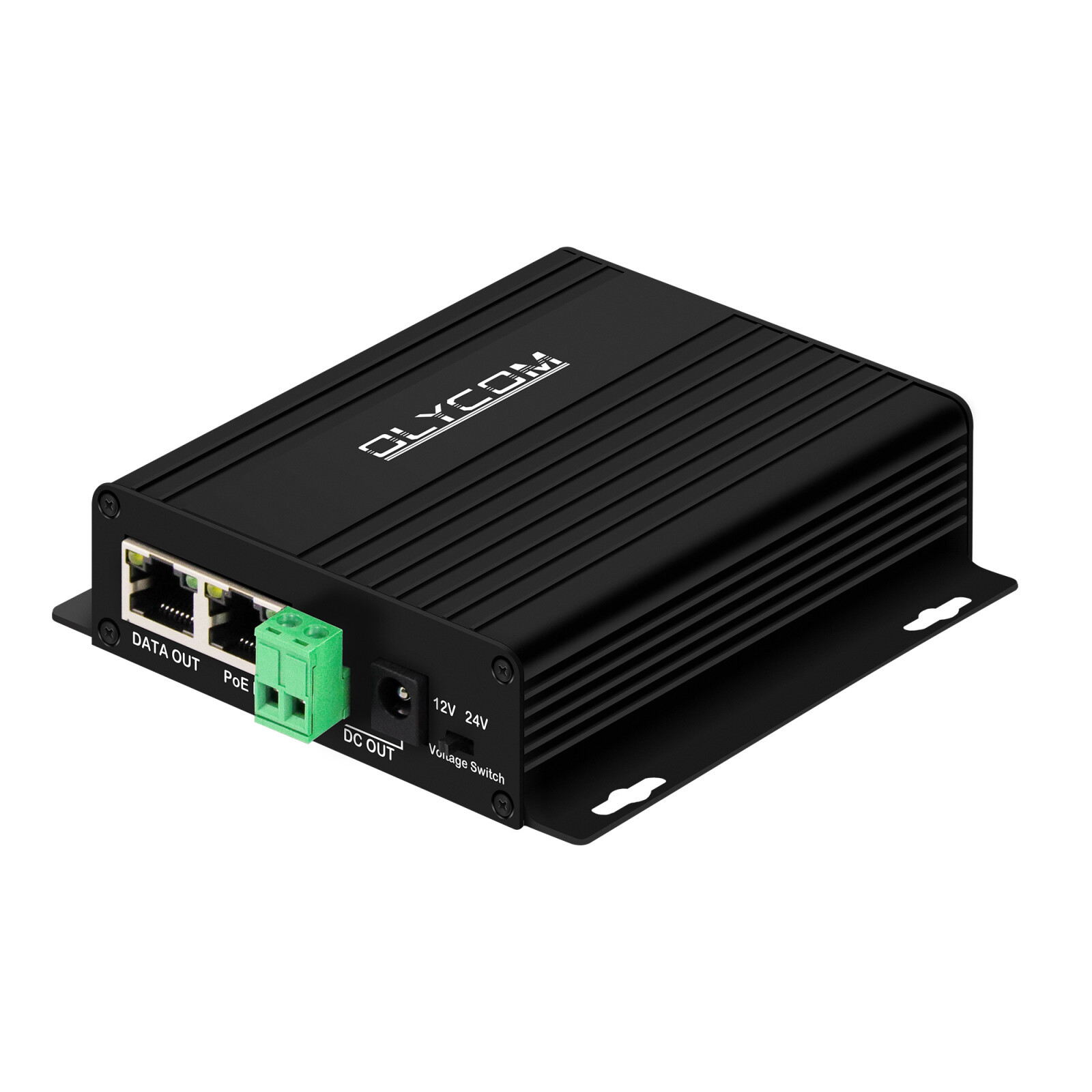

  • Olycom OM-PS1230 is the 10/100/1000Mbps PoE Splitter 12V30W , consisting of one PoE Input Port, one Ethernet output port, and DC terminal and green terminal with DC12V/DC24V Output ports.
  • It is a ideal product to split IEEE802.3af/at PoE to DC power supply and data for Security Cameras, Wireless AP, Access Control Systems.



Gigabit 30W PoE Splitter DC12V DC24V Output Wall Mounted 100-Meter PoE Distance 1
