Name: 24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM6X2424(2)-PSE-GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 30-Port L3 Managed Fiber PoE Switch

Fiber: 6*1G/2.5G/10G Uplink

Copper: 24*100M/1G/2.5G LAN/PoE

PoE Budget: 400W

PoE Standard: 802.3af/802.3at

Chip: Realtek

Highlight:

24 Port 2.5G PoE Switch

L3 Managed PoE Switch

10G Fiber Uplink PoE Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM6X2424(2)-PSE-GW

Payment & Shipping Terms

Packaging Details: 1pc in a carton, 5.14kg/pc gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000Pcs per month

Gallery

24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input

Product Description

24 Port 2.5G L3 Managed PoE Switch

Features of Managed Ethernet Switch

Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3. IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard
L3 management, support DHCP Server, QoS, ACL Control, SNMP V1/V2/V3, IGMP Snooping v1/v2
Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, remote loop back monitoring and control (802.3ah OAM)
Support multiple VLAN divisions, MAC VLAN, protocol VLAN, and private VLAN
Support IP address +MAC address +VLAN+ port binding, DHCP Snooping, IP source and DAI protection
Support IPV4/ IPV6, RIP V1/V2, OSPF V2;
Surge Protection: General 4KV, Differential 2KV(level B), ESD 12KV air, 6KV contact(level B)
Support WEB, TELNET, CLI, SSH, SNMP, RMON management
Support IEEE802.3af(15.4W), IEEE802.3at (30W) and IEEE802.3bt (90W)
Support PoE watchdog, PoE Port power supply, Power configuration and PoE time management

24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input 0

Specification of 24 Port PoE Switch

I/O Interface
Power Input	AC100-240V/50-60Hz
Ethernet	24* 100/1000/2500 Mbps PoE Port (1-4 Port support IEEE802.3bt(90W)) 6* 10G SFP+ Port 1* RJ45 Console Port
Performance
Bandwidth	240Gbps
Packet Forwarding Rate	178.56Mpps
DDR SDRAM	512MByte
Flash Memory	32MByte
Buffer Memory	16Mbit
MAC Address Table	32K
Jumbo Frame	10Kbytes
VLANs	VLAN range 1-4094, with a maximum active VLAN of 4K
Standard
Network Protocol	IEEE802.3 Ethernet MAC IEEE802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000BASE-X Gigabit Ethernet (SFP) IEEE 802.3ae 10G Ethernet IEEE802.3x Flow Control IEEE 802.3az Energy-efficient Ethernet IEEE 802.3ad Standard method for performing link aggregation IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (VLAN Bridge Operation) IEEE 802.1p (VLAN Label) IEEE 802.1X Client/Server Access Control and Authentication
PoE Standard	IEEE802.3af(15.4W), IEEE802.3at(30W) IEEE802.3bt(90W)
Industry Standard	EMS: EN61000-4-2(ESD), EN61000-4-5(Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m)
Fiber Medium	Multi-Mode Fiber: 50/125, 62.5/125, 100/140um Single-Mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certificate	CE, FCC, RoHS
Environment Standard
Working Environment	Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing
Function Indicator
PWR	On: Powered On Off: Powered Off
SYS	On: System On Flashing: System Off or Failed
PoE Power Light	Off: Indicates PoE power usage is less than 90% Flashing: Indicates PoE power usage of 90% ≤ P ≤ 95% On: Indicates that PoE power is used at 95%<P<100%
Warning light	System temperature or voltage abnormal alarm
Port/Link Light	Green ON: 2.5G Link Yellow On: 100/1000M Link Flashing: Link transmission Off: Link not transmission
PoE Light	On: PoE powered on Off: PoE powered off
SFP Port Light	Blue On: 10G Link Green On: 2.5G Link Flashing: Link transmission Off: Link not transmission
Reset button	Short press for less than 5 seconds to restart Long press for more than 5 seconds to reset to factory default
Physical Specification
Structure Size	Product Dimensions: 44028144mm Package Dimensions: 50036585mm Product N.W: 4.37KG Product G.W: 5.14KG
Packing Info	Carton Dimensions: 520445385mm Packing Qantity: 5 Pieces Packing weight: 26.7KG
Power Voltage	Working Voltage: AC100-240V 50/60Hz Power Supply: DC 54V7.69A 12V5A
Power Consumption	PoE: PoE Total Power maximum 400W Power Consumption: maximum 52W
Package List	Switch: 1 set; instruction manual: 1 set; certificate of quality: 1 set; power cord: 1 set; serial cable: 1 set; mounting ear: 1 pair.

Dimension

24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input 1

Software Function List

L3 Function
IPv4	IPv4 VLAN Interface
	IPv4 Static Routes
	ARP
IPv6	IPv6 VLAN Interface
	IPv6 Static Routes
	IPv6 ND
RIP	V1/V2
OSPF	Router-ID
	Authentication
	V2

L2 Function
Port	Port Switch
	Port Description
	Port Speed
	Port Duplex
	Port Flow Control
	Jumbo, Up to 10K
	Support 10G/2.5G (2023.3.2)
	Fiber Module(DDM)
Link Aggregation	Supports load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	Supports LACP
	Up to 8 groups
Storm Control	Boardcast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
	Port Security MAC Address
	Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel (Q-in-Q Tunnel)
	Congurable VID from 1 - 4094; Max. 4K static VLAN groups
	Voice VLAN
	MAC VLAN
	Surveillance VLAN
	Protocol VLAN
	GVRP
MAC Address	Dynamic Address
	Static Address
	Filtering Address
Spnning Tree Protocol	STP/RSTP/MSTP
	BPDU Filter
	BPDU Guard
	Edge Port
LLDP	LLDP
	LLDP MED
Multicast	IGMP Snnoping
	IGMP V1/V2/V3
	Router Port
	Static IGMP group address
	IGMP groups filtering
	Querier
	MLD Snooping
	MVR
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	802.1P Priority
	IP TOS Priority
	IP DSCP Priority
	Supports up to 8 queues per port
	Priority Remarking
PoE
PoE Configuration	PoE Temperature
	PoE Type/Level/Power/Voltage/Current
	PoE Switch
	PoE Watchdog
	PoE power AF/AT adaptation
PoE Schedule
PoE Port Timer Reboot
Services
DHCP	DHCP Server
	IP Pool
	Static Binding
	DHCP Relay
	Option 43
Access Protocol	HTTP
	HTTPS
	Telnet
	SSHv2
	Manager ACL
	Session Timeout
	Password Retry Count
	Silent Time
Security
AAA	RADIUS
	TACACS+
	802.1X
	Base on port/MAC/local/WEB
DHCP Snooping	Global/VLAN
	Option 82
	Circuit ID
IP Source Guard
Dynamic ARP Inspection
DOS
ACL	MAC ACL
	IPv4 ACL
	IPv6 ACL
Diagnostics
Syslog	Logging Message
	Remote Server
Ping
Traceroute
Copper Test
UDLD
Management
Manager Access	Console
	HTTP/HTTPS
	Telnet
	SSH
	SNMP
Manager IP	Static Address
	DHCP Client
	Supports IPv4 and IPv6 address
	Manager VLAN
	DNS
Time Synchronization	SNTP
	Manual Time
SNMP	V1/V2C/V3
	Community
	V3 User
	Group
	Trap Host
SNMP MIB	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2863 Interface MIB
	LLDP
	Private MIB
RMON	Statistics
	History
	Event
	Alarm
User
Firmware	Double Image; Swap between Active and Alternate firmware image.Firmware Upgarde
Configuration	Upload and download
	Upload and download via USB interface
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2

Accessories

SFP Transceiver
OSPL1G05D	1000BASE-SX
OSPL1G06D	1000BASE-SX (1310nm)
OSPL1G20D	1000BASE-LX
OSPL1G40D	1000BASE-EX
OSBL1G20D-35	1000BASE-BX-U (TX 1310 RX1550)
OSBL1G20D-53	1000BASE-BX-D (TX 1550 RX1310)
OSPLXG05D	10GBASE-SR
OSPLXG06D	10GBASE-SR (1310nm)
OSPLXG10D	10GBASE-LR
OSPLXG40D	10GBASE-ER
OSBLXG20D-23	10GBASE-BX-U (TX 1270 RX1330)
OSBLXG20D-32	10GBASE-BX-U (TX 1330 RX1270)

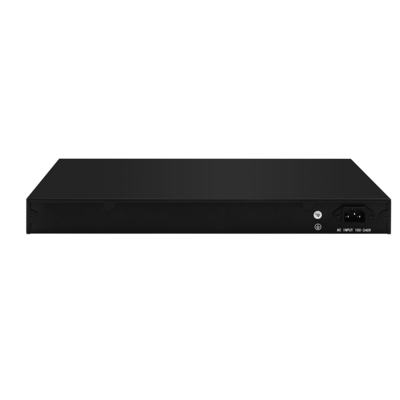

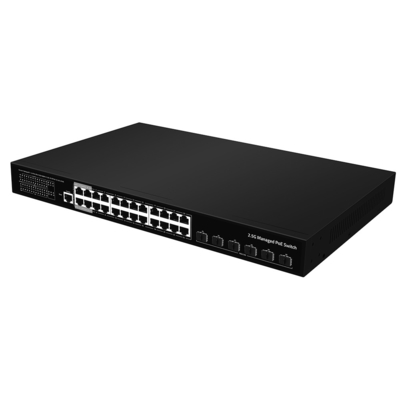

Product Photos

24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input 2

24 Port 2.5G PoE Switch 10G Fiber Uplink L3 Managed Ethernet 400W Budget AC Input 3
