Name: Modbus-TCP Bus Digital IO Module PLC Module Remote I/O System 16DI+16DO(PNP Output)
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM523E-1BL22-TCP
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Modbus-TCP IO Module

Communication Interface: 2*RJ45

Protocol: Modbus-TCP/IP

Package: Netural Packing

Dimensions: 27mm*94mm*114mm

Highlight:

16DI+16DO Digital IO Module

PLC Module Remote I/O System

Modbus-TCP bus Digital IO Module

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE RoHS FCC

Model Number: OM523E-1BL22-TCP

Payment & Shipping Terms

Packaging Details: 1pc in a box

Delivery Time: 3~5 working days

Payment Terms: T/T, PayPal

Supply Ability: 5000pcs/month

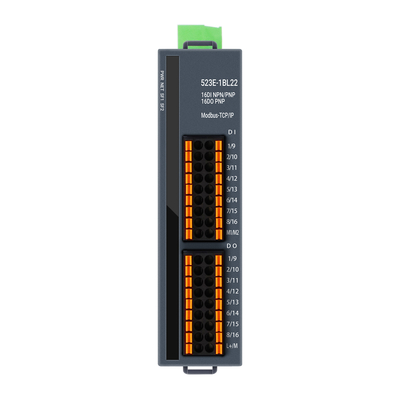

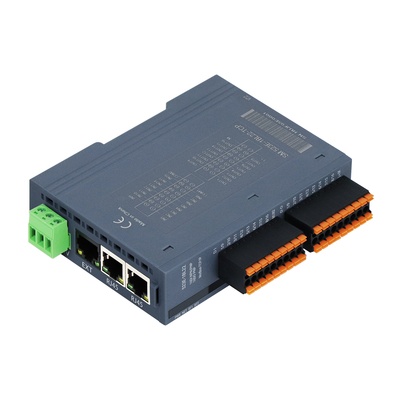

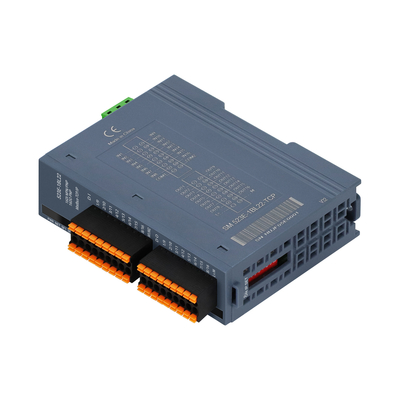

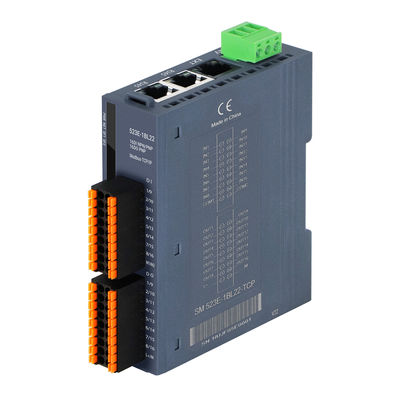

Gallery

Modbus-TCP Bus Digital IO Module PLC Module Remote I/O System 16DI+16DO(PNP Output)

Product Description

Modbus-TCP bus digital IO Module PLC Module Remote I/O System

16DI+16DO(PNP output)

Product Features of PAL I/O System

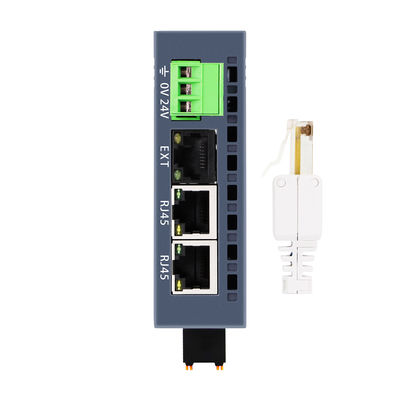

3 RJ45 interfaces
Bus, power isolation technology, reliability
Standalone as Modbus-TCP/IP slave station

Specification of Modbus-TCP/IP extensible coupler

Model	OM523E distributed scalable coupler
Technical Specifications
Operating Voltage	24VDC (18VDC~28VDC)
Operating Current Consumption	Different product models vary, please refer to the product manual for details.
Power Protection	Anti-reverse connection protection, surge absorption
Communication Interface	2*RJ45
Expansion Module interface	1*RJ45
Power Terminal Type	Plug-in connectors, screw terminals
Signal Terminal Type	Plug-in connector, direct plug-in PUSH-IN connection port
Display Instructions	Power indicator light, NET green indicator light, SF red indicator light,IO signal green indicator light
Protocol	Modbus-TCP/IP
Master-Slave Category	Independent slave device
Ontology IO Point	Yes, see ordering data for details
Overcurrent protection Threshold	1.5A,5ms
IO Response Time	Minimum 5ms
Expansion Capabilities	Supports expansion of 16 EM500E-EM modules
Cable Length (shielded)	Maximum 500m
Cable Length (Unshielded)	The longest input point is 300m, the longest output point is 150m
Slave Settings
IP Settings	Set by DIP switch or web page
Maximum Number of Stations per Segment	255 (The specific number of supported stations is determined by the main station)
Working Environment
Working Temperature	-20~60℃
Working Humidity	5%~90% (no condensing)
Protection Level	IP20
Dimensions (LWH)	27mm104mm114mm

Packing

Modbus-TCP Bus Digital IO Module PLC Module Remote I/O System 16DI+16DO(PNP Output) 0

Ordering Details

Specification	Product No.
OM521E vertical internal bus distributed expandable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (blackRJ45 port network cable cascading, Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters), and 16 modules can be expanded.24VDC power supply, with 8-bit dial setting station IP address, the body comes with 32DI (common cathode/common anode input), IP20Protection level, supports DN35 rail installation	OM521E-1BL22-TCP
OM522E vertical internal bus distributed scalable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters) and can be expanded to 16 modules.24VDC power supply, with 8-digit dial code to set the station IP address, the body comes with 32DO (PNP output), IP20Protection level, supports DN35 rail installation	OM522E-1BL22-TCP
OM523E vertical internal bus distributed expandable coupler, Modbus-TCP bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascading, the length between Category 5e network cable module length (limited to 20 meters), total extension cable total (limited to 150 meters), and 16 modules can be expanded.24VDC power supply, with 8-bit dial setting station IP address, the body comes with 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation	OM523E-1BL22-TCP

FAQ:

1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
