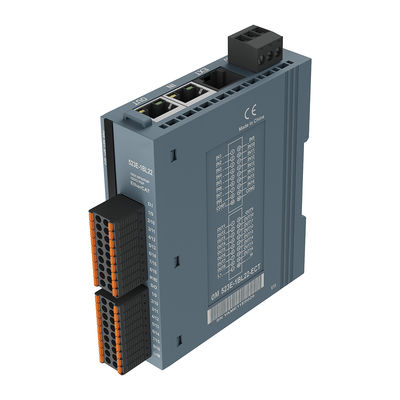

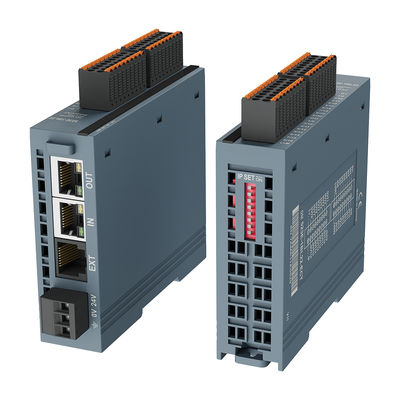

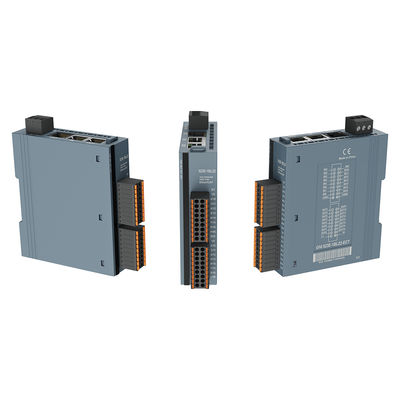

OM52*E EtherCAT bus Coupler PLC IO module with 16DI+16DO NPN/PNP IP20

Ordering data

Model

OM52xE Distributed Scalable Couplers

Technical Specifications

Operating voltage

24VDC (allowable voltage range 18VDC~28VDC)

Working Current Consumption

For details, please refer to the product manual for different product models.

Power Protection

Anti-reverse connection protection, surge absorption

Bus Communication Interface

2*RJ45

Extension module interface

1*RJ45

Power terminal type

Plug-in connector, screw terminal

Signal terminal type

Plug-in connectors, straight-through push-in terminals, or MIL horn sockets

Indicator

Power indicator, NET green indicator,

SF: red indicator; IO signal: green indicator

Support Protocol

EtherCAT

Master-Slave Category

Independent slave device

Ontology IO point

Yes, see ordering data for details

Overcurrent protection threshold

1.5A,5ms

IO response time

Minimum 500us

Scalability

16 EM500E-EM modules

Extended connection distance

Total  length: 150 meters, maximum length between modules: 20 meters

Cable length (shielded)

Up to 500m

Cable length (unshielded)

The maximum input distance is 300m, and the maximum output distance is 150m

Slave Settings

Address settings

Configured by DIP switch or master station

Maximum number of stations per section

255 (the specific number of supported stations is determined by the master station)

Work Environment

Working temperature

-20~60℃

Working environment humidity

5%~90% (no condensation)

Specification

Order Number

OM523E vertical internal bus distributed scalable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable 16 modules, 24VDC power supply, with 8-digit DIP switch to set the station ID address, the main body has 16DI (common cathode/common anode input), 16DO (NPN output), IP20 protection level, DN35 installation.

OM 523E-1NL22-ECT

OM523E vertical internal bus distributed scalable coupler, EtherCAT bus, 2 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with 8-digit DIP switch to set the station ID address, the main body has 16DI (common cathode/common anode input), 16DO (NPN output), supports DN35 installation, MIL horn socket

OM 523E-1NL22-ECT-MIL

OM523E vertical internal bus distributed scalable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with 8-bit code to set the station ID address, the main body has 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level, DN35 installation

OM 523E-1BL22-ECT

OM524E vertical internal bus distributed scalable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port cable cascade, Category 5e cable module length limit of 20 meters, extension cable total limit of 150 meters), expandable to 16 modules, 24VDC power supply, with 8-digit DIP switch to set the station ID address, the main body has 16DI (common cathode/common anode input), 16DIO (NPN input/NPN output configurable, 2-way group configuration), IP20 protection level,  DN35 installation

OM 524E-2NL22-ECT
