8 Port Full Gigabit PoE Network Switch Support Vlan PoE Extension 120W Budget

1pc
MOQ
negotiable
Price
8 Port Full Gigabit PoE Network Switch Support Vlan PoE Extension 120W Budget
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 10Port Full Gigabit 10/100/1000M PoE Fiber Switch
Power: AC INPUT (100-240V)
Chipset Solution: 8850DH
Bandwidth: 20Gbps
MAC Address: 2K
Working Temperature: -10~50°C
Highlight:

8 Port PoE Network Switch

,

120W Budget PoE Network Switch

,

Vlan PoE Network Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM01008-PSE-GE
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 1Kg G.W.
Delivery Time: 3~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

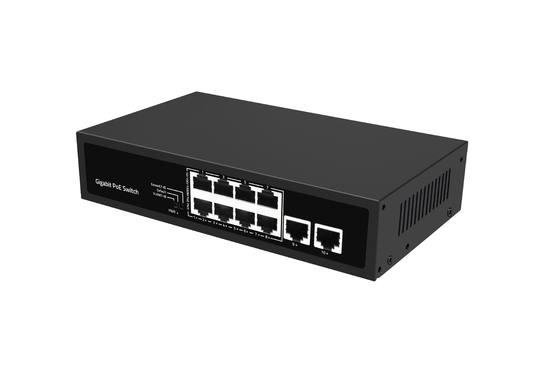

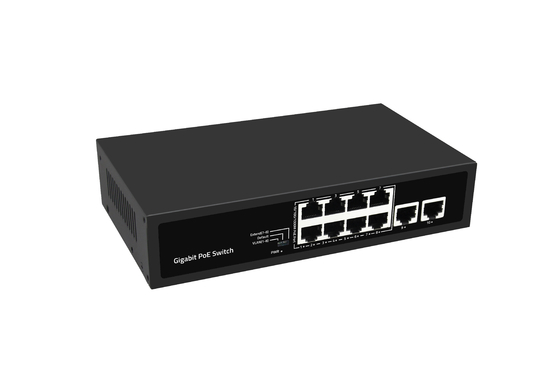

10 Port Full Gigabit 10/100/1000M PoE Fiber Switch



Key Features of PoE Fiber Switch



  • 8*10/100/1000M PoE Ports +2*1000M Ethernet Ports
  • Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE802.3x standard
  • Ethernet Ports support 10/100/1000M self-adaptive
  • The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
  • POE priority is supported, from port 1 to port 8, which is enabled by default
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
  • Zero configuration feature, automatically supplied to adaptive equipment
  • Panel indicator monitoring status and help failure analysis
  • With DIP switch, support VLAN, Default and Extend modes



Specification of PoE Fiber Switch



I/O Interface

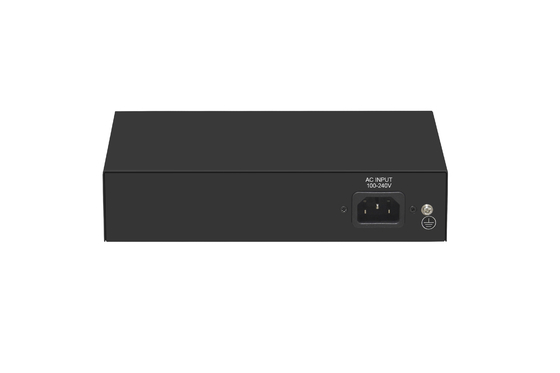

Power AC INPUT (100-240V)
Ethernet

8* Gigabit PoE Ethernet Ports

2* Gigabit Uplink Ethernet Port

Chipset Solution 8850DH
Performance
Bandwidth 20Gbps
Pack forward rate 14.88Mpps
Memory cache 448Kbit
MAC address 2K
Jumbo Frame 2048bytes
Transfer mode Store and forward
MTBF 100000 Hours
Standard
Network Protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

PoE Protocol



IEEE802.3af(15.4W)

IEEE802.3at(30W)

Network Medium



10Base-T : Cat3, 4, 5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Certificate
Safety Certificate CE, FCC, RoHS
Environment Standard
Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing



Function Indicator
Indicator PWR (Power),1-10 Green Light (Link&Data)
PWR

On: Powered on

Off: Powered off

1-10 Green Light (Link&Data)

On: Link normal

Off: Link blocked

Flashing: Data transmitting

DIP Mode

VLAN:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface.

Default:Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled.

Extend:Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M.

Physical Structure
Structure Size

Product size: 200*118*44mm

Package size: 245*190*60mm

Net weight: 0.69KG (96W) /0.71KG (120W)

Gross weight: 0.97KG (96W) /0.99KG (120W)

Packing Info

Outer box size: 520*320*400mm

Packing quantity: 20 sets

Packing weight: 20.4KG (96W) /20.8KG (120W)

Power Voltage

Input voltage: AC100-240V

Power supply: 52V1.85A (96W) / 52V2.3A (120W)

power



Product power: maximum 10W / maximum 10W

POE power: maximum 80W / maximum 110W

Packing List Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC



Description of PoE Fiber Switch



   10 Port Gigabit Ethernet PoE Switch, provide seamless connections to 10/100/1000M Ethernet, PoE is an Ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data. Power over Ethernet (PoE) technology transmits data signals for IP-based terminals (such as IP phones, APs, and network cameras) and provides DC power for the devices. These devices that receive DC power are called receiving devices.

   With simple installation and maintenance methods and rich service functions, it helps users build high-performance networks that are secure and reliable. It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
