Olycom 4 Port Gigabit PoE Extender With 4 Port PoE Switch 60W Budget 100-Meter Distance

1pc
MOQ
negotiable
Price
Olycom 4 Port Gigabit PoE Extender With 4 Port PoE Switch 60W Budget 100-Meter Distance
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 4 Port Gigabit PoE Extender Switch
PoE Budget: 802.3bt 60W
PoE Distance: 100-meter
DC Input: 48V
PoE Protocol: 802.3af/at
Application: CCTV Cameras
Highlight:

4 Port Gigabit PoE Extender

,

60W Budget Gigabit PoE Extender

,

100-Meter Distance Gigabit PoE Extender

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: PSE-PD104 V1
Document: IM-WP054BGE.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 0.5kg G.W.
Delivery Time: 4~7 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

4*10/100/1000M Unmanaged 802.3bt 60W PoE Extender



Overview of 60W PoE Switch



PSE-PD104 is an unmanaged PoE extender with below features

  • It has 4*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port.
  • Port 1-4 can support IEEE802.3af/at PoE standard, single-port PoE power up to 30W.
  • The maximum PoE output power of the PoE extender is 60W.
  • The uplink RJ45 port input power must be greater than 60W to meet the POE power supply requirements of port 1-4.
  • As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
  • It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through a network cable, to meet the network environment that requires high-density PoE power supply, and to reduce the bandwidth to solve the twisted pair POE transmission within 200 meters.
  • It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to form a cost-effective network.



Key Features of Gigabit PoE Extender



10/100/1000M access, Uplink RJ45 port



5*10/100/1000Base-T RJ45 ports to meeting the power supply and transmission requirements of the scene within 200 meters.

Support non-blocking wire-speed forwarding.

Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.



Intelligent PoE power supply



4* 10/100/1000Base-T RJ45 ports can support POE power supply to meeting the needs of PoE power supply in various security scenarios.

IEEE 802.3af/at PoE standard, without damaging non-PoE devices.



Stable and reliable

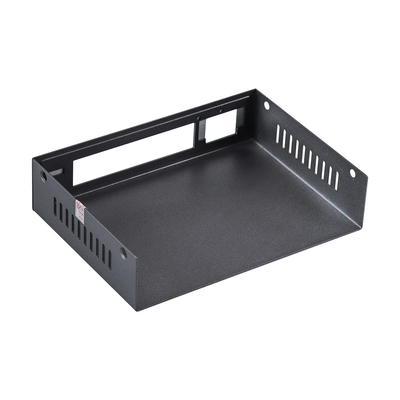

Low power consumption, fan-less silent , galvanized steel metal casing

CE, FCC, RoHS.

Plug and play, no configuration, easy to use and maintain.

The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.



Technical Parameters



Model PSE-PD104



Fixed Port

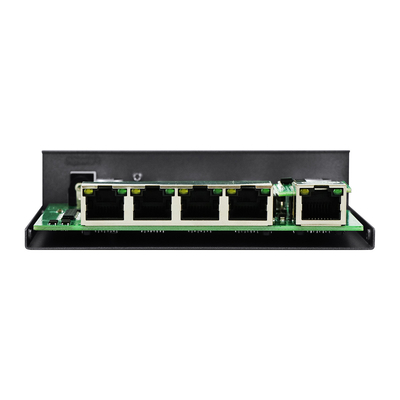

4*10/100/1000Base-T PoE ports(Data/Power)



1*10/100/1000Base-T uplink PD power port(Data/Power)

PoE Port Port 1 to port 4

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3ab 1000Base-T

IEEE802.3u 100Base-TX, IEEE802.3x

PoE Standard IEEE802.3af/at

Ethernet Port

10/100/1000Base-T(X),Auto-sensing,Full/half duplex MDI/MDI-X

self-adaption

Forwarding Mode Store and Forward
Switching Capacity 10Gbps

Forwarding

Rate@64byte



7.4Mbps

MAC 2K
Buffer Memory 2M



Twisted Pair

Transmission

10BASE-T:Cat3,4,5 UTP(≤100 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-TX:Cat5e or later UTP(≤100 meter)

Power Supply Pin Default: 1/2(+),3/6(-);Optional: 4/5(+),7/8(-)
Max Power Per Port 30W
Total PWR 60W
Power Consumption Standby:<5W; Full Load:<60W

LED

Power:PWR( green), Network : Link (yellow) PoE :PoE (green)

Multi-functional switch: EXTEND(green)

Operation TEMP

Humidity

-20~+55°C; 5%~90% RH Non condensing

Storage TEMP

Humidity



-40~+80°C; 5%~90% RH Non condensing

Dimension(L*W*H) 118x89x28mm
Net /Gross Weight <0.4kg / <0.5kg
Installation Desktop ,wall mounted,
Port lightning Port lightning protection : 4KV 8/20us;

Protection level

Protection level: IP30
Certification CE mark, commercial,CE/LVD EN60950,FCC Part 15 Class B,RoHS
Warranty 1 year



Ordering Information



Model Description

PSE-PD104

Unmanaged PoE extender with 4*10/100/1000M PoE ports and 1*10/100/1000M uplink RJ45 port. Port 1- 4 can support IEEE802.3af/at

PoE standard. Uplink RJ45 port can support 60W POE input.



Packing List



PACKING LIST

CONTENT QTY UNIT
4-port gigabit PoE extender 1 SET
Mounting Kits 1 SET
User Guide 1 PC
Warranty Card 1 PC
