24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch

1 pc
MOQ
Negotiable
Price
24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 24port POE Switch
Application: Telecommunication And Security Field
PoE Ports: 24 Ports Support Poe
Consumption: Optional 300W Or 450W
Power Adapter Voltage: AC 110V-240V
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM022624-PSE-FE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

24 Port Network 48V Active PoE Switch 450W

Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch



Introduction



OLYCOM OM022624-PSE-GE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 24 Poe-powered RJ45 ports and 2 RJ45 uplink ports and 2 independent SFP expansion slot. All of twenty-four RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 300W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.

With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.

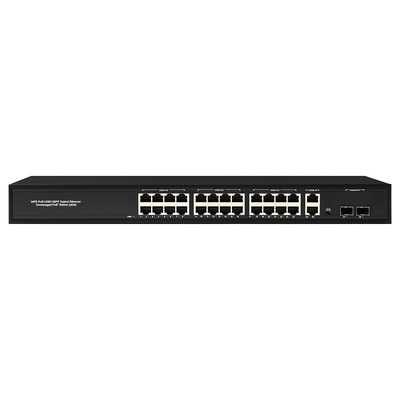

24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 0

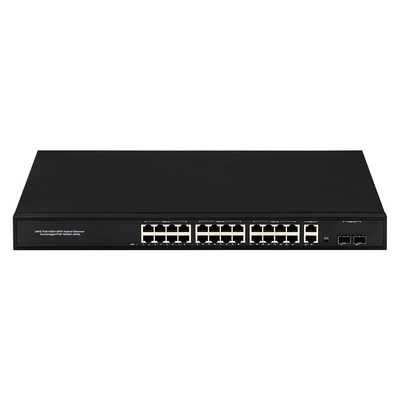

24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 1

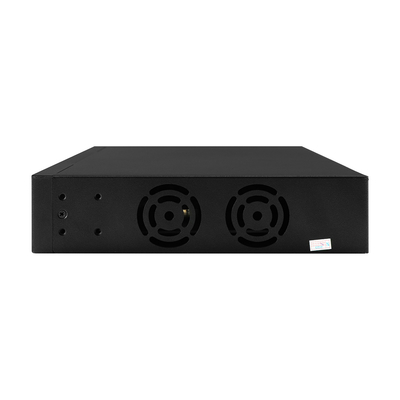

24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 2

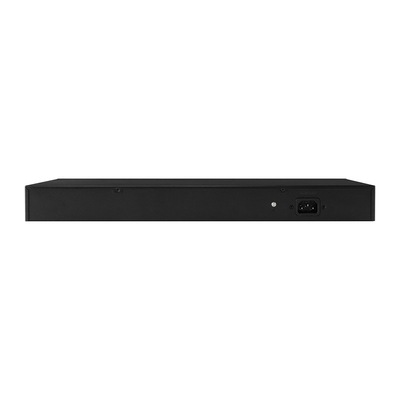

24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 3

24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 4





Key Features



  • 24*10/ 100/1000Mbps PoE ports, 2*10/ 100/1000Mbps network ports, 2*1000M SFP fiber port
  • Support IEEE802.3af/at
  • Support restrain network storm, VLAN function
  • Support Max Transmission distance up to 250m
  • All port supported by MDI/ MDIX auto flip andself-negotiation
  • Built-in power supply
  • Maximum power of single PoE port : 30 W
  • Whole machine power: 450W
  • Adopts store-and-forward architecture
  • Fan-less, natural cooling, small,compact and quiet design,suitable for desktop or wall
  • Support lightning protection 4kV



Specification of 24 port POE Switch



Power Power Adapter Voltage AC 110V-240V
Consumption Optional 300W or 450W





Network Connector

Network Port PoE Ethernet Port 1~24Port : 10/ 100/1000Mbps
Ethernet port Uplink Port : 10/ 100/1000Mbps
Fiber Port Uplink Port : 2*1000Mbps SFP
Transmission Distance

1~24Port :

100/1000Mbps: 0~100m;

Uplink Port : 0 ~ 100m
SFP: depend on the SFP transceiver (20km-120km)
Transmission Medium Cat5/5e/6 standard network cable







Network Switch

Network Standard

IEEE802.3/802.3u,

IEEE802.3x,

IEEE802.ab

Switching Capacity 56Gbps
Packet Buffer Memory 1Mbits
Throughput 41.664Mpps
MAC Table 2K
Packet Forwarding rate

10Mbps:14880pps/port

100Mbps: 148800pps/port

1000Mbps: 1488000pps/port

Power Over Ethernet PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W,at=30W for each port
RJ45 port Port Function

Power priority mechanism,

fast and forward,

MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode

LED Indicator LED Indicator

LINK/ACT.100Mbps;

PoE Status Indicator;

Power indicator;Extender

Environmental Working temperature 0C~55C
Relative Humidity 20~95%
Storage temperature -20C~70C
Mechanical Dimension (L ×W × H) 440mm*285mm*55mm
Color Black
Weight 4.2kg








Application



24 Port Network 48V Active PoE Switch 450W Standard AF/AT with 2 RJ45 Uplink Port Ethernet sfp fiber Switch 5









FAQ

1 Q: What is your lead time?

A:It usually takes 3~5 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
