OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power

1 pc
MOQ
Negotiable
Price
OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 16 Port POE Switch
Application: Telecommunication And Security Field
PoE Ports: 16 Ports Support Poe
Brand: Olycom/customized/no Brand
Function: POE, Stackable, VLAN Support
High Light:

16 Port PoE Switch

,

10/100mbps PoE Switch

,

300W PoE Switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM011816-PSE-FE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

OEM/ODM 16 Port 10/100mbps PoE Switch

with Gigabit Uplink 1SFP Port, 300W Built-in Power



Introduction



OLYCOM OM011816-PSE-FE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 16 Poe-powered RJ45 ports and 2 RJ45 uplink ports and 1 independent SFP expansion slot. All of sixteen RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 300W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.



With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.

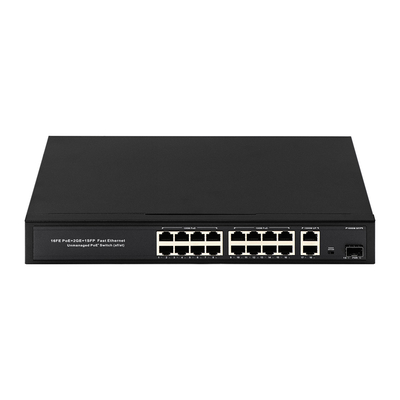

OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power 0

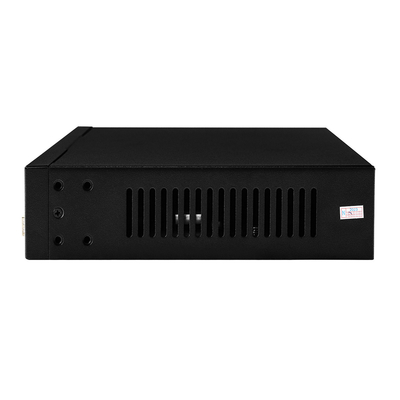

OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power 1

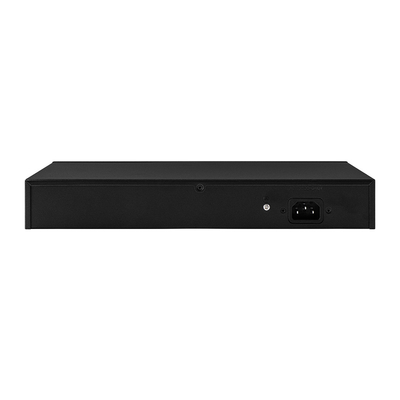

OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power 2

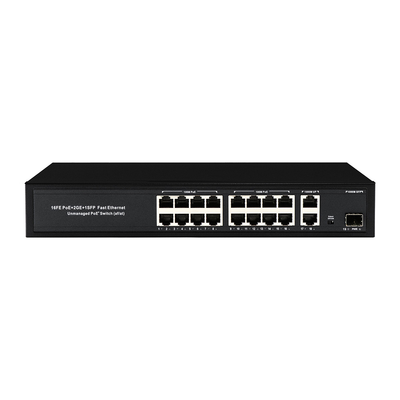

OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power 3





Key Features



  • 16*10/ 100Mbps PoE ports, 2*10/ 100/1000Mbps network ports, 1*1000M SFP fiber port
  • Support IEEE802.3af/at
  • Support restrain network storm, VLAN function
  • Support Max Transmission distance up to 250m
  • All port supported by MDI/ MDIX auto flip and self-negotiation
  • Built-in power supply
  • Maximum power of single PoE port : 30 W
  • Whole machine power: 300W
  • Adopts store-and-forward architecture
  • Fan-less, natural cooling, small,compact and quiet design,suitable for desktop or wall
  • Support lightning protection 4kV



Specification of 16 port POE Switch



Power Power Adapter Voltage AC 110V-240V
Consumption 300W(52V,2.3A)





Network Connector

Network Port PoE Ethernet Port 1~16 Port : 10/ 100Mbps
Ethernet port Uplink Port : 10/ 100/1000Mbps
Fiber Port Uplink Port : 1000M SFP
Transmission Distance

1~16 Port :

100Mbps:0~100m;

10Mbps: 0~250m;

Uplink Port : 0 ~ 100m
SFP: depend on the SFP transceiver (20km-120km)
Transmission Medium Cat5/5e/6 standard network cable







Network Switch

Network Standard

IEEE802.3/802.3u,

IEEE802.3x,

IEEE802.ab

Switching Capacity 9.2Gbps
Packet Buffer Memory 1Mbits
Throughput 6.8448Mpps
MAC Table 2K
Packet Forwarding rate

10Mbps:14880pps/port

100Mbps: 148800pps/port

1000Mbps: 1488000pps/port

Power Over Ethernet PoE Standard IEEE 802.3af/at
PoE Power Supply End-Span(1/2+;3/6-)
PoE Power af=15.4W,at=30W for each port
RJ45 port Port Function

Power priority mechanism,

fast and forward,

MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode

LED Indicator LED Indicator

LINK/ACT.100Mbps;

PoE Status Indicator;

Power indicator;Extender

Environmental Working temperature 0C~55C
Relative Humidity 20~95%
Storage temperature -20C~70C
Mechanical Dimension (L ×W × H) 440mm*285mm*55mm
Color Black
Weight 4.2kg







Application



OEM/ODM 16 Port 10/100mbps PoE Switch With Gigabit Uplink 1SFP Port 300W Built-in Power 4









Production Steps

  • Welding: Weld the necessary components
  • Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  • Assembling: Builds up components of a product, like panels, screws, PCB boards.
  • Testing: To make sure the product is basically working fine after assembling
  • Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  • Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  • QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
  • When all above is done, the product will go to market.
