8 Port Poe Switch With 90W Managed 2*2.5Gb SFP Ports+2 Combo Ports POE Fiber Switch

1 pc
MOQ
Negotiable
Price
8 Port Poe Switch With 90W Managed 2*2.5Gb SFP Ports+2 Combo Ports POE Fiber Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port POE 90w Managed Switch
Power Adapter Voltage: AC 110V-240V
Data Rate: 10/100/1000Mbps
Fiber Ports: 2*2.5G SFP Ports
PoE Output Power: 15.4W/30W/90W
High Light:

Managed 8 Port Poe Switch

,

90W 8 Port Poe Switch

,

2 Combo Ports POE Fiber Switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM-FPH21008GW
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

8 Port Poe Switch with 90W managed 2*2.5Gb SFP ports+2 combo ports POE fiber switch



Introduction



OM-FPH21008GW is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.OM-FPH21008GW provides IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 720W ,This enables it to provide power for the most demanding PoE applications for PTz domes,LED lighting and wireless products. It is compliant to G.8032 ERPS V1/V2 Ring protocol.





Key Features



8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-FX SFP Fiber

▪ 2 Copper/MSA Fiber Combo ports ( Port 9, 10, and FX1, FX2)

▪ Supports negative RS-232 console port

▪ Support POE af/at/bt for port 1-8, each network port can reach 90W max. Total POE budget is 720W.

▪ Cable diagnostic, Measuring cable normal or broken point distance

▪  Input 100-240VAC

▪ STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling

▪ Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption

▪ DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82

▪ QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ

▪ IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR

▪ Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation

▪ IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2

▪ Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2

▪ Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure

▪ Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port

▪ RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, IEEE802.1ab LLDP

▪ Supports IPv6 Telnet server /ICMP v6

▪ CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management





Specification of Industrial 6 port POE Switch

Product Name 10/100/1000Mbps Managed POE Fiber Switch (2F+10TP)
Model No. OM-FPH21008GW
Port

2x 100/1000/2500Base-FX SFP Fiber

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard

IEEE 802.3: 10Base-T 10Mbit/s Ethernet

IEEE 802.3u: 100Base-TX, 100Base-FX, Fast Ethernet

IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic

IEEE 802.1d: STP (Spanning Tree Protocol)

IEEE 802.1s: 100Base-TX, 100Base-FX, Fast Ethernet

IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol )

ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching)

IEEE 802.1Q: Virtual LANs (VLAN)

IEEE 802.1X: Port based and MAC based Network, Access Control, Authentication

IEEE802.3ac: Max frame size extended to 9600Bytes.

IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol)

IEEE 802.3x: Flow control for Full Duplex

IEEE 802.1ad: Stacked VLANs

IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization

IEEE 802.1ab: Link Layer Discovery Protocol (LLDP)

IEEE 802.1az: EEE (Energy Efficient Ethernet)

IEEE802.3af: 15.4W

IEEE802.3at: 30W

IEEE802.3bt: 90W

VLAND ID 4096 IEEE802.1Q VLAN VID
Switch Architecture Back-plane (Switching Fabric): 21Gbps Full wire-speed
Data Processing Store and Forward
Flow Control IEEE 802.3x for full duplex mode Back pressure for half duplex mode

Network

Connector

8x 10/100/1000Base-TX RJ-45 with POE AF/AT/BT

Auto MDI/MDI-X function,

Console RS-232 (RJ-45)
Network Cable UTP/STP above Cat. 5e cable
Protocols CSMA/CD

Reverse Polarity

Overload Current

Protection

Supported

Supported

CPU Watch Dog Supported
Power Supply Input AC100-240VAC (Internal Power supply)

Power

Consumption

3.5W(no-load)



LED

Per unit: Power 1 (Red), SYS (Red), Alarm

(Red) PoE(Green)

RJ-45 port: Link/Active (Green) Speed(Yellow)

SFP Fiber port: Link/Active (Green)

Jumbo Frame 9.6KB
IEEE802.3ac

Max frame size extended to 1522Bytes (allow Q-tag

in packet)

MAC Address Table 8K
Warning Message System Syslog, alarm relay

Alarm Relay

Contact

Relay outputs with current carrying capacity of 1 A

@30VDC

Operating Temperature -10 ~ 55°C
Operating Humidity 0% to 95% (Non-condensing)
Storage Temperature -40 ~ 85°C
Dimensions 288 x 270 x 45.5mm
Weight 0.85kg
Installation Mounting Rack-mounted
FCC Emmission

CE

FCC Part 15 Subpart B Class B 2010

EN50121

EN 5502:2006+A1:2007

EN61000-3

EN55035

EN55032

EN50155

2:2006+A1:2009+A2:2009

Safety EN62368
6KV Surge Protection Supported for UTP and Fiber port
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Software Specifications
Topology
VLAN

IEEE 802.1q VLAN,up to 4094 802.1Q VLAN VID

IEEE 802.1q VLAN,up to 4094 Groups

IEEE 802.1ad

MAC-based VLAN,up to 256 entries

IP Subnet-based VLAN, up to 128 entries

Protocol-based VLAN(Ethernt, SNAP, LLC), up to 128 entries

VLAN Translation, up to 256 entries

GVRP (GARP VLAN Registration Protocal)

MVR ( Multicast VLAN Registration)

Link Aggregation

(Port Trunk)

Static (Hash with SA, DA, IP, TCP/UDP port), up to 5 trunk group

Dynamic (IEEE 802.3ad LACP), up to 5 trunk group

Spanning Tree

IEEE802.1d STP

IEEE802.1w RSTP

IEEE802.1s MSTP

POE/POE+



IEEE802.3at 30W

IEEE802.3af 15.4W

IEEE802.3bt 90W

Loop Protection Supported

ITU-T G.8032 / Y.1344 ERPS (Ethernet Ring

Protection)

Recovery time <50ms

Single Ring, Sub-Ring, Multiple ring topology network

QoS Features
Class of Service IEEE802.1p 8 active priorities queues for per port
Traffic Classification QoS

IEEE802.1p based CoS

IP Precedence based CoS

IP DSCP based CoS

Traffic Classification QoS

QCL(QoS Control List): Frame Type, Source/

Destination MAC, VLAN ID, PCP, DEI

QCE(QoS Control Entry): Protocol, Source IP, IP

Fragment, DSCP, TCP/UDP port number

DiffServ (RF 2474) Remarking
Storm Control for Unicast, Broadcast, Multicast
IP Multicasting Features
IGMP / MLD Snooping

IGMP Snooping v1, v2, v3 / MLD Snooping v1, v2

Port Filtering Profile

Throttling, Fast Leave

Maximum Multicast Group : up to 1022 entries

Query / Static Router Port

Security Features

IEEE 802.1X



Port-Based

MAC-Based

ACL

Number of rules : up to 256 entries

for L2 / L3 / L4

L2 : Mac address SA/DA/VLAN

L3: IP address SA/DA, Subnet

L4: TCP/UDP

RADIUS authentication & accounting
TACACS+ authentication & accounting, TACACS+ 3.0
HTTPS, HTTP Supported
SSL / SSH v2 Supported

User Name Password

Authentication

Local Authentication

Remote Authentication (via RADIUS / TACACS+)

Management Interface Access Filtering

Web, Telnet / SSH , CLI RS-232 console



Management Features
CLI Cisco® like CLI
Web Based Management
Telnet Server
SNMP V1, V2c, V3

SW & Configuration

Upgrade

TFTP, HTTP

Redundant firmware in case of upgrade failure

Modbus/TCP

Support for management and monitoring



RMON RMON I , RMON II
MIB RFC1213 MIB II, Private MIB
UPnP Supported

DHCP



Server, Client, Relay, Snooping

Snooping option 82

Relay option 82

IP Source Guard Supported
Port Mirroring Supported
Event Syslog Syslog server (RFC3164) (Support 1 server )
Warning Message System syslog, e-mail, alarm relay
IEEE1588 Support
NTP Client
DNS Client, Proxy
LLDP (IEEE 802.1ab) Link Layer Discovery Protocol LLDP-MED
IPv6 Features
IPv6 Management Telnet Server/ICMP v6
SNMP over IPv6 Supported
SSH over IPv6 Supported
IPv6 NTP Client
IPv6 QoS Supported
HTTP over IPv6 Supported
IPv6 Telnet Supported
IPv6 TFTP Supported

IPv6 ACL



Number of rules: up to 256 entries

for L2 / L3 / L4

L2 : Mac address SA/DA/VLAN

L3: IP address SA/DA, Subnet

L4: TCP/UDP

Others Features

Green Ethernet



Supports IEEE802.3az EEE (Energy Efficient Ethernet)

Management to optimize the power consumption

Determine the cable length and lowering the power

for ports with short cables

Lower the power for a port when there is no link

LED Power Management :Adjustment LEDs intensity



Cable Diagnostic Measuring UTP cable normal or broken point distance

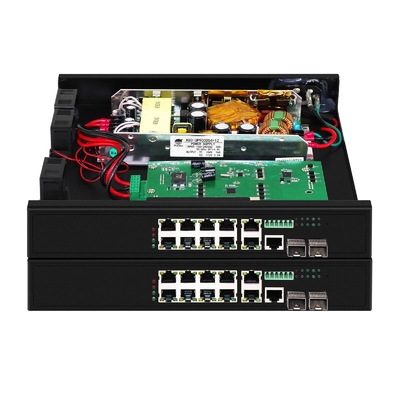

8 Port Poe Switch With 90W Managed 2*2.5Gb SFP Ports+2 Combo Ports POE Fiber Switch 0

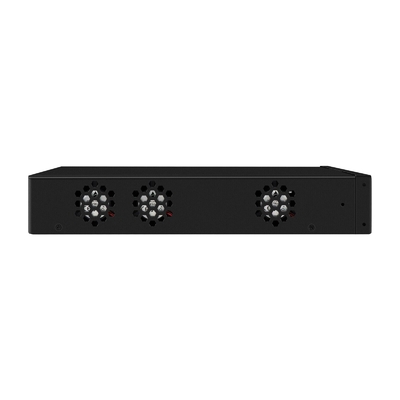

8 Port Poe Switch With 90W Managed 2*2.5Gb SFP Ports+2 Combo Ports POE Fiber Switch 1











Packing box of switch



8 Port Poe Switch With 90W Managed 2*2.5Gb SFP Ports+2 Combo Ports POE Fiber Switch 2
