Factory Oem/odm Fast ethernet
10/100mbps 4 port poe switch with 2 uplink port
Introduction of Fast Ethernet POE Switch

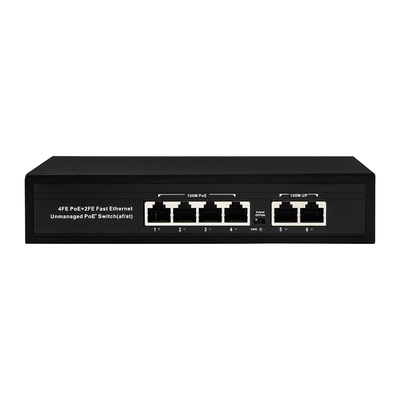

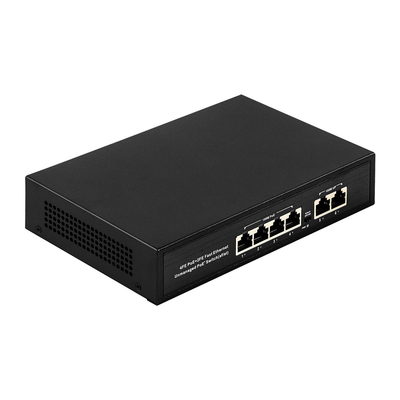

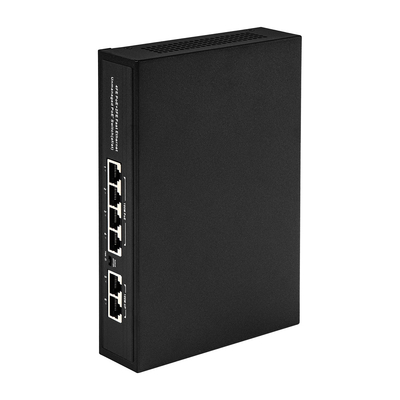

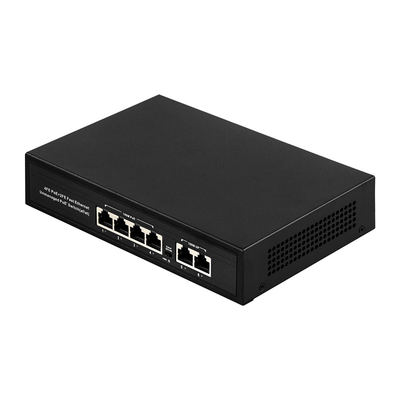

OLYCOM OM706-PSE-FE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 4 Poe-powered RJ45 ports and 2 RJ45 uplink ports. All of four RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 78W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
Specification of Industrial 6 port POE Switch
| Power |
Power Adapter Voltage |
AC 110V-240V |
| Consumption |
65W/78W |
|
Network Connector
|
Network Port |
PoE Ethernet Port |
1~4 Port : 10/ 100Mbps |
| Ethernet port |
Uplink Port : 10/ 100Mbps |
| Transmission Distance |
1~4 Port :
100Mbps:0~100m;
10Mbps: 0~250m;
|
| Uplink Port : 0 ~ 100m |
| Transmission Medium |
Cat5/5e/6 standard network cable |
|
Network Switch
|
Network Standard |
IEEE802.3/802.3u,
IEEE802.3x,
IEEE802.ab
|
| Switching Capacity |
1.2Gbps |
| Packet Buffer Memory |
1Mbits |
| Throughput |
0.8928Mpps |
| MAC Table |
1K |
| Packet Forwarding rate |
10Mbps:14880pps/port
100Mbps: 148800pps/port
|
| Power Over Ethernet |
PoE Standard |
IEEE 802.3af/at |
| PoE Power Supply |
12 45 + ,36 78- , 8 core power supply |
| PoE Power |
af=15.4W,at=30W for each port |
| RJ45 port |
Port Function |
Power priority mechanism,
fast and forward,
MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
|
| LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;
PoE Status Indicator;
Power indicator;Extender
|
| Environmental |
Working temperature |
0C~55C |
| Relative Humidity |
20~95% |
| Storage temperature |
-20C~70C |
| Mechanical |
Dimension (L ×W × H) |
220mm*140mm*45mm |
| Color |
Black |
| Weight |
0.95kg |
Application of 10/100mbps POE Switch
Packing box of poe switch
FAQ:
1.Whats Your Main Products?
POE Switch,industrial POE Switch,Ethernet Switch, WDM, OTN, optical bypass
2.Which Payment Terms Do You Accept?
We Can Accept T/T, Paypal
3.How Long Can I Expect To Get The Sample ?
Usually Within 3 Days But Depends On Your Requirements .
4.How About The Shipping ?
We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On
5.How About The After-sales Services?
Professional Services Team,24 Hours On Line.
