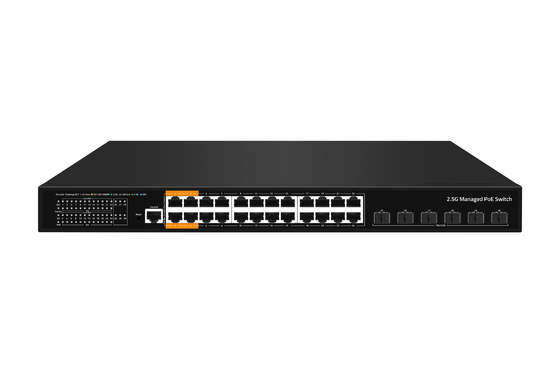

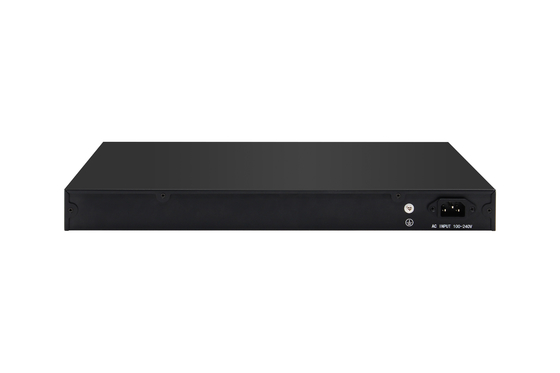

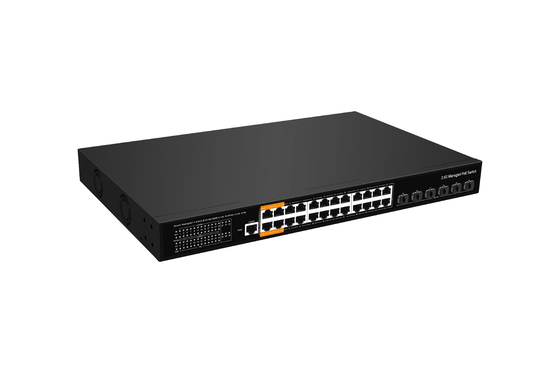

1U rack mounted L3 Managed Ethernet POE Switch
with 24*10/100/2500mbps+6* 10Gb SFP+
Introduction of L3 managed switch
Specification of Managed Ethernet POE Switch
| I/O Interface | |
| Power Input | AC100-240V/50-60Hz |
| Ethernet |
24* 100/1000/2500 Mbps PoE Port (1-4 Port support IEEE802.3bt(90W)) 6* 10G SFP+ Port 1* RJ45 Console Port |
| Performance | |
| Bandwidth | 240Gbps |
| Packet Forwarding Rate | 178.56Mpps |
| DDR SDRAM | 512MByte |
| Flash Memory | 32MByte |
| Buffer Memory | 16Mbit |
| MAC Address Table | 32K |
| Jumbo Frame | 10Kbytes |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 4K |
| Standard | |
| Network Protocol |
IEEE802.3 Ethernet MAC IEEE802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000BASE-X Gigabit Ethernet (SFP) IEEE 802.3ae 10G Ethernet IEEE802.3x Flow Control IEEE 802.3az Energy-efficient Ethernet IEEE 802.3ad Standard method for performing link aggregation IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (VLAN Bridge Operation) IEEE 802.1p (VLAN Label) IEEE 802.1X Client/Server Access Control and Authentication |
| PoE Standard |
IEEE802.3af(15.4W), IEEE802.3at(30W) IEEE802.3bt(90W) |
| Industry Standard |
EMS: EN61000-4-2(ESD), EN61000-4-5(Surge) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
| Fiber Medium |
Multi-Mode Fiber: 50/125, 62.5/125, 100/140um Single-Mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Certification | |
| Safety Certificate | CE, FCC, RoHS |
| Environment Standard | |
| Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Function Indicator | |
| PWR |
On: Powered On Off: Powered Off |
| SYS |
On: System On Flashing: System Off or Failed |
|
PoE Power Light
|
Off: Indicates PoE power usage is less than 90% Flashing: Indicates PoE power usage of 90% ≤ P ≤ 95% On: Indicates that PoE power is used at 95%<P<100% |
| Warning light | System temperature or voltage abnormal alarm |
|
Port/Link Light
|
Green ON: 2.5G Link Yellow On: 100/1000M Link Flashing: Link transmission Off: Link not transmission |
| PoE Light |
On: PoE powered on Off: PoE powered off |
| SFP Port Light |
Blue On: 10G Link Green On: 2.5G Link Flashing: Link transmission Off: Link not transmission |
|
Reset button
|
Short press for less than 5 seconds to restart Long press for more than 5 seconds to reset to factory default |
| Physical Specification | |
| Structure Size |
Product Dimensions: 440*281*44mm Package Dimensions: 500*365*85mm Product N.W: 4.37KG Product G.W: 5.14KG |
| Packing Info |
Carton Dimensions: 520*445*385mm Packing Qantity: 5 Pieces Packing weight: 26.7KG |
| Power Voltage |
Working Voltage: AC100-240V 50/60Hz Power Supply: DC 54V7.69A 12V5A |
| Power Consumption |
PoE: PoE Total Power maximum 400W Power Consumption: maximum 52W |
Shipping:
Packing List:
| CONTENT | QTY | UNIT | |
| Packing List | 10G L3 Managed POE Switch | 1 | Set |
| Instruction manual | 1 | Set | |
| Certificate of quality | 1 | Set | |
| Power cord | 1 | Set | |
| Serial cable | 1 | Set | |
| Mounting ear | 1 | Pair |
