Full Gigabit 10/100/1000M PoE Fiber Switch Support PoE Af/At 240W Budget

Full Gigabit 10/100/1000M PoE Fiber Switch Support PoE Af/At 240W Budget
Features Gallery Product Description Request A Quote
Product Name: 12 Port CCTV POE Fiber Switch
Certificaiton: CE FCC ROHS Compliance
Products Status: Stock
PoE Ports: 2 POE Ports
Network Medium: Cat5 (UTP) Or More
PoE Protocol: 802.3af, 802.3at
High Light:

Full Gigabit PoE Fiber Switch


10/100/1000M PoE Fiber Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE、FCC、RoHS
Model Number: OM21008-PSE-GE
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 0.9kg G.W.
Delivery Time: 4~8 days
Payment Terms: T/T, PayPal
Supply Ability: 2500pcs/month
Product Description

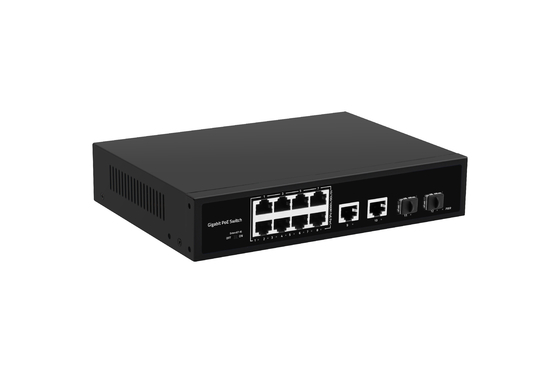

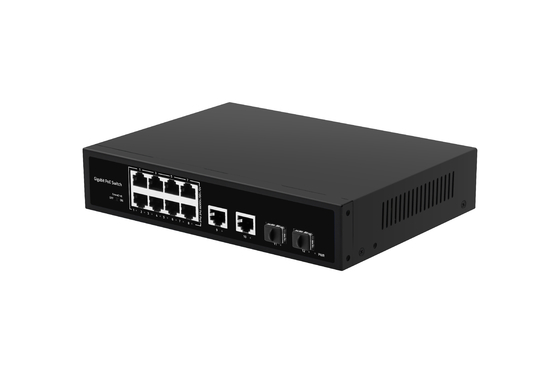

Full Gigabit 10/100/1000M PoE Fiber Switch


Introduction of  POE switch


The 12-port Gigabit intelligent standard PoE switch, uses high-quality, high-speed network IC and the most stable PoE chip. It can provide seamless connectivity on 10/100/1000M Ethernet network. The latest AI function is integrated into the switch, and the port automatically enables AI mode in Extend mode. The PoE power supply port automatically detects and supplies power to the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. Non-poe devices do not automatically detect power supply and only transmit data.

PoE is an Ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. , but also provides DC power to the device. Technically, these devices that receive DC power are called power supply devices.
Simple installation and maintenance methods and rich service functions help users build a secure, reliable and high-performance network. It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer; It can be widely applied to Ethernet access scenarios of small and medium-sized enterprises, Internet cafes, hotels, and schools.


Application of CCTV network switch


Subway optical broadband network: telecommunication, cable TV, network system integration, etc.
special broadband network: applicable to financial, government, oil, railways, electricity, public security, transportation, education and other industries
Multimedia transmission: integrated transmission of image, voice and data, suitable for remote teaching, conference TV, video telephone and other applications
Real-time monitoring: real-time control signal, image, data synchronous transmission

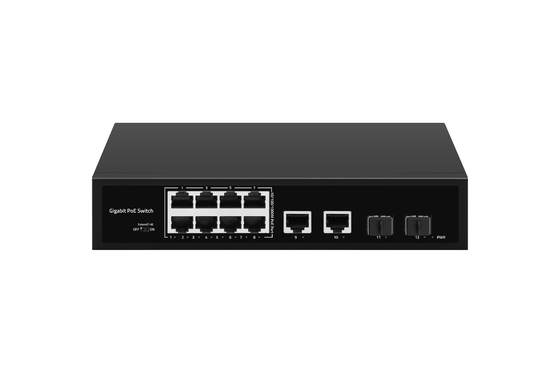

I/O Interface
Power AC100-240V50/60Hz

8* Gigabit PoE Ports

2* Gigabit Ethernet ports

2* Gigabit SFP Ports;

Chipset EN8850DH
Bandwidth 24Gbps
Packet Forward Rate 17.856Mpps
Package Cache 448Kbit
MAC Address 2K
Jumbo Frame 9216bytes
Forwarding Mode Storage & forward
MTBF 100000 Hours

Network Protocol


IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE802.3x (Flow Control)

IEEE 802.3z (Gigabit Ethernet Fiber Standard)

PoE Standard



Network medium


10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)

100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)

1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)

Optical Medium


Multimode optical fiber: 50/125, 62.5/125, 100/140um

Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um

Environment Standard

Working Environment


Working temperature: -10~50°C

Storage temperature: -40~70°C

Working humidity: 10%~90%, non-condensing

Storage humidity: 5%~95%, non-condensing

Function Indicator
Indicator PWR (Power),1-12 Green Light (Link&Data)



On: Powered on

Off: Powered off

1-10 Green Light



On: Link normal

Off: Link blocked

Flashing: Data transmitting

DIP Switch

Default: common mode, all interfaces can communicate with each other, the

transmission distance is less than 100 meters, the transmission rate is 10/100/1000M

adaptive; The port AI mode is disabled

Extend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enable

POE watchdog)

Physical Structure

Structure Size


Product Dimensions: 220*161*44.5mm

Package Dimensions: 315*215*85mm

Product N.W: 0.92kg

Product G.W: 1.22kg

Packing Info


Carton Dimensions: 445*445*335mm

Packing Quantity: 10 PCS

Packing Weight: 13.2KG

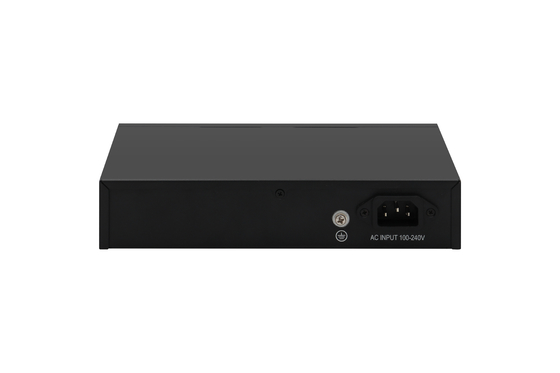

Power Voltage


Input voltage: AC 100-240 V 50-60Hz

Supply power:52V /2.3A 120W


Product power: maximum 10W

POE power: maximum 110W

Packaging List Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc


Production Steps

  • Welding: Weld the necessary components
  • Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  • Assembling: Builds up components of a product, like panels, screws, PCB boards.
  • Testing: To make sure the product is basically working fine after assembling
  • Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  • Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  • QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
  • When all above is done, the product will go to market.
