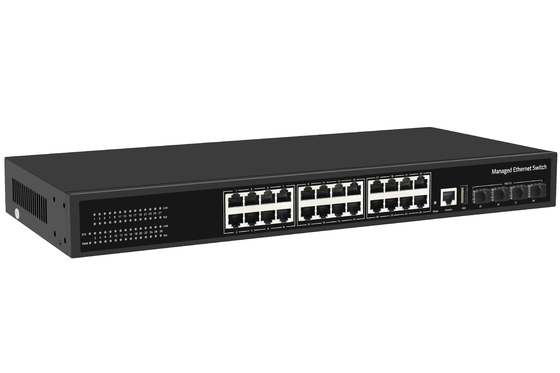

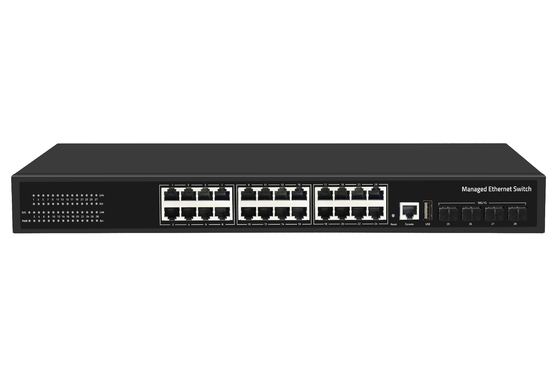

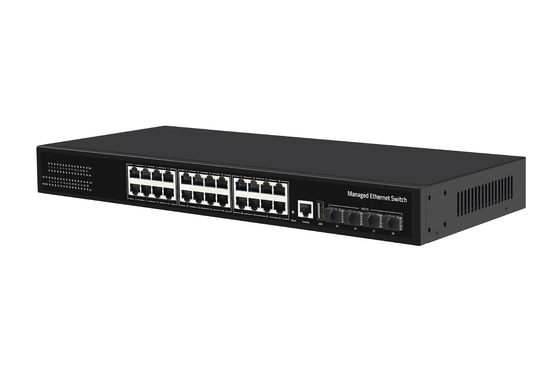

28 Port 10/100/1000Mbps managed Ethernet CCTV POE Switch
Features of 28 port POE switch
Application of CCTV network switch
Specification of 6 port Ethernet Switch
| Input/output Port | |

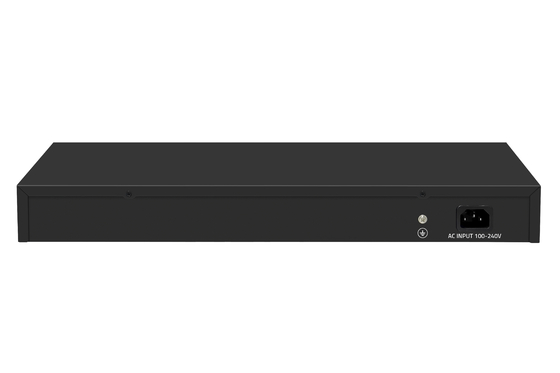

| AC INPUT | AC100-240V,50/60Hz |
| Ethernet Port |
24 * 10/100/1000Mbps RJ45 Port 4 * 10G SFP+ Port 1 * RJ45 Console Port 1 * USB Port |
| Performance | |
| Bandwidth | 128Gbps |
| Packet Buffer Memory | 95.23Mpps |
| DDR SDRAM | 128MByte |
| Flash Memory | 16MByte |
| Package cache | 12Mbit |
| MAC Address | 16K |
| Jumbo frame | 10Kbytes |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 4K |
| Standard | |
| Network Protocols |
IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae:10G Ethernet (optical fiber) IEEE 802.3az:Energy Efficient Ethernet IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP |
| Industry Standard |
EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
| Network Media |
10BASE-T: Cat3,4,5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) Multi-mode Fiber: 50/125,62.5/125,100/140um Single-mode Fiber: 8/125,8.7/125,9/125,10/125um |
| Certification | |
| Safety Certificate | CE,FCC,RoHS |
| Environmental standards | |
| Working Environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~95%, No condensation |
| Function indication | |
| PWR(Power indicator) | Lighting:Powered , Un-Light:No Power |
| SYS(System lights) | Lighting: System is normal , Flashing:system startup |
| Link(Link light) | Lighting:Connecting , Un-Light:Disconnect |
| Act(data light) | Flashing:Data Transmit , Un-Light:Disconnect |
| Physical specifications | |
| Product Information |
Product Dimensions: 440*205*44mm Package Dimensions: 500*290*85mm Product N.W: 2.53KG Product G.W: 3.14KG |
| Packing Information |
Carton Dimensions: 520*445*310mm Packing Qantity: 5 PCS Packing weight: 16.7KG |
| Voltage |
Input Voltage: AC100-240V/50-60Hz Power supply: 12V3A |
| Overall power | Maximum 30W |
| Packing list |
Ethernet switch 1 Set , Instruction manual 1 PCS , Certificate 1 PCS , Power cord 1PCS Serial cable 1PCS , Rack ear: 1 Pairs |
Accessories
| SFP Transceiver | ||
| OSPL1G05D | 1000BASE-SX |  |
| OSPL1G06D | 1000BASE-SX (1310nm) | |
| OSPL1G20D | 1000BASE-LX | |
| OSPL1G40D | 1000BASE-EX | |
| OSBL1G20D-35 | 1000BASE-BX-U (TX 1310 RX1550) | |
| OSBL1G20D-53 | 1000BASE-BX-D (TX 1550 RX1310) | |
| OSPLXG05D | 10GBASE-SR | |
| OSPLXG06D | 10GBASE-SR (1310nm) | |
| OSPLXG10D | 10GBASE-LR | |
| OSPLXG40D | 10GBASE-ER | |
| OSBLXG20D-23 | 10GBASE-BX-U (TX 1270 RX1330) | |
| OSBLXG20D-32 | 10GBASE-BX-U (TX 1330 RX1270) | |
