Name: 16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM21816-PSE-GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Gigabit Rack Managed POE Switch

Uplink: 2 Copper And 2 SFP Ports

Downlink: 16 Port 10/100/1000M POE

PoE Budget: 300W

Dimension: 440*204*44mm

Weight: 2.78KG Net Weight

Highlight:

16 Port Gigabit Managed PoE Switch

Managed PoE Switch Rack Type

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM21816-PSE-GW

Document: OLYCOM Industrial Networkin...25.pdf

Payment & Shipping Terms

Packaging Details: 1 piece in a box, 3.44Kg G.W.

Delivery Time: 3~7 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000pcs/month

Gallery

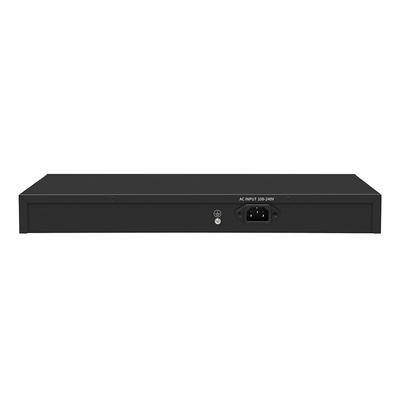

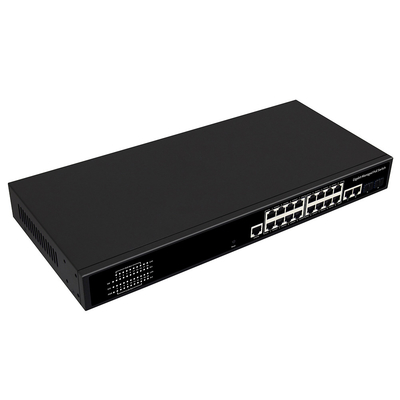

16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input

Product Description

20-Port Copper/SFP Uplink 300W Gigabit Managed PoE Switch

Specification of PoE managed switch

Input/output Port
AC INPUT	AC100-240V,50/60Hz
Ethernet Port	16 * 10/100/1000Mbps PoE Port 2* 10/100/1000Mbps Uplink Port 2* 1000Mbps SFP Port 1 * RJ45 Console Port
Performance
Bandwidth	40Gbps
Packet Forwarding rate	29.76Mpps
DDR SDRAM	128MByte
Flash Memory	16MByte
Packet Buffer Memory	4Mbit
MAC Address	8K
Jumbo frame	10Kbytes
VLANs	VLAN range 1-4094, with a maximum active VLAN of 256
Standard
Network Protocols	IEEE 802.3:Ethernet MAC Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q:VLAN Bridge Operation IEEE 802.1x:Client/Server Access Control and Authentication Protocol IEEE 802.1d:STP IEEE 802.1s:MSTP IEEE 802.1w:RSTP
PoE protocol	IEEE802.3af (15.4 W) IEEE802.3at (30 W)
Industry Standard	EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Media	10BASE-T: Cat3,4,5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Medium	Multi-mode Fiber: 50/125,62.5/125,100/140um Single-mode Fiber: 8/125,8.7/125,9/125,10/125um

Certification
Safety Certificate	CE,FCC,RoHS
Environmental standards
Working Environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~95%, No condensation
Function indication
Indicator	PWR, SYS, PoE/ACT, Link/ACT
PWR(Power Indicator)	Lighting:Powered Un-Light:No Power
SYS(System Indicator)	Flashing: System Start-up Lighting: System Running
PoE/ACT	Lighting: PoE on Un-Light :PoE off
Link/ACT	Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect
Reset	Short press restart, long press 5 seconds to restore factory Settings
Physical specifications
Product Information	Product Dimensions: 44020444mm Package Dimensions: 50029085mm Product N.W: 2.78KG Product G.W: 3.44KG
Packing Information	Carton Dimensions: 520445310mm Packing Quantity: 5pcs Packing weight: 17.55KG(200W)/ 18.2KG(300W)
Voltage	Input Voltage: AC100-240V/50-60Hz Power supply: 52V 3.84A / 52V5.76A
power	Product power: maximum 15W / maximum 15W POE power: maximum 180W / maximum 280W
Packing list	Ethernet switch: 1 Set Instruction manual: 1 PCS Certificate, warranty card: 1 PCS Power cord: 1PCS Serial cable: 1PCS Rack ear: 1 Pairs

Key Features of Rack Managed Switch

16 x 10/100/1000Mbps auto-sensing PoE Ports, 2 x 10/100/1000Mbps Ethernet Uplink Ports, 2 x Gigabit SFP Uplink Ports, 1 x Console Port
Support IEEE802.3/IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
Ethernet port supports 10/100/1000M adaptive
Panel indicator monitoring the status and help failure analysis
Fanless design, Natural Cooling, 1U Rack Mount
Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
Support WEB, TELNET, CLI, SSH, SNMP, RMON management
Support PoE Power Management, PoE watch dog
Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)

Dimension of CCTV PoE switch

16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input 0

Application of Commercial Network Switch

Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: simultaneous transmission of real-time control signals, images, data

Software Function of Gigabit managed switch

L3 managed switch function

L3 Function
IPv4	IPv4 VLAN Interface
	IPv4 Static Routes
	ARP
IPv6	IPv6 VLAN Interface
	IPv6 Static Routes
	IPv6 ND

L2 managed switch function

L2 Function
Port	Port Switch
	Port Description
	Port Speed
	Port Duplex
	Port Flow Control
	Jumbo, Up to 10K
	EEE
	Fiber Module(DDM)
Link Aggregation	Supports load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	Supports LACP
	Up to 8 groups
Storm Control	Boardcast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
	Port Security MAC Address
	Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel (Q-in-Q Tunnel)
	Congurable VID from 1 - 4094; Max. 256 static VLAN groups
	Voice VLAN
	MAC VLAN
	Surveillance VLAN
	Protocol VLAN
	GVRP
MAC Address	Dynamic Address
	Static Address
	Filtering Address
Spnning Tree Protocol	STP/RSTP/MSTP
	BPDU Filter
	BPDU Guard
	Edge Port
LLDP	LLDP
	LLDP MED
Multicast	IGMP Snnoping
	IGMP V1/V2/V3
	Router Port
	Static IGMP group address
	IGMP groups filtering
	Querier
	MLD Snooping
	MVR
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	802.1P Priority
	IP TOS Priority
	IP DSCP Priority
	Supports up to 8 queues per port
	Priority Remarking
PoE
PoE Configuration	PoE Temperature
	PoE Type/Level/Power/Voltage/Current
	PoE Switch
	PoE Watchdog
	PoE power AF/AT adaptation
PoE Schedule
PoE Port Timer Reboot
Services
DHCP	DHCP Server
	IP Pool
	Static Binding
	DHCP Relay
Access Protocol	HTTP
	HTTPS
	Telnet
	SSHv2
	Manager ACL
	Session Timeout
	Password Retry Count
	Silent Time
Security
AAA	RADIUS
	TACACS+
	802.1X
	Base on port/MAC/local/WEB
DHCP Snooping	Global/VLAN
	Option 82
	Circuit ID
IP Source Guard
Dynamic ARP Inspection
DoS
ACL	MAC ACL
	IPv4 ACL
	IPv6 ACL
Diagnostics
Syslog	Logging Message
	Remote Server
Ping
Traceroute
Copper Test
UDLD
Management
Manager Access	Console
	HTTP/HTTPS
	Telnet
	SSH
	SNMP
Manager IP	Static Address
	DHCP Client
	Supports IPv4 and IPv6 address
	Manager VLAN
	DNS
Time Synchronization	SNTP
	Manual Time
SNMP	V1/V2C/V3
	Community
	V3 User
	Group
	Trap Host
SNMP MIB	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2863 Interface MIB
	LLDP
	Private MIB
RMON	Statistics
	History
	Event
	Alarm
User
Firmware	Firmware Upgarde
Configuration	Upload and download
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2

16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input 1

Warranty

1 year for commercial products and 3 years for industrial products.

Technical support will be offered free.

Products Category	Warranty Period
Fiber Ethernet Media Converter	1 year
Optical Video Converter	1 year
Fiber Switch	1 year
Ethernet Switch	1 year
Serial Fiber Converter	1 year
PDH Multiplexer	1 year
CCTV PoE Switch	1 year
Commercial Managed Switch	1 year
Commercial PoE Managed Switch	1 year
Din Power Supply	3 years
Industrial Ethernet Switch	3 years
Industrial PoE Switch	3 years
Industrial Managed Switch	3 years
Industrial PoE Managed Switch	3 years
CWDM Module	1 year
DWDM/OTN Devices	1 year

16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input 2

16-Port Gigabit Managed PoE Switch With 300W Power 2 SFP/RJ45 Combo Uplink AC Input 3
