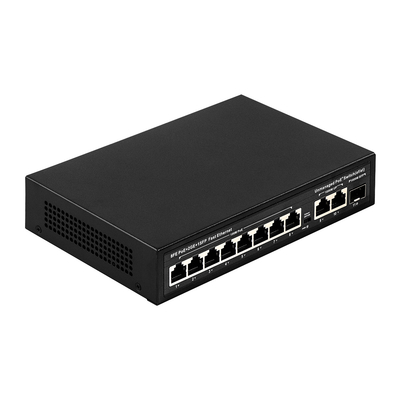

120W PoE Switch 8 Port Unmanaged Fast Ethernet With SFP Fiber Uplink AC Input

• OLYCOM OM011008-PSE-FE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply.
• It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design.
• With extremely fast data processing capability to improve smooth data transmission performance.
• It has 8 Poe-powered RJ45 ports and 2 RJ45 uplink ports.
• All of eight RJ45 ports support IEEE 802.3af/at standard, with a maximum power supply of 30W for a single port and 150W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
• With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network.
• It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband
• It can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.


Key Features of PoE Switch 8 Port

• 8*10/ 100Mbps PoE ports, 2*10/ 100/1000Mbps network ports, 1*1000M SFP fiber port
• Support IEEE802.3af/at
• Support restrain network storm, VLAN function
• Support Max Transmission distance up to 250m
• All ports supported by MDI/ MDIX auto flip and self-negotiation
• Built-in power supply
• Maximum power of single PoE port: 30 W
• Whole machine power: 120W&150W
• Adopts store-and-forward architecture
• Fan-less, natural cooling, small, compact and quiet design, suitable for desktop or wall
• Support lightning protection 4kV

Specification of 30W PoE Switch

Power	Power Adapter Voltage		AC 110V-240V
	Consumption		120W/150W
Network Connector	Network Port	PoE Ethernet Port	1~8 Port: 10/ 100Mbps
		Ethernet port	Uplink Port: 10/ 100/1000Mbps
	Fiber Port		Uplink Port: 1000M SFP
	Transmission Distance		1~8 Port : 100Mbps:0~100m; 10Mbps: 0~250m;
			Uplink Port : 0 ~ 100m
			SFP: depends on the SFP transceiver (20km-120km)
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab
	Switching Capacity		2.0Gbps
	Packet Buffer Memory		1Mbits
	Throughput		1.488Mpps
	MAC Table		1K
	Packet Forwarding rate		10Mbps:14880pps/port 100Mbps: 148800pps/port
Power Over Ethernet	PoE Standard		IEEE 802.3af/at
	PoE Power Supply		12 45 + ,36 78- , 8 core power supply
	PoE Power		af=15.4W,at=30W for each port
RJ45 port	Port Function		Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
LED Indicator	LED Indicator		LINK/ACT.100Mbps; PoE Status Indicator; Power indicator; Extender
Environmental	Working temperature		0C~55C
	Relative Humidity		20~95%
	Storage temperature		-20C~70C
Mechanical	Dimension (L ×W × H)		220mm*140mm*45mm
	Color		Black
	Weight		1.05kg

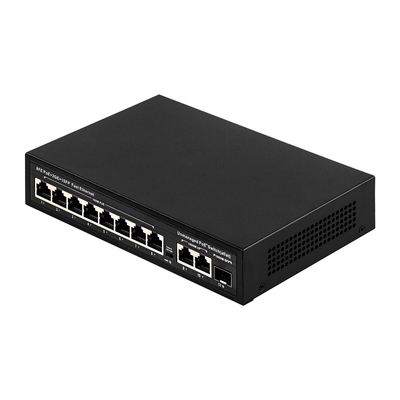

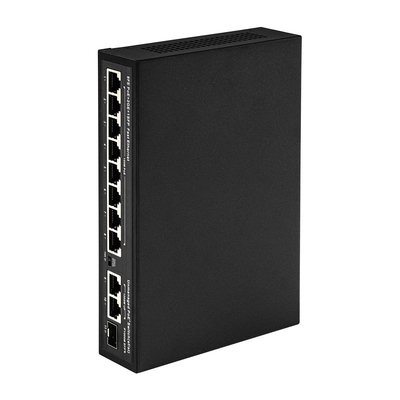

More Photos of Gigabit Fiber Switch



Application of CCTV PoE Switch

Order Details of 8 Port Network Switch
