Home /Products/Fiber Optic POE Switch/Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink

Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink

1
MOQ
Negotiable
Price
Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Name: POE Network Switch
Ports: 1SFP Port, 2 Uplink Ports And 4 RJ45 Ports
Color: Black
Network Port: RJ45
POE Standard: AF/AT
Distance: 100m
Power Adapter Voltage: AC 110V-240V
Switching Capacity: 1.2Gbps
Highlight:

CE POE Network Switch

,

MDIX POE Network Switch

,

MDI POE Ethernet Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, RoHS, FCC
Model Number: OM716-PSE-GE
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: Neutral packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 4000 sets per month
Product Description
4*10/100Mbps PoE Network Switch

Introduction

  • OLYCOM OM716-PSE-GE series PoE switch is designed by OLYCOM for meeting the demand of PoE power supply.
  • It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance.
  • It has 4 Poe-powered RJ45 ports and 2 RJ45 uplink ports and 1 independent SFP expansion slot.
  • All of four RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 78W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.
  • With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network.
  • It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband.
  • It can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.


Key Features



  1. 4*10/ 100/1000Mbps PoE ports, 2*10/ 100/1000Mbps uplink port, 1*1000Mbps SFP port
  2. Support IEEE802.3af/at
  3. Support restrain network storm, VLAN function
  4. Support Max Transmission distance up to 250m
  5. All port supported by MDI/ MDIX auto flip and self-negotiation
  6. Built-in power supply
  7. Maximum power of single PoE port : 30W
  8. Whole machine power: 65W&78W
  9. Adopts store-and-forward architecture
  10. Fan-less, natural cooling, small,compact and quiet design,suitable for desktop or wall
  11. Support lightning protection 4kV


Specification


Power Power Adapter Voltage AC 110V-240V
  Consumption 65W/78W





Network Connector

 Network Port PoE Ethernet Port 1~4 Port : 10/ 100/1000Mbps
    Ethernet port Uplink Port : 10/ 100/1000Mbps
  Fiber Port Uplink Port : 1000Mbps
  Transmission Distance

1~4 Port :

100Mbps:0~100m;

10Mbps: 0~250m;
    Uplink Port : 0 ~ 100m
    SFP: depend on the SFP transceiver (20km-120km)
  Transmission Medium Cat5/5e/6 standard network cable







Network Switch

 Network Standard

IEEE802.3/802.3u,

IEEE802.3x,

IEEE802.ab
  Switching Capacity 2.0Gbps
  Packet Buffer Memory 1Mbits
  Throughput 1.488Mpps
  MAC Table 1K
  Packet Forwarding rate

10Mbps:14880pps/port

100Mbps: 148800pps/port

1000Mbps: 1488000pps/port
Power Over Ethernet PoE Standard IEEE 802.3af/at
  PoE Power Supply 12 45 + ,36 78- , 8 core power supply
  PoE Power af=15.4W,at=30W for each port
RJ45 port Port Function

Power priority mechanism,

fast and forward,

MAC automatic learning and aging IEEE802.3X Full-duplex and mode and back-pressure for Half-duplex mode
LED Indicator LED Indicator

LINK/ACT.100Mbps;

PoE Status Indicator;

Power indicator;Extender
Environmental Working temperature 0C~55C
  Relative Humidity 20~95%
  Storage temperature -20C~70C
Mechanical Dimension (L ×W × H) 220mm*140mm*45mm
  Color Black
  Weight 0.95kg

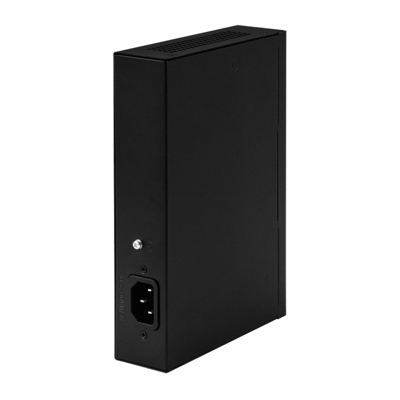

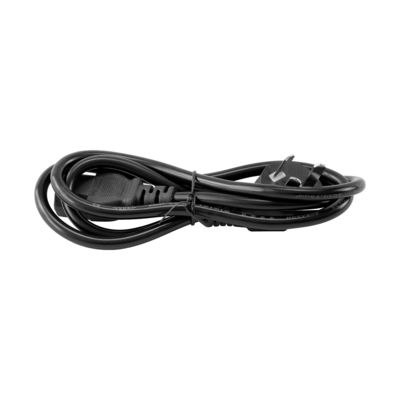

Other Photos


Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink 0Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink 1



Application

Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink 2


Order Details



OM716-PSE-GE PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber + 2UTP to 4 UTP, 48VDC, 100m
OM714-PSE-GE/S20-SC PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber to 4 UTP, 48VDC, SMF, dual fiber, 20Km, SC
OM714-PSE-GE/S40-SC PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber to 4 UTP, 48VDC, SMF, dual fiber, 40Km, SC
OM714-PSE-GE/S60-SC PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber to 4 UTP, 48VDC, SMF, dual fiber, 60Km, SC
OM714-PSE-GE/S80-SC PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber to 4 UTP, 48VDC, SMF, dual fiber, 80Km, SC
OM714S/U-PSE-GE/S20-SC PSE/PoE fiber switch, 10/100/1000Mbps, 1 fiber to 4 UTP, 48VDC, SMF, single fiber, 20Km, SC



Gigabit 4 Port POE Network Switch Unmanaged With 2 SFP/RJ45 100/1000M Uplink 3
