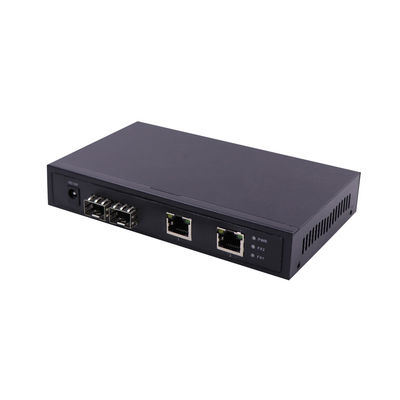

Gigabit Ethernet 2 SFP Fiber + 2 RJ45 Fiber Optic Managed Switch With POE
Introduction
TA722W-PSE-GE 10/100/1000Mbps Fiber Optic Managed Switch provides IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the 4 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras. Using SFP fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 120km max on SMF. Standard in-stock fiber interface is LC.
Key Features
IEEE802.3/u/x compliant
6KV surge protection
Specification
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.3af PoE/PSE |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| Fiber Port | 2 x SFP port |
| RJ-45 Port | 4 x Auto-MDI/MDIX |
| Input Voltage | AC100 ~ 240V / 50-60HZ to 48V via external adapter |
| Power Consumption | <2.5W (idle), 60W (full-load) |
| PoE Pin Assignment | 1/2 (V+),3/6 (V-) ,4/5 (V+),7/8 (V-) ,optional |
| PoE Output Voltage | -48V, 3A, 140W |
| Internet Protocol |
IEEE 802.3i 10BASET IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet), |
| Bandwidth | 40Gbps |
| Packet buffer memory | 2.75MB |
| IP Address Database | 4,000 |
| Buffer Size | 1M |
| Operation Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~75℃ |
| Storage Humidity | 10%～95% |
| Dimension | 160 x 130 x 50mm |
| Weight | 1.5 kg (Gross Weight) |
Application
Packing List
1. 1pcs managed fiber switch ( SFP module need to order seperately)
2. 1pc power adapter
3. 1pc user manual
4. 1pc neutral packing box
20pcs will be packed in one master carton. The size of master carton is 67*33*47cm.
Order Details
|
TA722W-PSE-GE/M2-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber to 2 UTP, 220VAC in -48VDC out, MMF, dual fiber, 2Km, SC |
|
TA722W-PSE-GE/S20-SC |
PSE/PoE fiber switch, 10/100M/1000bps, 2 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 20Km, SC |
|
TA722W-PSE-GE/S40-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 40Km, SC |
|
TA722W-PSE-GE/S60-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 60Km, SC |
|
TA722W-PSE-GE/S80-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 80Km, SC |
|
TA722WS/U-PSE-FE/S20-SC |
PSE/PoE fiber switch, 10/100/1000Mbps, 2 fiber to 2 UTP, 220VAC in -48VDC out, SMF, single fiber, 20Km, SC |
