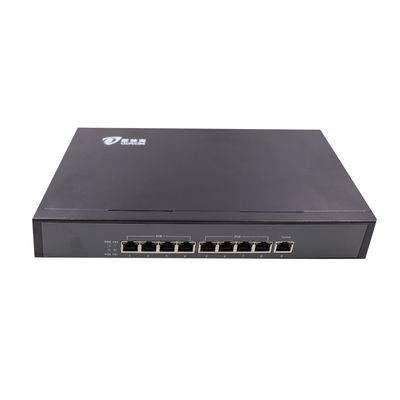

8 Port 10/100M POE Network Swith With One 10/100/1000M Uplink RJ45 Port
Introduction
TA709-PSE-FE 10/100 Mbps copper Ethernet switch provides IEEE 802.3af Power Sourcing Ethernet (PSE) functionality on the 8 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras.
Key Features
One pcs uplink 1000M RJ45
Support Auto MDI/MDIX
Specification
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.3af PoE/PSE |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | 8 x Auto-MDI/MDIX |
| Input Voltage | AC100 ~ 240V / 50-60HZ to 48V via internall adapter |
| Power Consumption | <2.5W (idle), 60W (full-load) |
| PoE Pin Assignment | 1/2 (V+),3/6 (V-) ,4/5 (V+),7/8 (V-) ,optional |
| PoE Output Voltage | -48V, 0.27A, 13W |
| Internet Protocol | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af |
| Bandwidth | 9.2Gbps |
| Packet buffer memory | 2.75MB |
| IP Address Database | 4,000 |
| Buffer Size | 1M |
| Operation Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~75℃ |
| Storage Humidity | 10%～95% |
| Dimension | 294 x 180 x44mm |
| Weight | 1.5 kg (Gross Weight) |
Application
Order Details
| TA709-PSE-FE | PSE/PoE fiber switch, 10/100Mbps, 0 fiber to 8 UTP, 220VAC in -48VDC out, 100m |
| TA714-PSE-FE/S20-SC | PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 20Km, SC |
| TA714-PSE-FE/S40-SC | PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 40Km, SC |
| TA714-PSE-FE/S60-SC | PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 60Km, SC |
| TA714-PSE-FE/S80-SC | PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 80Km, SC |
| TA714S/U-PSE-FE/S20-SC | PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 4 UTP, 220VAC in -48VDC out, SMF, single fiber, 20Km, SC |
