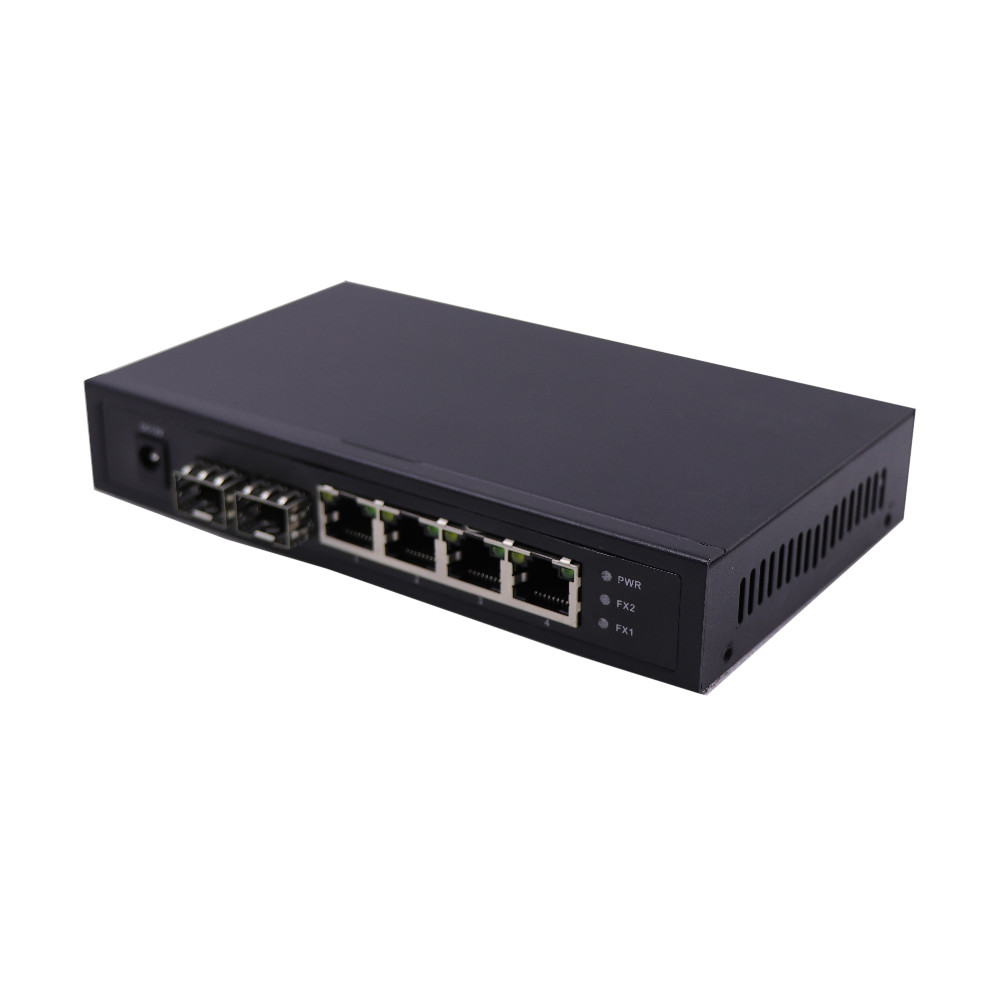

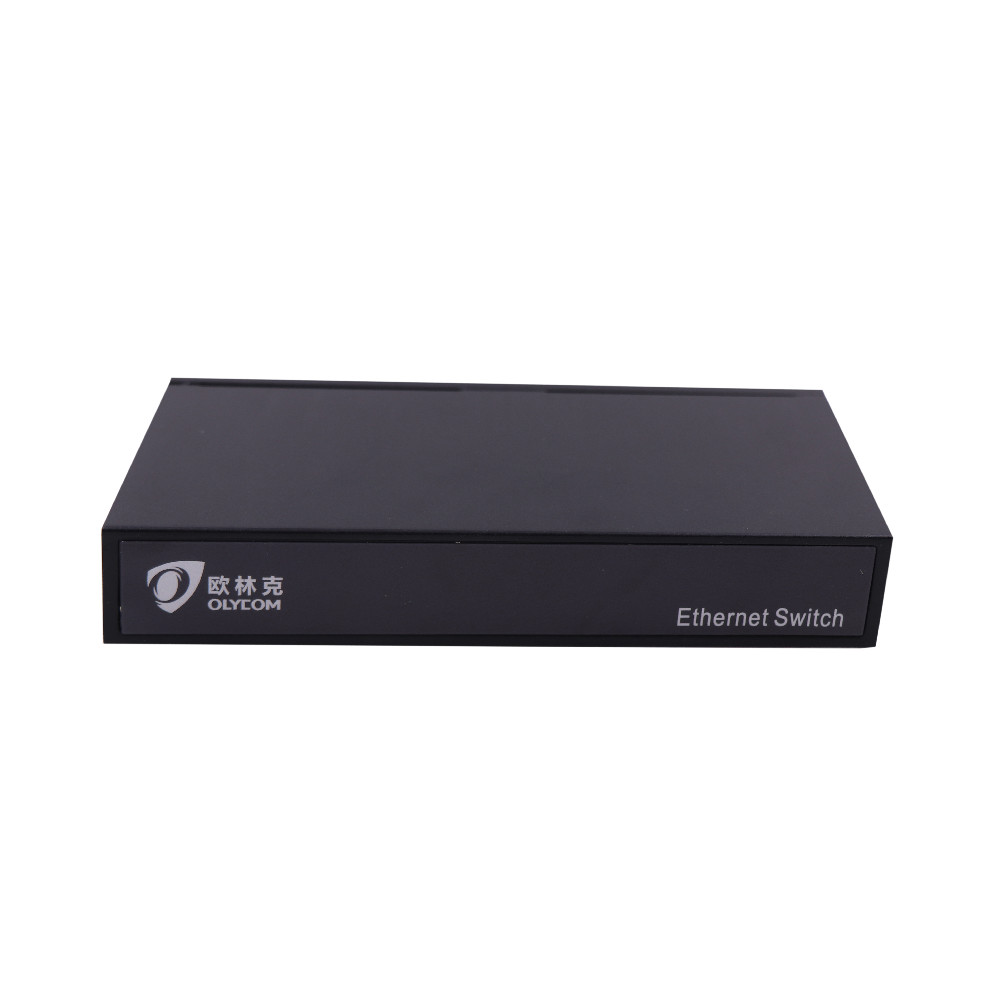

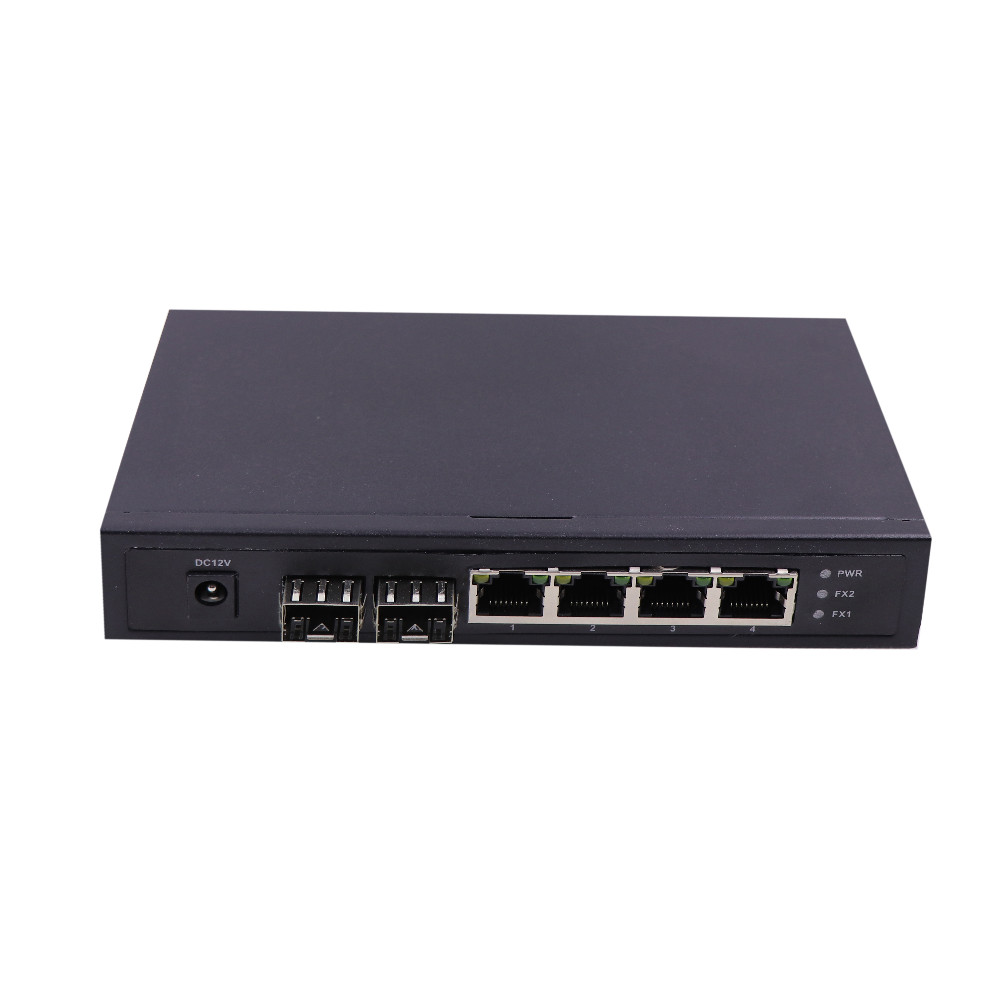

10/100/1000M Unmanaged Fiber Switch 2SFP Fiber 4 RJ45 Ports POE With Mini Casing
Introduction
TA724-PSE-GE 10/100/1000Mbps Unmanaged Fiber Switch provides IEEE 802.3af Power Sourcing Ethernet (PSE) functionality on the 4 twisted pair ports, supplying both data and electric current to devices such as WiFi access points, VoIP phones and IP security cameras.
It is an ideal solution when PoE-powered network devices need to be installed further than the 100 m / 300 ft. distance allowed by twisted pair cabling by using multi-mode or single-mode fiber optic cabling, network managers can install Powered Devices (PD) anywhere around the LAN or enterprise campus. The TA724-PSE-GE series performs media conversion as well as providing electric current to the end-device at the remote site.
Key Features
2 x 1000Base-FX or SX fiber port
4 x 10/100Base-TX port for data and power
IEEE802.3af/at compliant
External power supply
Diagnostic and unit LEDs and PoE current indicator LEDs
Specification
| Product Name | Unmanaged Fiber Switch |
|
Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.3af PoE/PSE |
|
10/100/1000BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
|
1000BASE-FX |
50/125um, 62.5/125um MMF (5km), 9/125um SMF (25/40/60/80/100/120km) |
|
Conversion Mode / Delay Time |
Store-and-Forward < 10us, straight-through<0.9us |
|
Flow control |
Full duplex-flow control, Half duplex-back pressure |
|
RJ-45 Port |
4 x Auto-MDI/MDIX |
|
Fiber Connector |
1 x SC standard, ST/FC optional |
|
Wavelength |
1310/1550nm |
|
Input Voltage |
AC100 ~ 240V / 50-60HZ to 48V via external adapter |
|
Power Consumption |
<2.5W (idle), 60W (full-load) |
|
PoE Pin Assignment |
1/2 (V+),3/6 (V-) |
|
PoE Output Voltage |
-48V, 1.25A, 60W |
|
MTBF |
50,000 hours |
|
BER |
<1/1000000000 |
|
MAC Address Table |
1K |
|
Buffer Size |
1M |
|
Operation Temperature |
0℃~50℃ |
|
Storage Temperature |
-40℃~70℃ |
|
Dimensions |
160mm ×95mm ×28mm |
|
Weight |
0.78 kg (Gross Weight) |
Application
Please check the product and accessories carefully when you use it at the first time.
●One managed optical switch
●One user manual
●One power adapter
●One CD for user manual
Products with POE need to be equipped with a 48-52VDC power supply.
The device has built-in precision components. Please avoid violent vibration. Please take care of it to avoid affecting the performance of the device. If you find that the equipment has been damaged or lost any parts during transportation, please inform the company or our company's office or distributor, we will solve it as soon as possible.
Order Details
|
TA724-PSE-GE/M2-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, MMF, dual fiber, 2Km, SC |
|
TA724-PSE-GE/S20-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 20Km, SC |
|
TA724-PSE-GE/S40-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 40Km, SC |
|
TA724-PSE-GE/S60-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 60Km, SC |
|
TA724-PSE-GE/S80-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, SMF, dual fiber, 80Km, SC |
|
TA724S/U-PSE-FE/S20-SC |
PSE/PoE fiber switch, 10/100Mbps, 2 fiber to 4 UTP, 220VAC in -48VDC out, SMF, single fiber, 20Km, SC |
