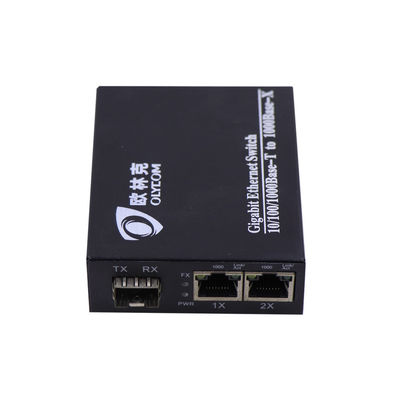

Unmanaged 5VDC Lc Fiber Switch , 40KM 2 Port Rj45 Switch With POE

Standard

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.3af PoE/PSE

10/100/1000BASE-T

STP or UTP Category 5/5e/6 cable (Max. 100m)

1000BASE-FX

50/125um, 62.5/125um MMF (5km), 9/125um SMF (25/40/60/80/100/120km)

Conversion Mode / Delay Time

Store-and-Forward < 10us, straight-through<0.9us

Flow control

Full duplex-flow control, Half duplex-back pressure

RJ-45 Port

2 x Auto-MDI/MDIX

Fiber Connector

1 x SFP slot

Wavelength

1310/1550nm

Input Voltage

AC100 ~ 240V / 50-60HZ to 48V via external adapter

Power Consumption

<2.5W (idle), 60W (full-load)

PoE Pin Assignment

1/2 (V+),3/6 (V-)

PoE Output Voltage

-48V, 1.25A, 60W

MTBF

50,000 hours

BER

<1/1000000000

MAC Address Table

1K

Buffer Size

1M

Operation Temperature

0℃~50℃

Storage Temperature

-40℃~70℃

Storage Humidity

160mm ×95mm ×28mm

Dimensions and Weight

0.78 kg (Gross Weight)

TA712-PSE-GE/M2-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, MMF, dual fiber, 2Km, SC

TA7142PSE-GE/S20-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 20Km, SC

TA712-PSE-GE/S40-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 40Km, SC

TA712-PSE-GE/S60-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 60Km, SC

TA712-PSE-GE/S80-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, SMF, dual fiber, 80Km, SC

TA712S/U-PSE-FE/S20-SC

PSE/PoE fiber switch, 10/100Mbps, 1 fiber to 2 UTP, 220VAC in -48VDC out, SMF, single fiber, 20Km, SC
