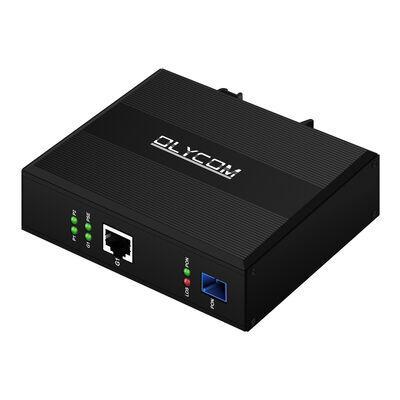

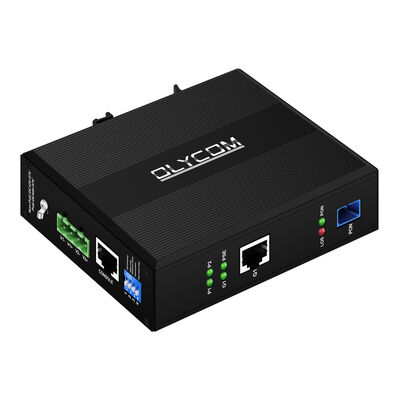

Industrial Grade Gigabit xPON ONU with DIN Rail Mounting and Layer 3 Routing for Harsh Environments

1pc
MOQ
Negotiable
Price
Industrial Grade Gigabit xPON ONU with DIN Rail Mounting and Layer 3 Routing for Harsh Environments
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Olycom Industrial Grade Gigabit Single-Port XPON PoE ONU
Highlight:

Industrial Grade ONU

,

DIN Rail Mounting Optical Network Unit

,

Layer 3 Routing xPON ONU
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Model Number: IM-ON100P
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs per month
Product Description
Industrial Gigabit xPON PoE ONU EPON/GPON 802.3at 30W Din-Rail IP40 -40~75°C L3 Routing
Product Overview

Industrial Grade Gigabit Single-Port xPON PoE ONU

The IM-ON100P dual-mode optical network unit (ONU) supports two access modes: Ethernet Passive Optical Network (EPON) and Gigabit Passive Optical Network (GPON). PoE power supply complies with IEEE 802.3af/at protocol standards.

Designed for demanding communication applications, such as video and process monitoring systems, which can benefit from scalable backbone communication networks. Equipped with high-performance forwarding capabilities, it can provide an excellent user experience for Internet and high-definition video services.

Key Features
  • 1 x 10/100/1000/2500M PON port
  • 1 x 10/100/1000Mbps LAN port
  • 1x Console port
  • Support two access modes: Ethernet Passive Optical Network (EPON) and Gigabit Passive Optical Network (GPON)
  • Support PoE af/at, the DIP switch support 250m extension distance and watchdog
  • A store-and-forward switching mechanism
  • Support wide voltage dual power input
  • IP40 protection degree, DIN rail installation
  • Operating environment temperature: -40°C to 75°C
  • Compatible with main OLTs, highly compatible and stable in function
Technical Specifications
Product Name Industrial Gigabit Single-Port Grade xPON ONU
Model No. IM-ON100P
PON 1*SC/UPC Or SC/APC
Wavelength Transmit: 1310nm
Receive: 1490nm
Receive Sensitivity >-28dBm
Lan Port 1*10/100/1000BASE-T
Power Consumption Input voltage: DC 44-57V
PoE af/at (15.4W/30W)
Reverse connection: support
Environment Working temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Working humidity: 10% to 90%, non-condensing
Storage humidity: 10% to 95%, non-condensing
EMC EC 61000-4-2 (ESD): Level 4 (Contact Discharge±skV, Air Discharge±1skV)
IEC 61000-4-4 (EFT): Level 4 (Power: +4kV; Ethernet Port: +2kV)
IEC 61000-4-5 (Surge): Level 4 (Power: Common Mode ±4kV, Differential Mode ±2kV)
IEC 61000-4-5 (Surge): Level 4 (Ethernet Port: Common Mode±4kV, Differential Mode±2kV)
Safety CE Mark, commercial
CE/LVD EN60950
Mechanical Information Shell: Corrugated metal shell
Safety class: IP40
Dimension: 138 x 93 x 35mm
Mounting method: Din-rail mounting
Warranty 3 years
Software Features
  • Standard Compatibility: Compliant with IEEE 802.3ah and ITU-T G.984 standards
  • Security Protection: Supports broadcast storm suppression
  • Intelligent Management: Supports ONU automatic discovery, link detection and software remote upgrade
  • Multicast: Supports IGMP transparent / snooping / proxy mode
  • Flexible Registration: Support multiple registration methods
  • Bandwidth Management: Support Dynamic Bandwidth Allocation (DBA)
  • Network Isolation: Support port VLAN configuration
  • Routing: Support Layer 3 routing function
  • MAC Management: Support MAC address learning
  • Fault Diagnosis: Supports power failure alarm function, which is convenient for troubleshooting link failures
  • Traffic Control: Supports port-based rate limiting and bandwidth control
  • Transmission Optimization: Supports port traffic control
Applications
PoE Watchdog application diagram

PoE Watchdog

Network access application diagram
Compatible Accessories
GPON OLT Description Image
OM-OL100 1*GPON, 2*RJ45+1*SFP/SFP+ OM-OL100 GPON OLT
PON SFP Transceiver Description Image
OSP20D-B+ GPON OLT Class B+ PON SFP Transceiver
OSP20D-C+ GPON OLT Class C+
OSP20D-C++ GPON OLT Class C++
OSP20D-C+++ GPON OLT Class C+++
Industrial Power Adapter Din-rail Description Image
IM-DAC220/DC48V2.5A AC220V to DC48V2.5A, -40～80℃ Industrial Power Adapter
IM-DAC220/DC48V5A AC220V to DC48V5A, -40～80℃
IM-DAC220/DC48V10A AC220V to DC48V10A, -40～80℃
