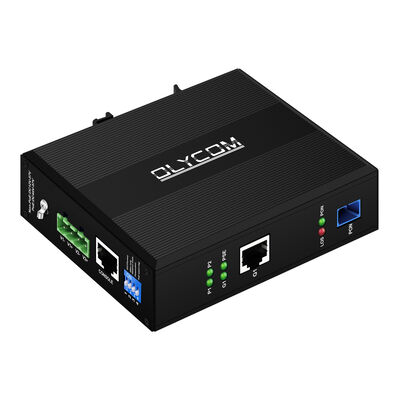

Industrial Gigabit xPON PoE ONU | EPON/GPON Fiber Access Device with DIN Rail Mounting

Industrial Gigabit xPON PoE ONU | EPON/GPON

Fiber Access Device with DIN Rail Mounting


Key Features of Industrial Gigabit PoE ONU

• 1 x 10/100/1000/2500M PON port
• 1 x 10/100/1000Mbps LAN  port
• 1x Console port
• Support two access modes: Ethernet Passive Optical Network (EPON) and Gigabit Passive Optical Network (GPON)
• Support PoE af/at, the DIP switch support 250m extension distance and watchdog.
• A store-and-forward switching mechanism
• Support wide voltage dual power input,
• IP40  protection degree, DIN rail installation,
• Operating environment temperature:-40 ° ~75 ° c
• Compatible with main OLTs, highly compatible and stable in function

Specification

Application

Packing List:

• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*16.5*5.8cm
• 20pcs in a packing box of 55.5*40*41cm dimension.

FAQ:

Q1: What is an xPON PoE ONU?

An xPON PoE ONU combines fiber access and PoE power supply functions in one device.

It connects to an OLT through the PON port and provides Ethernet connectivity and PoE power to terminal devices.

IM-ON100P supports EPON and GPON dual-mode access with one Gigabit PON port and one Gigabit Ethernet port.

Q2: What devices can be powered by this PoE ONU?

IM-ON100P supports IEEE 802.3af/at PoE standards and can power:

• IP Cameras
• Wireless Access Points
• PoE Sensors
• Other PoE Ethernet devices

It supports PoE af/at with up to 30W power output.

Q3: Is this ONU suitable for harsh industrial environments?

Yes.

IM-ON100P features:

• -40°C to 75°C operating temperature
• IP40 protection
• Metal housing
• DIN-Rail mounting

It is designed for industrial cabinets, outdoor enclosures and harsh environments.

Q4: Does it support both EPON and GPON?

Yes.

IM-ON100P supports dual-mode EPON and GPON access, providing flexible deployment options for different network infrastructures.

Q5: Is it compatible with different OLT brands?

Yes.

The device is compatible with mainstream OLT equipment and supports ONU automatic discovery, link detection and remote software upgrade.

Q6: What are the advantages compared with a standard ONU?

Compared with a standard ONU, IM-ON100P provides:

• Industrial wide-temperature operation
• DIN-Rail installation
• Integrated PoE power supply
• Industrial-grade protection

It helps simplify network deployment and reduces additional power wiring requirements.
