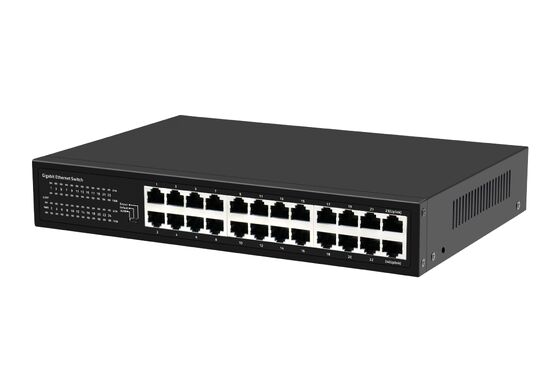

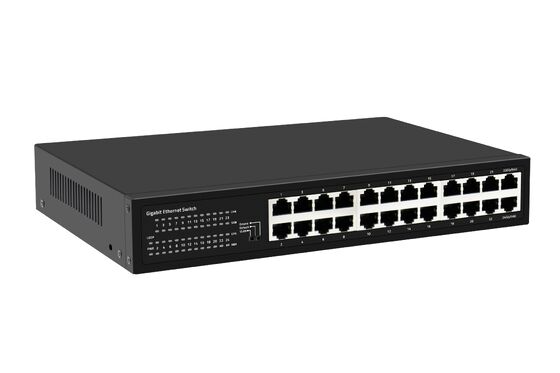

24-port Unmanaged VLAN/Extend/Loop Gigabit Ethernet Switch
Introduction
The 24-port 10/100/1000Mbps desktop Ethernet switch is built with a high-performance network intelligent chip and features a fan-less silent structure, effectively eliminating noise interference in office scenarios.
It is equipped with 24 Gigabit RJ45 ports supporting 10/100/1000M adaptive connection and one-key smart mode switching, delivering stable and easy-to-manage network performance for daily networking and engineering applications.
Compliant with mainstream Ethernet standards, it ensures wide compatibility and reliable data transmission for various network environments.
Specification
|
Product Name
|
24 Port 10/100/1000Mbps Desktop Type Ethernet Switch
|
|
Port
|
24x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)
|
|
Switching Capacity
|
48Gbps
|
|
Throughput
|
35.71Mpps
|
|
Packet Buffer
|
4M
|
|
MAC Address
|
8K
|
|
Jumbo Frame
|
4Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network Protocol
|
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3x(Flow control)
|
|
Industry Standard
|
EMI: FCC Part 15 CISPR(EN55032)class A
EMS: EN61000-4-2(ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|

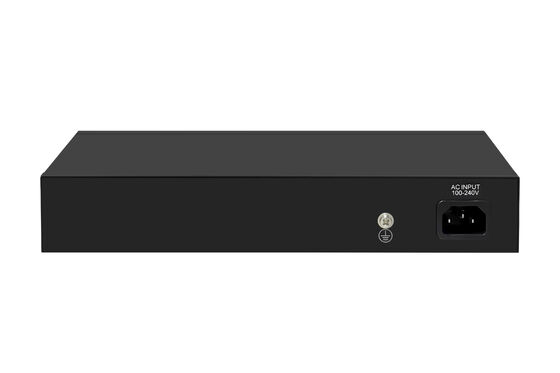

Input Voltage
|
AC100-240V, Single Power Input
Internal AC-DC Converter: 12V2A
|
|
LED Indicators
|
PWR(Power indicator)/LOOP(Loop alarm)/Link(Network Link)/1000M
|
|
DIP Switch
|
VLAN: Port Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24
Default: Default mode, support loop alarm
Extend: Monitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10M/s mode, port 23/24 as uplink port
|
Key Features
- 24*10/ 100/ 1000M RJ45 Ports
- Apply to IEEE802.3, IEEE802.3u, IEEE802.3ab standard
- Ethernet port supports 10/100/1000M adaptive
- Support auto MDI/ MDIX
- Panel indicators to monitor working status and help fault analysis
- One-key smart switch, support VLAN, Default, Extend three modes
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
- Port 1-8 supports QoS data priority
- Support loop alarm
Packing Information
- 1pc switch(neutral device)
- 1pc power cable(standards vary across countries)
- 1pc user manual(including QIG information)
- 1pair mounting brackets(rack mountable)
Shipping box information(Below information is approximately accurate)
Product size: 270*180*44.5mm
Inner box size: 312*262*84mm
Product weight: 1.16Kg
Packing weight: 1.66Kg
Master box size: 540*435*332mm
Packing quantity: 10Pcs
Packing weight: 17.6Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power cable is included in BOTH the packing box AND unit pricing
