8 Port Layer 2 Manageable 2.5G Fiber Switch
Specification
|
Product Name
|
10/100/1000Mbps Managed Industrial Fiber Switch(2F+6TP)
|
|
Model No.
|
IM-FS260GW
|
|
Port
|
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
6*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
|
|
Switching Features
|
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 22Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
|
Network Media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LEDs
|
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|
|
Power Supply
|

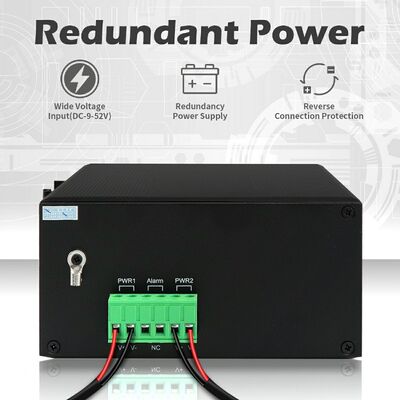

Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V
Reverse connection: support
|
|
Power Consumption
|
Full loading≤5W
|
|
Environment
|
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
|
Mechanical Information
|
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm

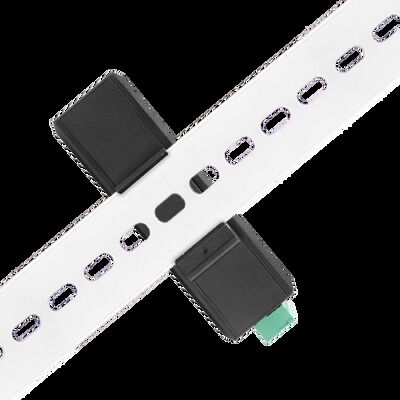

Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
|
Warranty
|
3 years, lifetime technical support
|
Key Features
1. Versatile Port Configuration: 2 x 2.5Gbps SFP fiber ports (SM/MM compatible, 500m–120Km transmission) + 6 x 10/100/1000M UTP RJ45 ports (auto-sensing MDI/MDIX), facilitating seamless connection of fiber and copper networks for industrial terminals.
2. Advanced Ring & Spanning Tree Support: Compliant with ITU-T G.8032 Ethernet Protection Ring (EPR) and IEEE 802.1d STP/802.1w RSTP/802.1s MSTP protocols, ensuring fast network recovery (ideal for ring topologies) and loop prevention in critical applications.
3. High-Efficiency Data Processing: Adopts a store-and-forward transmission mode with <10us forwarding delay, 22Gbps non-blocking system bandwidth, 19.344Mpps forwarding rate, 8K MAC address table, 4096 VLAN IDs, and 4Mb packet buffer—supports jumbo frames up to 9.6KB for smooth large-data transmission.
4. Robust Hardware Specifications: Equipped with 128M DRAM and 16M Flash memory, enhancing data processing and storage capabilities for stable network operation.
5. Rugged Environmental Adaptability: Corrugated metal shell with IP40 dust protection, 6KV surge protection (IEC 61000-4-5: Differential ±2KV, Common ±6KV), and resistance to ESD (±15KV air, ±6KV contact) and EFT (±6KV). Operates in -40°C～75°C working temperature and -40°C～85°C storage temperature, with 10%～95% non-condensing humidity—suitable for harsh outdoor and industrial environments.
6. Comprehensive Network Management: Supports Web GUI, Cisco®-like CLI, SNMP v1/v2c/v3, and Telnet for intuitive configuration. Features cable diagnosis (fault point location), IEEE 802.3az Energy Efficient Ethernet (EEE) for power optimization, and advanced functions including VLAN (802.1q), dynamic/static link aggregation (LACP), QoS, and storm suppression.
7. Strong Security Mechanisms: Integrates IEEE 802.1X authentication, RADIUS, ACL, TACACS+, and HTTPS/SSL/SSH v2 encryption to safeguard network access and data transmission. Supports software upgrade via TFTP/HTTP with firmware redundancy, DHCP client/Relay/Snooping, RMON, MIB II, and IPv6 compatibility for future-proofing.
8. Flexible Installation & Compliance: Supports Din-rail or Wall mounting, with a compact dimension of 15811560mm (net weight 0.75Kg) for easy integration into tight control cabinets. Complies with CE-EMC (EN 55032/55035), CE-LVD (EN IEC 62368-1), and FCC (47 CFR Part 15 Subpart B Class B) certifications, meeting strict industrial standards.
9. Long-Distance Connectivity: Fiber ports support transmission distances up to 120Km (single-mode), while RJ45 ports work with CAT3/CAT4/CAT5 (10BASE-T) and CAT5+ (100/1000BASE-TX) cables for up to 100m—ideal for large-scale industrial site deployments.
Overview
The Olycom IM-FS260GW is a high-performance 8 Port L2+ Ring Managed Industrial Ethernet Switch tailored for stable and resilient network connectivity in harsh industrial settings.
It features 2 x 100/1000/2500Mbps SFP fiber ports (supporting both single-mode and multi-mode fiber with transmission distances ranging from 500m to 120Km) and 6 x auto-sensing 10/100/1000Mbps UTP RJ45 ports (fully compatible with MDI/MDIX), enabling flexible fiber-to-copper integration for diverse industrial devices.
Engineered to withstand extreme conditions, the switch operates within a temperature range of -40°C to 75°C, holds an IP40 protection rating, and is equipped with 6KV Ethernet surge protection—meeting EMC industrial-grade requirements and complying with FCC and CE standards. With a non-blocking system bandwidth of 22Gbps and support for advanced ring network protocols, it ensures efficient data transmission and rapid fault recovery, making it a reliable choice for critical industrial infrastructure and large-scale network deployments.
It also offers a 3-year warranty and lifetime technical support for long-term operational peace of mind.
Application
1. Automation-Centric Industrial Networks
Deployed as a communication backbone within automated production environments, enabling seamless interaction between control units, sensing devices, and industrial equipment. Ensures consistent data availability for operational control, diagnostics, and production oversight.
2. Transportation and Public Infrastructure Systems
Applied across road traffic and railway communication environments where network continuity is critical. Ring-based architectures with rapid recovery mechanisms help maintain system availability for traffic signaling and rail operation, even under link or node failure conditions.
3. Fiber-Enabled Private Communication Networks
Positioned within optical communication infrastructures and enterprise-grade private networks to support high-capacity data transport. Fiber SFP interfaces allow reliable, long-distance connectivity between geographically dispersed facilities and network nodes.
4. Remote Industrial Assets and Supervisory Networks
Supports connectivity for remote and unmanned industrial installations such as utility stations, mining sites, and energy production facilities. Designed to operate reliably in challenging environments while enabling centralized monitoring and remote configuration.
5. Outdoor Surveillance and Access Networks
Installed in outdoor cabinets for security and monitoring applications, providing stable network access for IP cameras, wireless devices, and edge monitoring systems. Industrial-grade protection ensures continuous operation under electrical surges and extreme weather conditions.
6. Enterprise-Scale Industrial Connectivity
Serves as a networking foundation for industrial campuses, logistics operations, and industrial parks, supporting segmented network architectures and prioritized traffic handling to accommodate diverse business and operational services.
Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
FAQ
1, What chip is it based?
Olycom: Vitesse
2, Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
3, Can I connect it with 10/100M devices?
Olycom: Yes
For LAN ports, they are 10/100/1000M auto-sensing
For Fiber ports, please configure 100Mbps speed via Web GUI or CLI
4, Do you do SKD/CKD?
A: Yes
As a factory, we have dealt with this many times.
