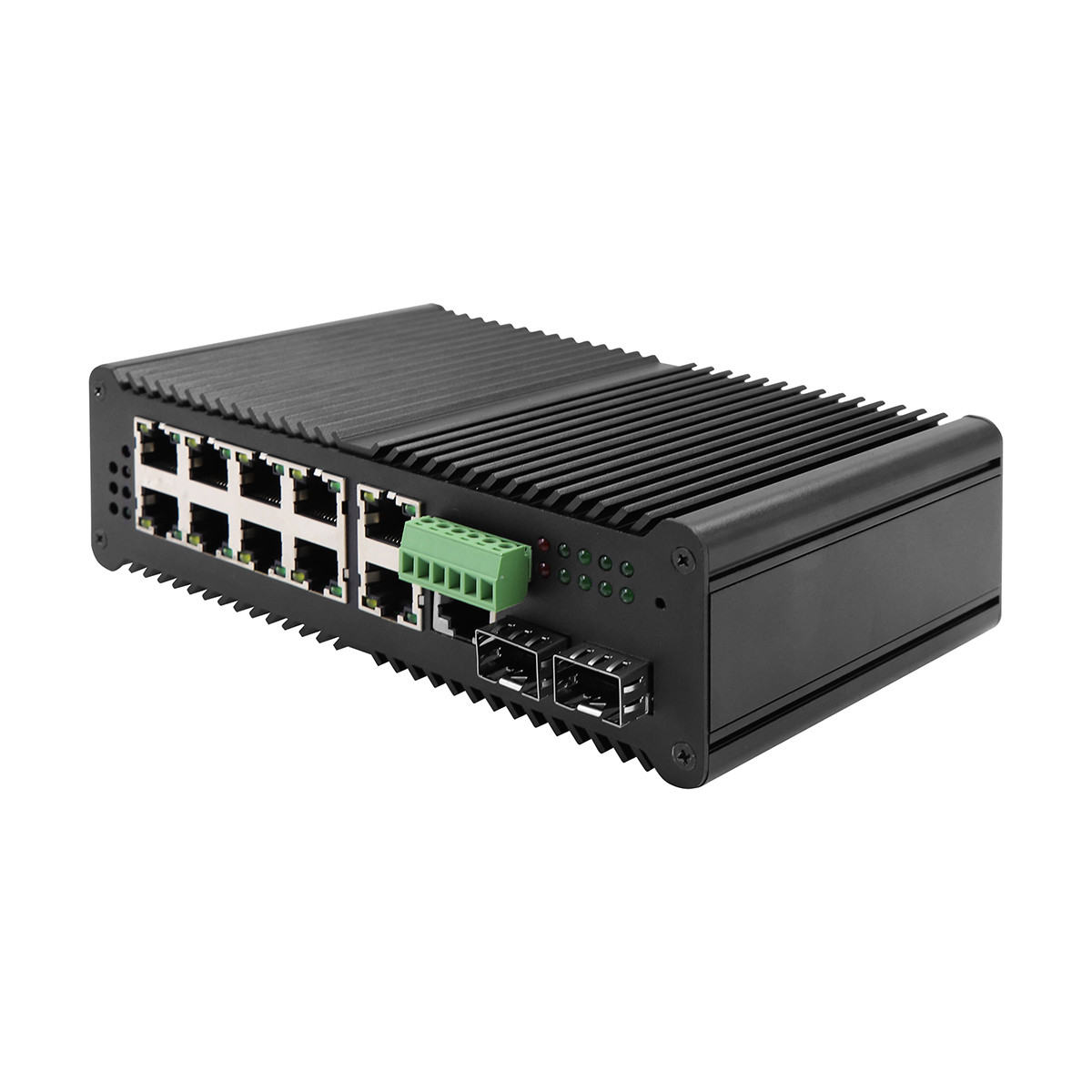

8 Port Industrial Managed Ethernet Switch With two 1000Mbps COMBO Ports
Introduction
IM-FS21000GW is the 10/100/1000 MbpsIndustrial Managed Ethernet Switch , operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, support web management, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP, IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL and so on.
Key Features

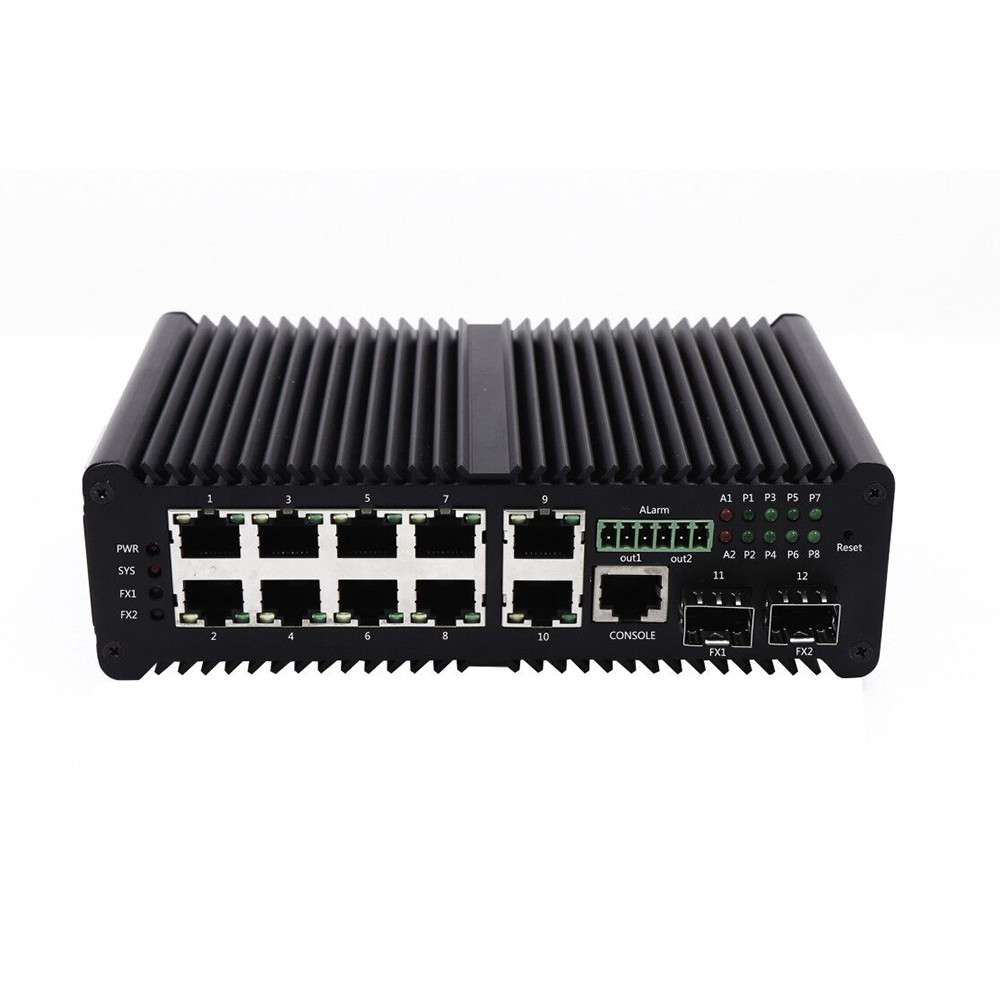

8 x 10/100/1000Mbps Auto-sensing RJ45 ports, 2 x 1000Mbps COMBO ports
2 x 1000Mbps SFP fiber ports, 1 x CONSOLE port for managed
Support cable diagnosis and can locate the fault point
Redundant dual DC input power supply 9VDC-52VDC
Product Spectification
| Product Name | Industrial Managed Ethernet Switch (2F+8TP) |
| Model No. | IM-FS21000GW |
| Port |
2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |

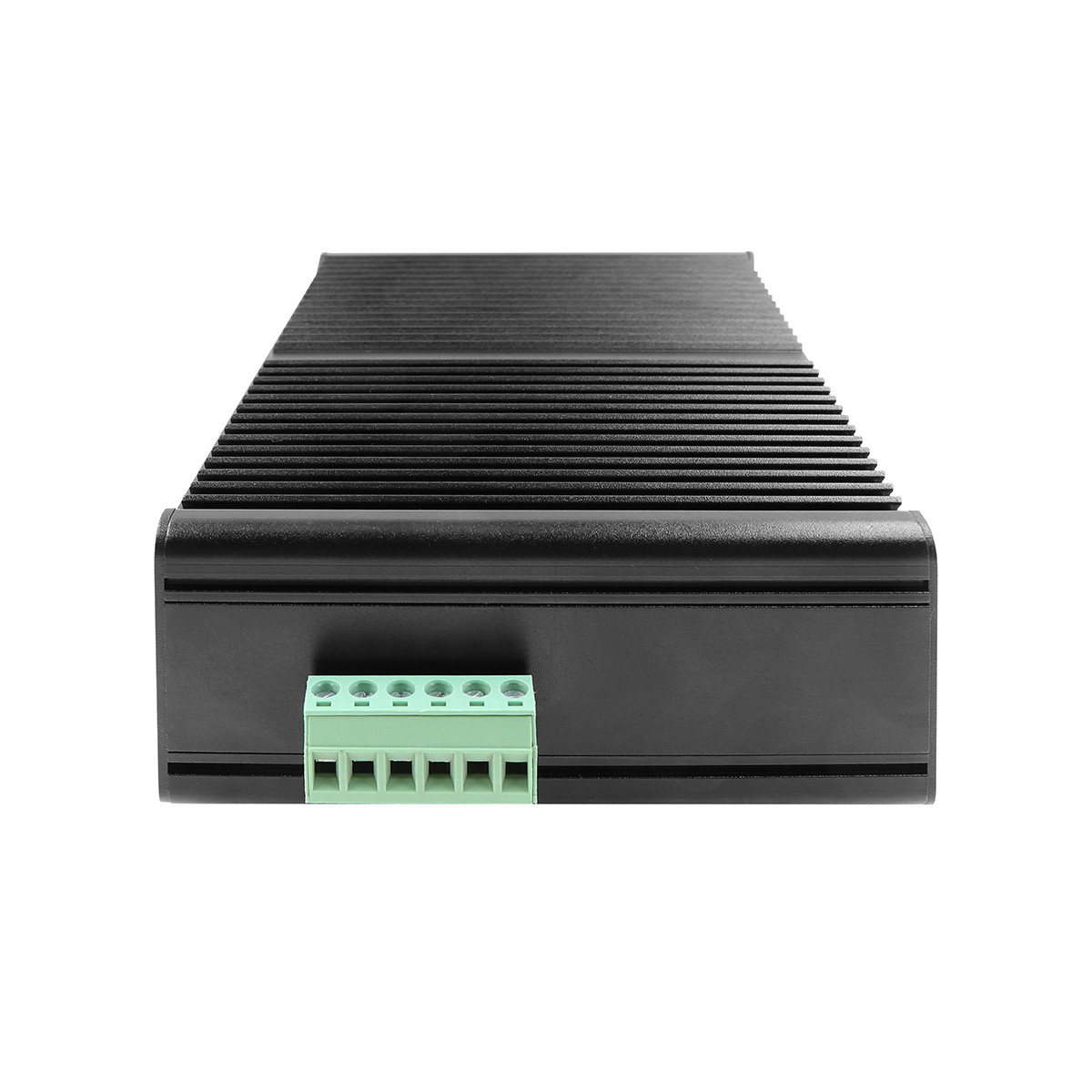

| Power supply |
Input voltage:DC 9-36V; No-load power:5W; Reverse connection: support |
| Environment | Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Poduct Application
Packing Details
1. One managed Layer 2 industrial fiber optical switch
2. One user manual
3. One managed cable
4. SFP module and power adapter need to order seperately
