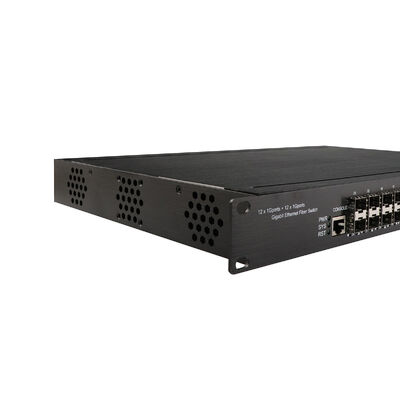

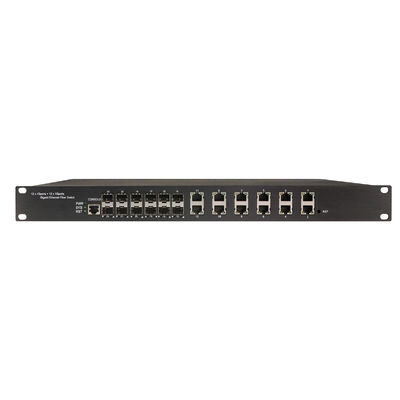

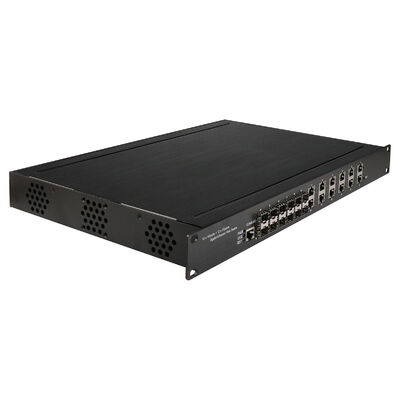

1U Rack 24 Port Managed Switch with 12RJ45+12SFP Ports IP30 Safety Class and IEEE802.3az EEE Industrial Ethernet Switch

1pc
MOQ
negotiable
Price
1U Rack 24 Port Managed Switch with 12RJ45+12SFP Ports IP30 Safety Class and IEEE802.3az EEE Industrial Ethernet Switch
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 24 Port Managed Switch
Power: AC100-240V
MAC Address Table Size: 8K
LEDs: Power, Network, Fiber
Safety Class: IP30
OEM: Accept
Highlight:

12RJ45+12SFP Industrial Managed Ethernet Switch

,

IP30 Safety Class 24 Port Managed Switch

,

IEEE802.3az EEE 1U Rack Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE FCC
Model Number: IM-FS121200GW
Payment & Shipping Terms
Packaging Details: Netural Packing
Delivery Time: 4~8 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description
1U Rack 24 Port Managed Industrial Ethernet Switch
Professional 12 RJ45 + 12 SFP managed industrial switch designed for demanding network environments with comprehensive management features and robust construction.
Key Features
  • 12 x 10/100/1000Mbps Auto-sensing TX RJ45 ports
  • 12 x 1000Mbps SFP fiber ports
  • Cable diagnosis with fault point location capability
  • IEEE802.3az EEE (Energy Efficient Ethernet) for optimized power consumption
  • Support for STP, RSTP, MSTP, and ITU-T G.8032 Ethernet Protection Ring (EPR)
  • Advanced QoS with transport classification, CoS, bidirectional bandwidth control, and storm suppression
  • Comprehensive VLAN support including IEEE802.1q, MAC-based, IP subnet, Protocol VLAN, VLAN convert, and MVR
  • Dynamic IEEE802.3ad LACP and static link aggregation
  • IGMP/MLD snooping V1/V2/V3 with filtering, modulating, and searching
  • Enhanced security with IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, and SSL/SSH v2
  • Multiple management options: Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Software upgrade via TFTP and HTTP with firmware redundancy protection
  • DHCP client/Relay/Snooping with option 82 support
  • Network monitoring with RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, and IEEE802.1ab LLDP
  • IPv6 support for Telnet server, ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, and ACL
Technical Specifications
Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (12F+12TP)
Model No. IM-FS121200GW
Port Configuration 12 x 1000Mbps SFP ports, 12 x 10/100/1000M UTP RJ45
Standards Compliance IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAN ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching Features Transmission mode: storage and forward
System bandwidth: 58Gbps (non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
Network Media 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair (≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair (≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LED Indicators Power, network, fiber
Power Supply Input voltage: AC100-240V
Non-polar power input support
Operating Environment Temperature: -40° to 75°C
Humidity: 5% to 95%, non-condensing
Industry Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A, EN61000-6-4
EMS: EN61000-6-2, EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Mechanical Information Safety class: IP30
Dimensions: 483 x 275 x 44.5mm
Warranty 3 years
Product Dimensions
1U Rack 24 Port Managed Switch with 12RJ45+12SFP Ports IP30 Safety Class and IEEE802.3az EEE Industrial Ethernet Switch 0
Packaging
1U Rack 24 Port Managed Switch with 12RJ45+12SFP Ports IP30 Safety Class and IEEE802.3az EEE Industrial Ethernet Switch 1
Application Scenarios
Security and monitoring solutions for critical infrastructure and industrial environments:
  • Public Safety: Smart city surveillance systems
  • Transportation: Highway security and automated charging systems
  • Institutional: Building and campus monitoring networks
  • Industrial: Comprehensive monitoring for airports, chemical plants, steel mills, oil facilities, railway systems, water conservancy projects, and mining operations
  • Military & Defense: Security systems for warehouses, border areas, guarded installations, and national defense
  • Critical Infrastructure: Dedicated monitoring networks for power grids, oilfields, and television broadcast transmission
