Unmanaged 2.5G Ethernet Switch with 60Gbps Backplane Bandwidth and 10G Uplink SFP Port for Business Networks

1pc
MOQ
negotiable
Price
Unmanaged 2.5G Ethernet Switch with 60Gbps Backplane Bandwidth and 10G Uplink SFP Port for Business Networks
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 9 Port Unmanaged 2.5G Ethernet Switch
Backplane Bandwidth: 60Gbps
Ethernet Ports: 8*2.5G RJ45 Ports
Uplink Ports: 1*10Gbps Sfp+ Port
Forwarding Mode: Store Forward
OEM: Accept
Switch Input Voltage: DC 12V1.5A
Highlight:

60Gbps Backplane Bandwidth Fiber Optic Ethernet Switch

,

10G Uplink SFP Port 2.5G Ethernet Switch

,

8*2.5G RJ45 Ports Unmanaged Network Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE、FCC、RoHS
Model Number: OM1X80(2)GE V3
Payment & Shipping Terms
Packaging Details: Netural Packing
Delivery Time: 4~8 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description

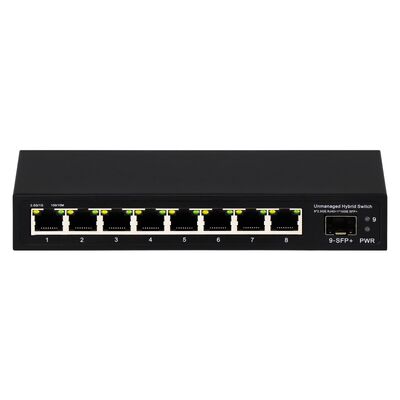

SFP+ Fiber Switch 9 Port Unmanaged 2.5G Ethernet Switch with 10G Uplink SFP Port
This professional 9-port unmanaged Ethernet switch combines 8*2.5G RJ45 ports with 1*10G SFP fiber port, delivering high-performance networking solutions for business environments.
Key Features
  • 8*10M/100M/1G/2.5G RJ45 ports with auto-negotiation
  • 1*1G/2.5G/10G SFP fiber port for high-speed uplinks
  • Comprehensive protocol support including IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, and 802.3x
  • Automatic MDI/MDIX port rollover for simplified cabling
  • Panel indicators for real-time status monitoring and troubleshooting
  • Advanced flow control with IEEE802.3x (full duplex) and Backpressure (half duplex)
  • Robust lightning protection: common mode 6KV; electrostatic air 8KV, contact 6KV
Unmanaged 2.5G Ethernet Switch with 60Gbps Backplane Bandwidth and 10G Uplink SFP Port for Business Networks 0
Technical Specifications
Input/Output Interface
Power DC 2.1
Ethernet 8*2.5G RJ45 ports, 1*10G SFP ports
Performance
Backplane Bandwidth 60Gbps
Packet Forwarding Rate 44.64Mpps
VLAN 4096
MAC Address Table 4K
Jumbo Frame 12Kbytes
Forwarding Mode Store Forward
MTBF 100,000 Hours
Network Parameters
Network Protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10G Ethernet), IEEE802.3x (Flow Control)
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium 10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m)
100Base-TX: Cat5 or higher UTP/STP (≤100m)
1000Base-TX: Cat5 or higher UTP/STP (≤100m)
Optical Fiber Medium Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certification CE, FCC, RoHS
Environmental Standards
Working Environment Operating temperature: -10°C to 50°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% to 90%, no condensation
Storage humidity: 5% to 95%, no condensation

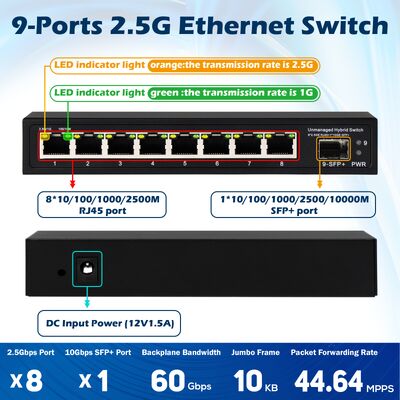

Functional Indicators
PWR (Power Indicator) On: Powered on, Off: Powered off
Ports 1-8 Right Indicator Green on: 10/100M Link connect normal, Off: Link off, Flashing: data transmitting
Ports 1-8 Left Indicator Yellow On: 2.5G Link connect normal, Green on: 1.25G Link connect normal, Off: Link off, Flashing: data transmitting
Port 9 Fiber Indicator On: 10G Link connect normal, Off: Link off, Flashing: data transmitting
Physical Specifications
Structural Dimension Product size: 175*70*28mm
Package size: 197*170*40mm
Product weight: 0.35KG
Packing weight: 0.55KG
Operating Voltage Adapter input voltage: AC 100-240V
Switch input voltage: DC 12V 1.5A

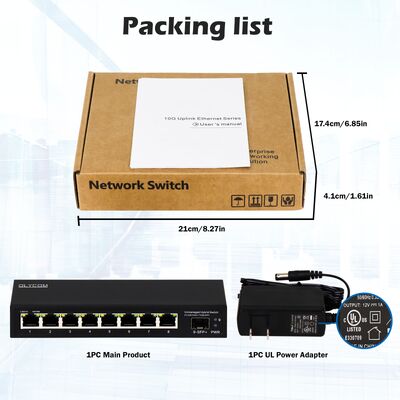

Packing List
  • Switch: 1 piece
  • Specification: 1 piece
  • Certificate of qualification: 1 piece
  • Power adapter: 1 piece
Unmanaged 2.5G Ethernet Switch with 60Gbps Backplane Bandwidth and 10G Uplink SFP Port for Business Networks 1

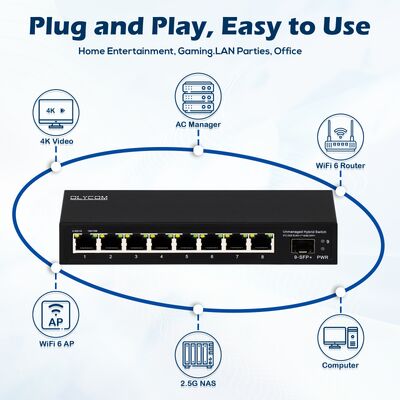

Applications
Unmanaged 2.5G Ethernet Switch with 60Gbps Backplane Bandwidth and 10G Uplink SFP Port for Business Networks 2
  • Metropolitan area optical fiber broadband networks: telecommunications, cable TV, network system integration
  • Broadband private networks: financial, government, oil, electric power, public security, education sectors
  • Multimedia transmission: image, voice and data integrated transmission for remote teaching, video conferencing, and video phone applications
  • Real-time monitoring: control signal, image and data transmission for surveillance systems
Frequently Asked Questions
Are you a manufacturer?
Yes, we have our own production line and R&D team. Please visit us via our VR link to see our office and production area: View Our Facility
What is the lead time if I order?
After receiving payment, we begin production. Popular models are typically in stock and shipped after testing. For out-of-stock items, production time is 3-5 working days for quantities under 50 pieces.
How will you ship my order?
We ship via air (DHL, UPS or FEDEX) or by sea for bulk orders. We can also use your shipping account or forwarder. Delivery typically takes 3-5 calendar days to reach local customs.
What is the minimum order quantity (MOQ)?
1 piece/pair. For many models, we have stock available and can easily send samples for testing.
Can I have a discount?
Yes, discounts are typically based on order quantity and after sample testing.
