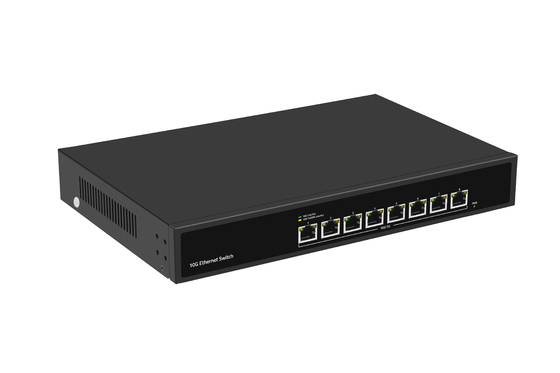

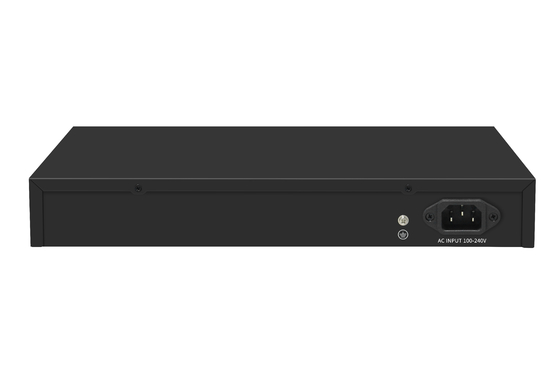

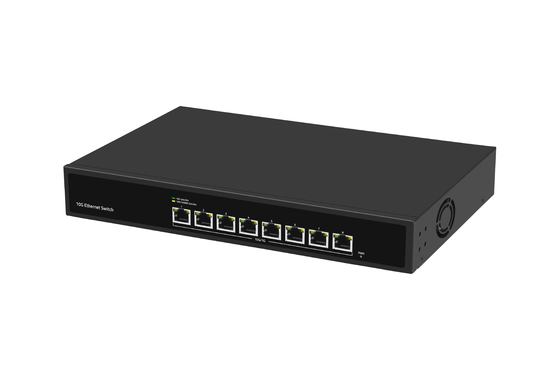

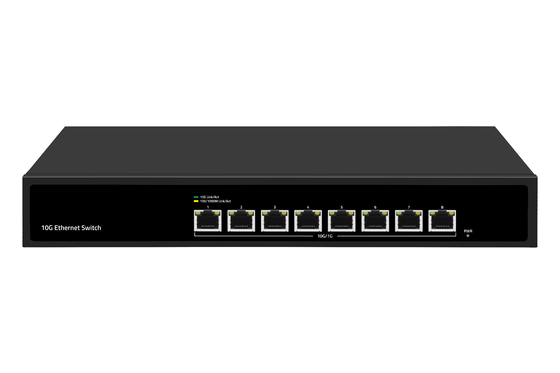

8 Port 10G Ethernet Switch 8*10G Ethernet Ports Support 100/1000M/2500M/5G/10G

Technical Specification

I/O Interface

AC100-240V 50/60Hz

Ethernet

8* 10G Ethernet ports

Chip Scheme

RTL9303+RTL8261N

Performance

Exchange capacity

160Gbps

Packet Forwarding Rate

119.04Mpps

RAM

128 MByte

Flash Memory

16MByte

Memory Cache

12MBit

Mac Address Table

16K

Jumbo frame

12Kbyte

Standard

Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3az (Efficient and energy-saving Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

IEEE802.3 bz (2.5G/5G Ethernet standard)

Industry standards

EMS: EN61000-4-2 (ESD),

EN61000-4-5 (Surge)

Network Medium

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

10000Base-TX : Cat7 or above UTP(≤100m)

Certification

Safety certification

CE, FCC, RoHS

Environment Standard

Working environment

Working temperature: - 10~50 ° C

Storage temperature: - 40~70 ° C

Working humidity: 10%~90%, non condensing

Storage humidity: 5%~95%, non condensing

Functional indication

Power light

PWR(Power indication)

PWR (Power light)

On: Powered on

Off: Powered off

Port LED light (green)

On: 5G/10G link connection is normal

Flashing: Data transmission is normal

Off:  Link not working

Port LED (yellow)

On: 100/1000M link connection is normal

Flashing: Data transmission is normal

Off: Link not working

Physical specifications

Structure size

Product size: 320* 207* 45mm

Package size: 370* 290* 85mm

Net weight of product: 1.72KG

Gross weight of product: 2.12KG

Packing information

Outer box size: 445* 310* 390mm

Packing quantity: 5 Pcs

Packing weight: 11.6KG

Supply voltage

Working voltage: AC100-240 V, 50/60Hz

Power supply: 12V8A

Power

Maximum 38.6W

Packing list

1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ear
