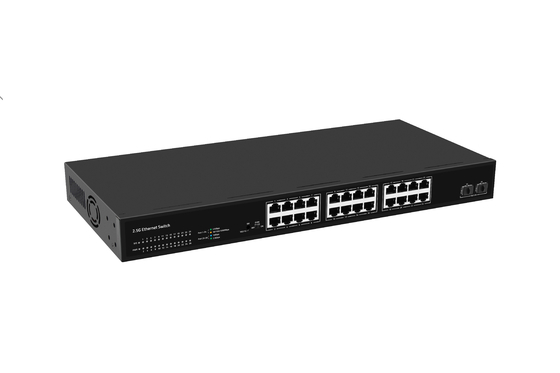

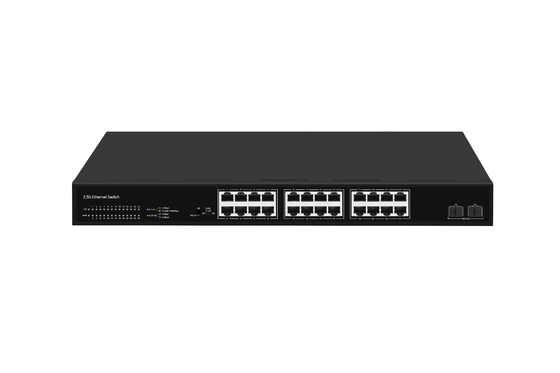

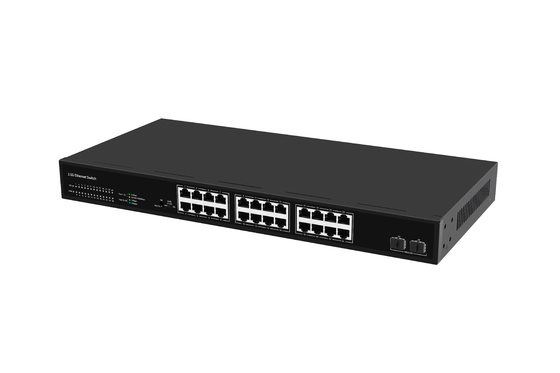

2.5G Ethernet Switch 24 port 10G Fiber Ethernet Switch Desktop 24*10/100/1000/2500M RJ45 ports+2*10G SFP+ ports

I/O Interface

Power

AC 100-240V

Ethernet

24* 100/1000/2500 Mbps RJ45 Ports

2* 10G SFP+ Ports

Performance

Bandwidth

160Gbps

Packet Forwarding Rate

119.04Mpps

MAC Address Table

16K

Transfer Method

Storage and forward

Standard

Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab(Gigabit Ethernet)

IEEE 802.3bz (5G Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

Industry Standard

EMS: EN61000-4-2 (ESD)

EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX: Cat5 or above UTP/STP(≤100m)

1000Base-TX: Cat5 or above UTP/STP(≤100m)

2.5GBase-T: Cat5e or above UTP/STP(≤100m)

5GBase-T: Cat6 or above UTP/STP(≤100m)

10GBase-T: Cat6a or above UTP/STP(≤100m)

Network Medium

1000BASE-SX: 62.5μm MMF(multi mode) (Minimum range:2m～275m) or 50μm MMF

1000BASE-LX: 62.5μm/50μm MMF(Minimum range:2m～550m) or 10μm SMF(Minimum range:2m～5km)

2500BASE-X: G.652D SMF(Single mode) (Minimum range:2m～500m or 2m～5Km)

10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range:2m～300m)

10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range:2m～10km)

Certificate

Safety Certificate

CE, FCC, RoHS

Environment standard

Working Environment

Working Temperature: 0~40°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Indicator

PWR

On: Powered on

Off: Powered off

1-24 ports

Green on: 2.5G Link connect normal

Yellow on: 10/100/1000M Link connect normal

Off: Link off

Flashing: Data transmitting

25-26 Ports Green LIght

On: 10G Link connect normal

Off: Link off

Flashing: Data transmitting

SM

The default speed of the optical port is 10G/2.5G, which changes to 10G/1G after pressing the switch button

Dialing

On: VLAN mode is enabled (ports 1 to 22 are isolated and can only communicate with the uplink port)

Off: VLAN mode is off (all ports can communicate with each other)

Physical Specification

Structure Size

Product Size: 440*205*44mm

Package Size: 500*290*85mm

Product Net-Weight: 2.61KG

Product Gross-Weight: 3.12KG

Packing Info

Carton size: 520*445*310mm

Packing Qty: 5 pcs

Packing weight: 16.6KG

Power Voltage

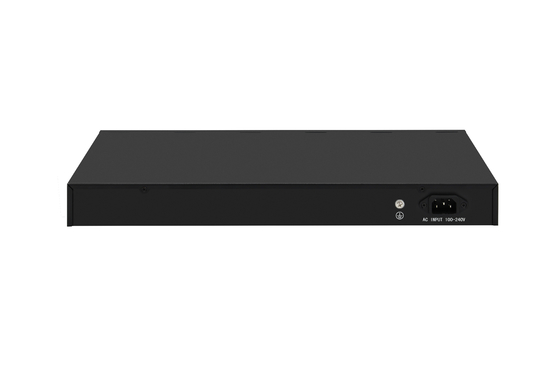

AC 100-240V  12V 4A

Power

Maximum 36W

Packing List

1 switch, 1 adapter, 1 manual, 1 certificate
