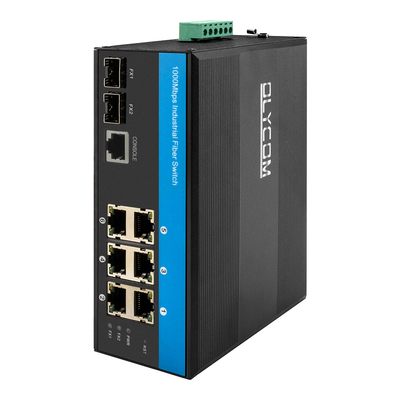

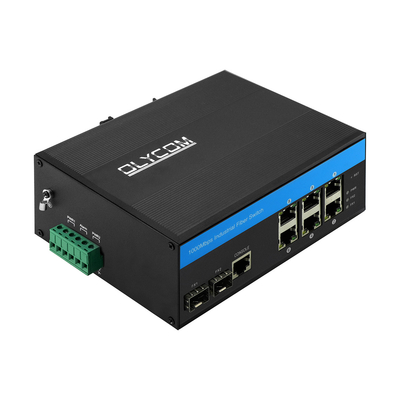

8 Port Gigabit Switch L2 Managed Vitesse Chipset Din Network Switch with 2SFP+6RJ45

8 Port Gigabit Switch L2 Managed Vitesse Chipset Din Network Switch with 2SFP+6RJ45

Key Features of 8 port Industrial switch

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
•  IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
•  6  x 10/100/1000Mbps Auto-sensing RJ45 ports
•  2  x 1000Mbps SFP fiber port
•  6KV Ethernet surge protection, adapt to a harsh outdoor environment
•  Support Auto MDI/MDIX
•  Flow control mode: full duplex with IEEE 802.3x standard,
• half-duplex with Back pressure standard
•  IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
•  A store-and-forward switching mechanism
•  Operating environment temperature:-40 ° ~75 ° c

Specification of Managed Industrial Full Gigabit Switch

Application

Packing box of Din rail managed switch:

• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a warranty card and a user manual.
• Packing box dimension for 1pc: 23*20.8*8cm
• 20pcs in a packing box of 55.5*40*41cm dimension.

FAQ

1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.

2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.

3. How can I install the device?

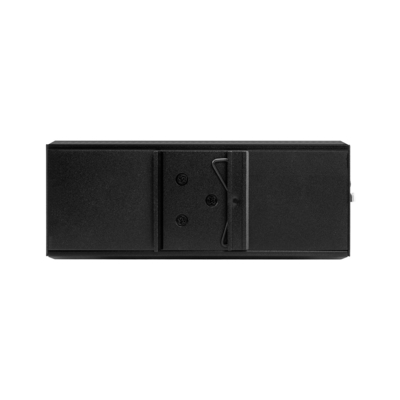

A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.

4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.

5. If possible to write the label as I want?
A: Yes, please just send the content and format, and we will print a sample piece for your confirmation.
The label is usually attached to the side panel.
