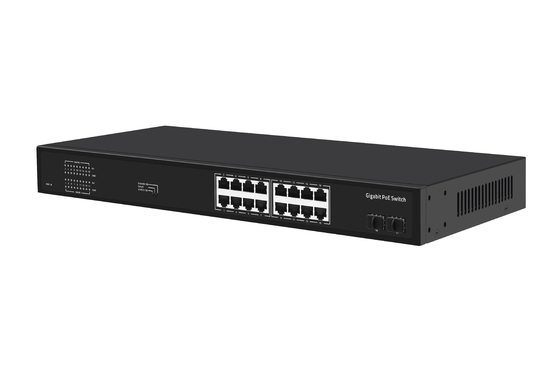

16 Port Gigabit Ethernet Switch Af/at Poe Switch AC 100-240V Power Input

1pc
MOQ
negotiable
Price
16 Port Gigabit Ethernet Switch Af/at Poe Switch AC 100-240V Power Input
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 16 Port Gigabit Poe Switch
Power: AC 100-240V
MAC Address Table Size: 8K
LEDs: Power, Network, Fiber
Switching Capacity: Switching Capacity
Safety Certificate: CE, FCC, RoHS
Highlight:

16 Port Gigabit Ethernet Switch

,

Af/at Gigabit Ethernet Switch

,

AC 100-240V Gigabit Ethernet Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM21616-PSE-GE
Document: OM21616-PSE-GE.pdf
Payment & Shipping Terms
Packaging Details: Netural Packing
Delivery Time: 4~8 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description


16 Port Gigabit Ethernet Switch Af/at Poe Switch AC 100-240V Power Input



Key Features of gigabit unmanaged POE switch


  • 16*10/100/1000M POE ports +2* Gigabit SFP Uplink Port；
  • Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab ,IEEE802.3z IEEE802.3x standards；
  • Ethernet port supports 10/100/1000M adaptive；
  • Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
  • Support port auto flip (Auto MDI/MDIX)；
  • Automatically supplied to adaptive devices；
  • Panel indicator monitoring status and help failure analysis；
  • Support for VLAN mode, Default mode and Extend mode；
  • 1 U rack installation


Specification of 16 port gigabit ethernet switch


I/O Interface

Power

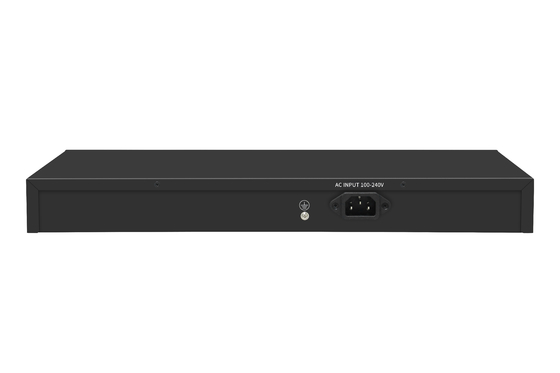

Input: AC 100-240V, 50/60Hz

Ethernet

16 *10/100/1000M PoE Port

2* Gigabit SFP Uplink Port

Chip solution

RTL8238B

Performance

Switching Capacity

36Gbps

Throughput

26.784Mpps

Packet Buffer

4Mbit

MAC Address

8K

Jumbo Frame

9.6Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)



PoE Protocol



IEEE802.3af (15.4W)

IEEE802.3at (30W)

Network Medium



10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Protection

Security Certificate

CE,FCC,RoHS

Environment

Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~95%,non-condensing

Indication

LED Indicators

PWR(power supply),1-18 ACT(Link&Data),1-18 1000M(Link)

PWR

Lighting:Powered

Un-Light:No Power

1-18 ACT(Link&Data)

Lighting:Connecting

Flashing:Data Transmit

Un-Light:Disconnect

1-18 1000M(Link)

Lighting:1000M

Un-Light:10/100M

DIP Switch

VLAN ,Default ,Extend

VLAN

Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default

Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend

Link extension mode, 9-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Mechanical

Structure Size

Product Dimension : 440*204*44mm

Package Dimension : 500*290*85mm

N.W:2.73Kg

G.W:3.30kg

Packing Info

Carton MEAS:520*445*310mm

Packing Qty:5 units

Packing Weight:17.5KG

Power Voltage

Input Voltage :AC 100-240 V

Power supply:52V5.76A

power

Product power: maximum 15W

POE power: maximum 280W

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair


Application

  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
  • Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
  • Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
16 Port Gigabit Ethernet Switch Af/at Poe Switch AC 100-240V Power Input 0

FAQ

1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2.What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
