Name: 24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM6X2400(2)GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 24 Port 2.5G Managed Switch

Fiber Speed: 6*1G/2.5G/10G

Copper Speed: 10/100/1000/2500Mbps

Feature: L3 Managed, Non-PoE

Power: AC Input(100-240V)

Chipset: Realtek

Highlight:

24 Port Ethernet L3 Managed Switch

2.5G Ethernet L3 Managed Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM6X2400(2)GW

Payment & Shipping Terms

Packaging Details: 1 piece in a carton, 4.8KG Gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000Pcs per month

Gallery

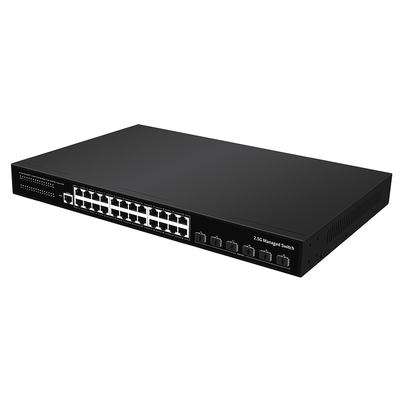

24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input

Product Description

Olycom 10G Uplink 24 Port 2.5G L3 Managed Ethernet Switch

Features of 2.5G Managed Switch

Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standards
L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2
Support STP/RSTP/MSTP (ERPS), support loop detection and self-healing, support remote loop back monitoring and control(802.3ah OAM); support IPV4/IPV6,RIP,OSP
Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN
Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection
Support IPV4/IPV6, RIP v1/v2, OSPF v2
Supports WEB, TELNET, CLI, SSH, SNMP, RMON management
Support Port Surge Protection: Common Mode 6KV, Differential Mode 2KV; ESD: Contact 6KV, Air 8KV

24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input 0

Specification of 10G L3 Switch

I/O Interface
Power	AC100-240V/50-60Hz
Ethernet	24* 100/1000/2500 Mbps RJ45 Ports 6* 10G SFP+ Ports 1* RJ45 Console Port
Performance
Bandwidth	240Gbps
Packet Buffer Memory	178.56Mpps
DDR SDRAM	512MByte
Flash Memory	32MByte
Package Cache	16Mbit
MAC Address Table	32K
Jumbo frame	10Kbytes
VLANs	VLAN range 1-4094, with a maximum active VLAN of 4K
Standard
Network Protocol	IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP
Industry Standard	EMS: EN61000-4-2(ESD) EN61000-4-5(Surge)
Network Medium	10BASE-T: Cat3, 4, 5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Optic Medium	Multimode fiber: 50/125, 62.5/125, 100/140um Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certificate	CE, FCC, RoHS
Environment
Working Environment	Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing

Software Features

L3 Function
IPv4	IPv4 VLAN Interface
	IPv4 Static Routes
	ARP
IPv6	IPv6 VLAN Interface
	IPv6 Static Routes
	IPv6 ND
RIP	V1/V2
OSPF	Router-ID
	Authentication
	v2

L2 Function
Port	Port Switch
	Port Description
	Port Speed
	Port Duplex
	Port Flow Control
	Jumbo, Up to 10K
	Support 10G/2.5G (2023.3.2)
	Fiber Module(DDM)
Link Aggregation	Supports load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	Supports LACP
	Up to 8 groups
Storm Control	Broadcast
	Unknown Multicast
	Unknown Uni-cast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
	Port Security MAC Address
	Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel (Q-in-Q Tunnel)
	Configurable VID from 1 - 4094; Max. 4K static VLAN groups
	Voice VLAN
	MAC VLAN
	Surveillance VLAN
	Protocol VLAN
	GVRP
MAC Address	Dynamic Address
	Static Address
	Filtering Address
Spanning Tree Protocol	STP/RSTP/MSTP
	BPDU Filter
	BPDU Guard
	Edge Port
LLDP	LLDP
	LLDP MED
Multicast	IGMP Snooping
	IGMP V1/V2/V3
	Router Port
	Static IGMP group address
	IGMP groups filtering
	Queerer
	MLD Snooping
	MVR
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	802.1P Priority
	IP TOS Priority
	IP DSCP Priority
	Supports up to 8 queues per port
	Priority Remarking
Services
DHCP	DHCP Server
	IP Pool
	Static Binding
	DHCP Relay
	Option 43
Access Protocol	HTTP
	HTTPS
	Telnet
	SSHv2
	Manager ACL
	Session Timeout
	Password Retry Count
	Silent Time
Security
AAA	RADIUS
	TACACS+
	802.1X
	Base on port/MAC/local/WEB
DHCP Snooping	Global/VLAN
	Option 82
	Circuit ID
IP Source Guard
Dynamic ARP Inspection
DOS Anti Attack
ACL	MAC ACL
	IPv4 ACL
	IPv6 ACL
Diagnostics
Sys log	Logging Message
	Remote Server
Ping
Trace route
Copper Test
UDLD
Management
Manager Access	Console
	HTTP/HTTPS
	Telnet
	SSH
	SNMP
Manager IP	Static Address
	DHCP Client
	Supports IPv4 and IPv6 address
	Manager VLAN
	DNS
Time Synchronization	SNTP
	Manual Time
SNMP	V1/V2C/V3
	Community
	V3 User
	Group
	Trap Host
SNMP MIB	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2863 Interface MIB
	LLDP
	Private MIB
RMON	Statistics
	History
	Event
	Alarm
User
Firmware	Firmware Upgrade
Configuration	Upload and download
	Upload and download via USB interface
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2

Dimension of 10G Fiber Switch

24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input 1

Indication
PWR	On: Power on Off: Power off
SYS	On: The system is operating normally Flashing: System startup in progress
Warning light	System temperature or voltage abnormal alarm
Link Port light	Green on: 2.5G Link Yellow on: 100/1000M Link On: Link transiting Off: Link not transiting
SFP Port light	Blue on: 10G Link Green on: 2.5G Link Flashing: Link transiting Off: Link not transiting
Reset button	Short press for less than 5 seconds to restart Long press for more than 5 seconds to reset to factory default

Physical Specifications
Structure Size	Product Dimensions:44028144mm Package Dimensions:50036585mm Product N.W:4.02KG Product G.W:4.79KG
Packing Info	Carton Dimensions:520445385mm Packing Qantity:5psc Packing weight: 24.95KG
Power Voltage	Working voltage: AC100-240V 50/60Hz Power supply: DC 12V5A
Power Consumption	Total consumption: maximum 52W
Package List	Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS Serial cable: 1PCS, Rack ear: 1 Pairs

24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input 2

24 Port 2.5G Ethernet L3 Managed Switch With 10G Fiber Uplink Single AC Input 3
