5 Port Gigabit Solar PoE Switch Optical Fiber Switch DC12V/24V/48V Input

1 pc
MOQ
Negotiable
Price
5 Port Gigabit Solar PoE Switch Optical Fiber Switch DC12V/24V/48V Input
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 5 Port Gigabit Solar PoE Switch
Surge Protection: ±6KV

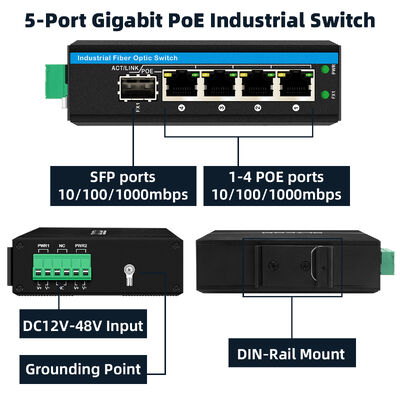

Port: 4RJ45+1SFP
Installation: Din-rail/Wall Mounting
Power Budget: 120W
Highlight:

Din rail network switch

,

DC12V/24V Input Ethernet Switch

,

6 Port Ethernet Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP144BGE
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 3000pcs/month
Product Description

5 Port Gigabit Solar PoE Switch Optical Fiber Switch DC12V/24V/48V Input


Key Features of  5 Port gigabit solar poe switch


  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at/bt power on to 1 ~ 4 RJ45 ports
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000Mbps SFP fiber port
  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c

5 Port Gigabit Solar PoE Switch Optical Fiber Switch DC12V/24V/48V Input 0


Specificaiton of Optical Fiber Switch

Product Name

10/100/1000Mbps Industrial  Solar PoE Switch (1F+4TP)

Model No.

IM-FP144BGE

Port

1x 100/1000Mpbs SFP ports

SM:1310nm/1550nm,20Km

           1490nm/1550nm,40~120Km

MM:1310nm,2Km

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: Storage and forward

Forwarding delay: <10us

System bandwidth: 10Gbps(non-traffic jam)

Forwarding rate: 14.88Mpps

MAC: 2K

Packet buffer size: 1.75Mb

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs

Power, network, fiber

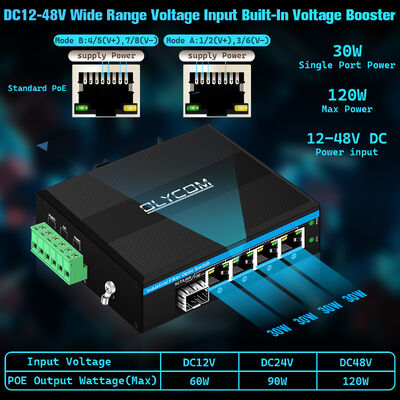

Power Supply

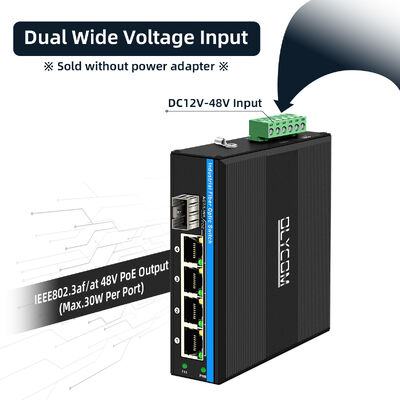

Power supply input voltage: DC12V-48V

Single PoE power supply output power: 15.4W/30W (port 1~4)

Total PoE budget: 120W (48VDC input)

Total PoE budget: 90W (24VDC input)

Total PoE budget: 60W (12VDC input)

PoE output voltage: DC48V, active PoE

Environment

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4

Safety

CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension:  113.8 x 93 x 46mm

Mounting method:Din-rail mounting

Warranty

 3 years

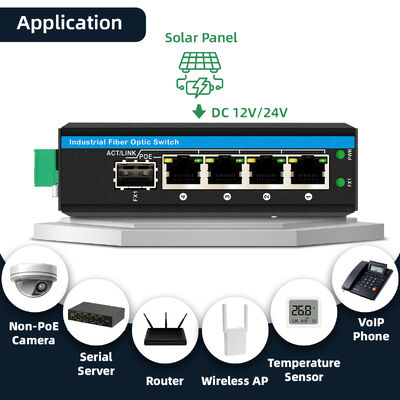

Application


5 Port Gigabit Solar PoE Switch Optical Fiber Switch DC12V/24V/48V Input 1

Ordering Details:

IM-WP054BGE
1*100M/1000M Copper Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input
Web Managed Features are available
IM-FP144BGE
1*100M/1000M SFP Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input
Web Managed Features are available
IM-FP244BGE
2*100M/1000M SFP Uplink+4*10/100/1000M PoE Downlink
4*PoE af/at, 240W PoE budget, DC12V/DC24V input
Web Managed Features are available


FAQ:


Q: Do you also offer accessories?

A: Yes, we also supply SFP transceiver, power supply and network cables, as a solution kit.


Q: Can Iconnect it with a non-PoE device?
A: Yes, it is 4*auto-sensing PoE ports detecting if the connected devices support PoE or not. There will ONLY be network transmission if it is not 802.3af or 802.3at compliant.

Q: Is it managed?
A:This model supports some web managed features such as VLAN, QoS, RSTP, Port Isolation...

Q: Where can I use it?

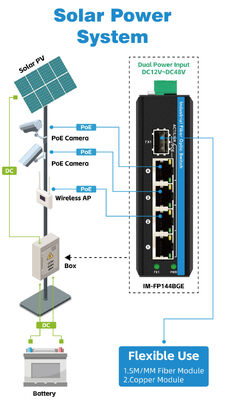

A: Below are some typical application examples. Solar power system(DC12V input) RV/Vehicle/Truck/Bus(DC12V input) VolP/Access control systems(DC24V input)
