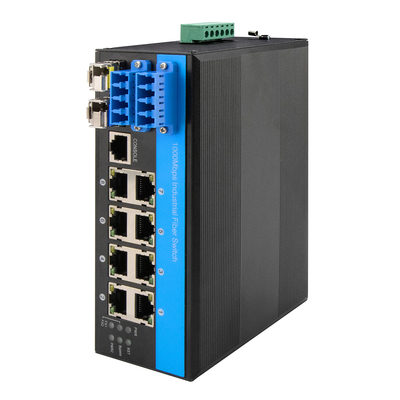

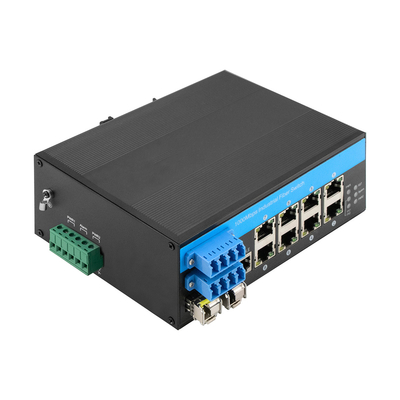

8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip

1pc
MOQ
negotiable
Price
8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Bypass Fiber Switch
Fiber Speed: 2 SFP Slots, 100/1G/2.5G
Copper Speed: 10/100/1000Mbps
Feature: L2 Managed, Non-PoE
Bypass Type: Singlemode Or Multimode
Chip: Vitesse
Highlight:

Vitesse Chip Industrial Managed Ethernet Switch

,

2.5G Industrial Managed Ethernet Switch

,

8 Port Industrial Managed Ethernet Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FBS280GW
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.9kg/pc gross weight
Delivery Time: 3~7 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

Web Managed Optical Fiber Bypass Switch



Introduction to Industrial Managed Switch



  • IM-FBS280GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting the following features
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000/2500Mbps SFP fiber ports, 2 x Bypass ports
  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Wide voltage dual power input
  • Web GUI management



Specification of Managed Ethernet Switch



Product Name 10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+8TP)
Model No. IM-FBS280GW
Port

2 x 1000Mpbs SFP port

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table 8K
Switching features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 58Gbps(non-traffic jam)

DRAM size: 128M

Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs Power, network, fiber, bypass
Power supply

Input voltage: DC 12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail/Wall mounting

Net weight/Gross weight: 0.75Kg/0.9Kg
Warranty Replacement within 1 year; 3 years repairing



8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip 0


Management Features



  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL



Optical Bypass Switch Features



Product Name Fiber Bypass Optical Switch
Power Interface Standard industrial terminal block.
Polarity Protection Support
Optical Fiber Interface LC
Wavelength Range 850±40/1300±40nm; 1260~1650nm
Test Wavelength 850/1300nm; 1310/1550nm
Insert Loss Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB
Return Loss MM≥30 dB SM≥50 dB
Channel Crosstalk MM≥35 dB SM≥55 dB
Polarization Loss ≤0.05 dB
Wavelength Loss ≤0.05 dB
Temperature Loss ≤0.05 dB
Repeatability ≤0.05 dB
Operating voltage 3.3V-5V
Service life ≥100000000 times
Switching time ≤10 ms
Transmission optical power ≤500 mw
Environment

Working temperature:-20°～ 70°C

Storage temperature:-40°～ 85°C



Connection Diagram



1. Duplex SFP optical module



8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip 1



2. Single-Fiber BI-DI SFP

8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip 2



FAQ



Does your switch support 155Mb/s tranceivers?

A: Yes, the optical speed is 100M/1000M/2500M. Please configure 100M speed in the management interface, megabit modules are working.



Is it possible to print my logo?

A: Yes, it is usually on the top panel of the device.



What is the power surge?

A: 6KV. This is the popular standard on the market now.



Do your switches support any ring protocols?

A: Yes, our switches support STP/RSTP/MSTP and ERPS for ring configuration.



Packing List



When using the product for the first time, please first check whether the package is complete and whether the accessories are complete!

  • 1 × Main equipment
  • 1 × Instruction manual
  • 1 × Warranty card
  • 1× Console cable

Note: Fiber transceiver and power adapter are NOT included in the package, you need to purchase individually.



Product Photos



8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip 3

8 Port Industrial Bypass Managed Ethernet Switch 2.5G Fiber Optical Protection Vitesse Chip 4
