10g Ethernet Switch Unmanaged 4 Port 2.5G Ethernet Switch With 10G SFP+ Ports

1pc
MOQ
negotiable
Price
10g Ethernet Switch Unmanaged 4 Port 2.5G Ethernet Switch With 10G SFP+ Ports
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 2.5g Unmanaged Ethernet Switch
Bandwidth: 45Gbps
Ethernet Ports: 4*2.5G RJ45 Ports
Uplink Ports: 2*10Gbps Sfp+ Port
OEM: Accept
Highlight:

10G SFP+ Ports ethernet switch

,

unmanaged 10g Ethernet Switch

,

4 Port 2.5G Ethernet Switch

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM2X40(2)GE V1
Payment & Shipping Terms
Packaging Details: Netural Packing
Delivery Time: 4~8 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description



10g ethernet switch unmanaged 4 port 2.5G ethernet switch with 10G SFP+ Ports


Key Features of 2.5g unmanaged switch



  • 4*10M/100M//1G/2.5G RJ45 ports
  • 2*1G/2.5G/10G SFP+ fiber ports
  • Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
  • Ethernet ports support 10/100/1000M/2.5G self-adaptive;
  • Support port Auto MDI/MDIX;
  • Panel indicator lights monitor working status and help failure analysis;
  • Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;
  • Support surge protection: common mode 6KV; ESD Air 8KV, contact 6KV.

10g Ethernet Switch Unmanaged 4 Port 2.5G Ethernet Switch With 10G SFP+ Ports 0


Specification of 4 port 2.5G Ethernet Switch


I/O Interface
Power DC 2.1
Ethernet

4*2.5G RJ45 Ports

2*10G SFP+ Ports

Performance
Bandwidth 45Gbps
Pack forward rate 33.48Mpps
VLAN 4096
MAC address 4K
Jumbo Frame 12Kbytes
Transfer mode Storage & forward
MTBF 100000 Hours
Standard
Network protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab(Gigabit Ethernet)

IEEE 802.3bz (5G Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

Industry standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX: Cat5 or above UTP/STP(≤100m)

1000Base-TX: Cat5 or above UTP/STP(≤100m)

Optical Medium

multi mode: 50/125, 62.5/125, 100/140um

Single mode: 8/125, 8.7/125, 9/125, 10/125um

Certificate
Safety certificate CE, FCC, RoHS
Environment Standard
Working environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~90%, non-condensing

Power voltage

Adapter input voltage: AC 100-240 V

switch input voltage: DC 12V1A

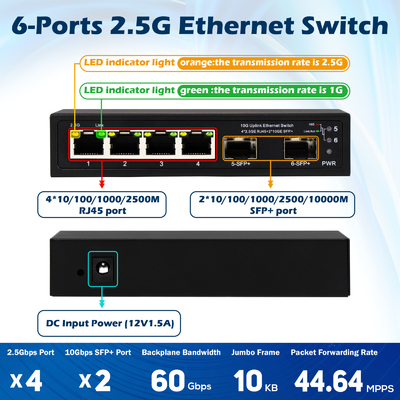

Indicator
PWR(Power indicator)

On: Powered on

Off: Powered off

1-4 Network port right indicator

Green on:10/100M Link connect normal

Off: Link off

Flashing: data transmitting

1-4 Network port left indicator

Yellow On: 2.5G Link connect normal, Green on: 1.25G Link connect normal

Off: Link off

5 and 6 fiber port indicator

Red On: 10G Link connect normal

Off: Link off

Red Flashing: data transmitting

Physical Specification

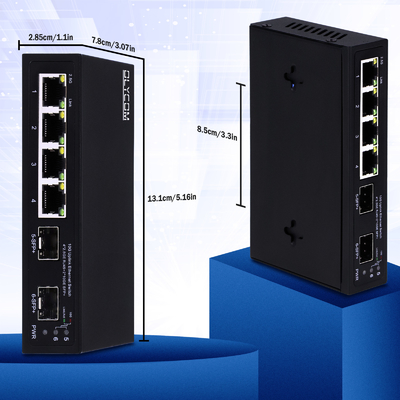

Structure size

Product Size: 140*93*28mm

Package Size: 203*160*55mm

Product Net-Weight: 0.33KG

Product Gross-Weight: 0.46KG

Packing info

Carton size: 580*335*445mm

Packing Qty: 40pcs

Packing weight: 19.5KG

Packaging list
  • Switch 1pcs,
  • User manual 1pcs,
  • Certificate 1pcs,
  • Power adapter 1pcs

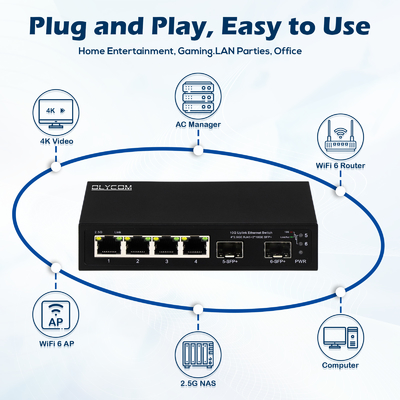

Connection

10g Ethernet Switch Unmanaged 4 Port 2.5G Ethernet Switch With 10G SFP+ Ports 1



Packing

10g Ethernet Switch Unmanaged 4 Port 2.5G Ethernet Switch With 10G SFP+ Ports 2


FAQ:



1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2.What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
