Home /Products/PLC IO Module/EtherCAT Protocol PAL I/O System EtherCAT Distributed Scalable Coupler 3 RJ45 16DI+16DO I/O Module

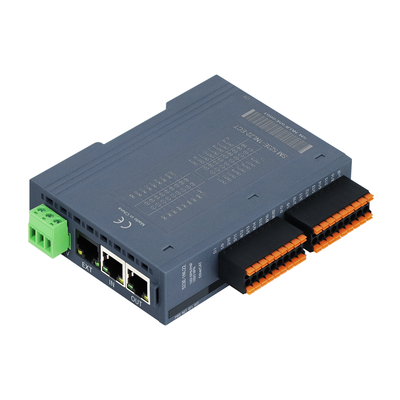

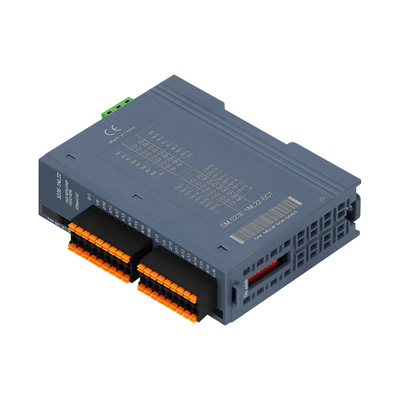

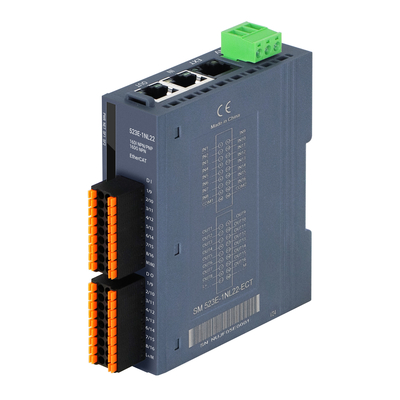

EtherCAT Protocol PAL I/O System EtherCAT Distributed Scalable Coupler 3 RJ45 16DI+16DO I/O Module

1 pc
MOQ
Negotiable
Price
EtherCAT Protocol PAL I/O System EtherCAT Distributed Scalable Coupler 3 RJ45 16DI+16DO I/O Module
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: EtherCAT Distributed Scalable Coupler
Working Voltage: 24VDC (voltage Range 18VDC~28VDC)
Bus Communication Interface: 2*RJ45
Expansion Module Interface: 1*RJ45
Sample: Available
OEM: Accept
Highlight:

3 RJ45 I/O Module

,

16DI+16DO I/O Module

,

EtherCAT Protocol PAL I/O System
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM523S-1NL22-ECT
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

EtherCAT Protocol PAL I/O System EtherCAT distributed scalable coupler

3 RJ45 16DI+16DO I/O Module



Product Features of PAL I/O System

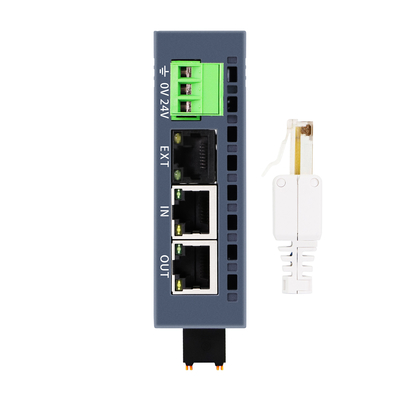

  • 3 RJ45 interfaces
  • EtherCAT protocol bus
  • Expandable up to 16 EM500E-EM modules
  • IP20Protection level



Specification of EtherCAT extensible coupler



Model Model OM52xE Distributed scalable coupler
Technical Specifications
Operating Voltage 24VDC (18VDC~28VDC)
Operating Current Consumption Different product models vary, please refer to the product manual for details.
Power Protection Anti-reverse connection protection, surge absorption
Bus Communication interface 2*RJ45
Expansion Module interface 1*RJ45
Power Terminal Type Plug-in connectors, screw terminals
Signal Terminal Type Plug-in connector, direct plug-in PUSH-IN connection port,or MIL horn socket
Display Instructions Power indicator light, NET green indicator light, SF red indicator light,IO signal green indicator light
Support Protocol EtherCAT
Master-Slave Category Independent slave device
Ontology IO Point Yes, see ordering data for details
Overcurrent Protection Threshold 1.5A,5ms
IO response Time Minimum 500us
Expansion Capabilities 16 EM500E-EM modules
Extended Connection Distance The total length is 150 meters, and the length between modules is limited to 20 meters.
Cable Length (shielded) Maximum 500m
Cable Length (Unshielded) The longest input point is 300m, the longest output point is 150m
Slave Settings
Address Settings Configured by DIP switch or master station
Maximum Number of Stations per Segment 255 (The specific number of supported stations is determined by the main station)
Working Environment
Working Temperature -20~60℃
Working Humidity 5%~90% (no condensing)
Altitude Altitude Below 2000 meters (80kPa) Below 2000 meters (80kPa)
Protection level IP20
Dimensions (L*W*H) 27mm*104mm*114mm



Packing



EtherCAT Protocol PAL I/O System EtherCAT Distributed Scalable Coupler 3 RJ45 16DI+16DO I/O Module 0



Ordering Details



Specification Product No.
OM523E vertical internal bus distributed expandable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length( limited to 20 meters), total extension cable total (limited to 150 meters), can be expanded to 16 modules, 24VDC power supply, with 8-digit dial code to set the station ID address, the body comes with 16DI (common cathode/common anode input), 16DO (NPN output), IP20 protection level,support DN35 rail installation





OM523E-1NL22-ECT
OM523E vertical internal bus distributed expandable coupler, EtherCAT bus, 2 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length ( limited to 20 meters), total extension cable total (limited to 150 meters), can be expanded to 16 modules, 24VDC power supply, with 8-digit dial code to set the station ID address, the body comes with 16DI (common cathode/common anode input), 16DO (NPN output), supports DN35 installation,MIL horn socket





OM523E-1NL22-ECT-MIL
OM523E vertical internal bus distributed expandable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length ( limited to 20 meters), total extension cable total (limited to 150 meters), can be expanded to 16 modules, 24VDC power supply, with 8-digit code to set the station ID address, the body comes with 16DI (common cathode/common anode input), 16DO (PNP output), IP20 protection level, Support DN35 rail installation





ON523E-1BL22-ECT
OM524E vertical internal bus distributed expandable coupler, EtherCAT bus, 3 RJ45 ports, WellAUBUS backplane bus (black RJ45 port network cable cascade, Category 5e network cable module length ( limited to 20 meters), total extension cable (limited to 150 meters), can be expanded to 16 modules, 24VDC power supply, with 8-digit dial code to set the station ID address, the body comes with 16DI (common cathode/common anode input), 16DIO (NPN input/NPN output configurable,2-channel configuration), IP20 protection level, supports DN35 rail installation





OM524E-2NL22-ECT



FAQ:



1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
