Home /Products/Fiber Optic Ethernet Switch/8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless

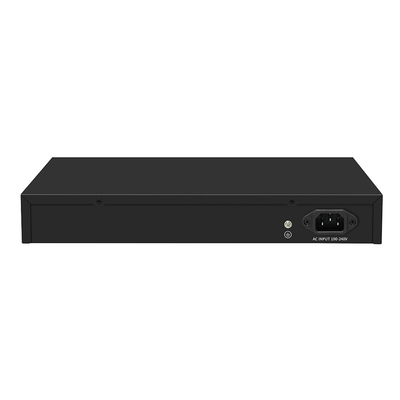

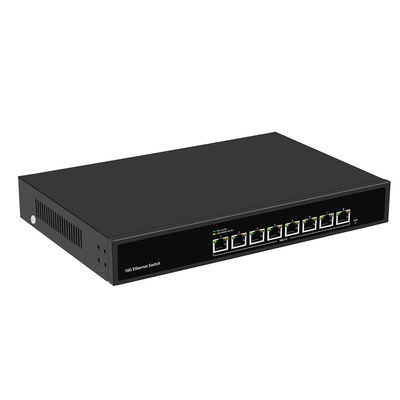

8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless

1pc
MOQ
negotiable
Price
8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 10G Network Switch
Port: 8*100M/1G/2.5G/5G/10G Copper
Feature: Unmanaged, Non-PoE
Power: Single AC Input
Highlight:

8 Port 10G Ethernet Switch

,

fanless 10G Ethernet Switch

,

Unmanaged 10G Ethernet Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM08X0GE
Document: IM-WP054BGE.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 2.12Kg G.W.
Delivery Time: 3~7 days
Payment Terms: T/T, PayPal
Supply Ability: 1000pcs/month
Product Description

8 Port 10G Commercial Network Switch



Features of Unmanaged Switch



  • 8* 10G Ethernet ports
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 bz, IEEE 802.3 ae, IEEE 802.3. x, IEEE 802.3az
  • Ethernet ports support 100/1000M/2500M/5G/10G self-adaptive
  • Support port automatic MDI/MDIX
  • Panel indicators monitor operating conditions and assist in fault analysis
  • Flow control mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex
  • Support surge protection: Common mode 6KV, class C; ESD: air 8KV, contact 6KV, class C



8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless 0



Description of 8 Port Ethernet Switch



Technical Specification
I/O Interface AC100-240V 50/60Hz
Ethernet 8* 10G Ethernet ports
Chip Scheme RTL9303+RTL8261N
Performance
Exchange capacity 160Gbps
Packet Forwarding Rate 119.04Mpps
RAM 128 MByte
Flash Memory 16MByte
Memory Cache 12MBit
Mac Address Table 16K
Jumbo frame 12Kbyte
Standard
Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3az (Efficient and energy-saving Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

IEEE802.3 bz (2.5G/5G Ethernet standard)
Industry standards

EMS: EN61000-4-2 (ESD),

EN61000-4-5 (Surge)
Network Medium

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

10000Base-TX : Cat7 or above UTP(≤100m)
Certification
Safety certification CE, FCC, RoHS
Environment Standard
Working environment

Working temperature: - 10~50 ° C

Storage temperature: - 40~70 ° C

Working humidity: 10%~90%, non condensing

Storage humidity: 5%~95%, non condensing
Functional indication
Power light PWR(Power indication)
PWR (Power light)

On: Powered on

Off: Powered off

Port LED light (green)



On: 5G/10G link connection is normal

Flashing: Data transmission is normal

Off: Link not working
Port LED (yellow)

On: 100/1000M link connection is normal

Flashing: Data transmission is normal

Off: Link not working
Physical specifications

Structure size



Product size: 320* 207* 45mm

Package size: 370* 290* 85mm

Net weight of product: 1.72KG

Gross weight of product: 2.12KG
Packing information

Outer box size: 445* 310* 390mm

Packing quantity: 5 Pcs

Packing weight: 11.6KG
Supply voltage

Working voltage: AC100-240 V, 50/60Hz

Power supply: 12V8A
Power Maximum 38.6W
Packing list 1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ear



Dimension



8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless 1



Application



  • Metropolitan fiber broadband network: Telecommunications, cable TV, network system integration, etc., according to network operators.
  • Broadband private network: Suitable for special networks in industries such as finance, government, petroleum, railway, electric power, public security, transportation, education, etc.
  • Multimedia transmission: Integrated transmission of images, voice, and data, suitable for applications such as distance education, conference television, and videophone



8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless 2

8 Port 10G Ethernet Switch Unmanaged Auto-Sensing Speed Single AC Input Fanless 3
