Name: 9 Port Unmanaged 2.5G Ethernet Switch with 10G Uplink SFP Port and 60Gbps Backplane Bandwidth
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM1X80(2)GE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 2.5g Ethernet Switch

Power: AC 100-240V

Ethernet Ports: 8*2.5G RJ45 Ports

Uplink Ports: 1*10Gbps Sfp+ Port

Backplane Bandwidth: 60Gbps

Transfer Mode: Storage & Forward

Highlight:

Unmanaged 2.5G Ethernet Switch

9 Port Ethernet Switch

10G Uplink SFP Port Ethernet Switch

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Olycom

Certification: CE

Model Number: OM1X80(2)GE

Payment & Shipping Terms

Packaging Details: Netural Packing

Delivery Time: 4~8 working days

Payment Terms: T/T,PayPal

Supply Ability: 3000pcs/month

Gallery

9 Port Unmanaged 2.5G Ethernet Switch with 10G Uplink SFP Port and 60Gbps Backplane Bandwidth

Product Description

9 Port Unmanaged 2.5G Ethernet Switch With 10G Uplink SFP Port

High-Performance Network Switching Solution

This 9-port unmanaged 2.5G Ethernet switch features 8 multi-gigabit RJ45 ports and 1 high-speed 10G SFP fiber uplink port, delivering 60Gbps backplane bandwidth for demanding network environments.

Key Features

8×10M/100M/1G/2.5G RJ45 auto-negotiating ports
1×1G/2.5G/10G SFP fiber optic uplink port
Comprehensive IEEE standards compliance: 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x
Automatic MDI/MDIX port rollover for simplified cabling
Panel status indicators for monitoring and troubleshooting
Advanced flow control with IEEE 802.3x (full duplex) and Backpressure (half duplex)
Robust lightning protection: common mode 6KV; electrostatic air 8KV, contact 6KV

Technical Specifications

Input/Output Interface
Power	DC 2.1
Ethernet	8×2.5G RJ45 ports, 1×10G SFP ports

Performance
Backplane Bandwidth	60Gbps
Packet Forwarding Rate	44.64Mpps
VLAN	4096
MAC Address Table	4K
Jumbo Frame	12Kbytes
Forwarding Mode	Store Forward
MTBF	100,000 Hours

Network Parameters
Network Protocol	IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3bz (5G Ethernet), IEEE 802.3z (Gigabit Ethernet), IEEE 802.3ae (10G Ethernet), IEEE 802.3x (Flow Control)
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP (≤100m) 100Base-TX: Cat5 or higher UTP/STP (≤100m) 1000Base-TX: Cat5 or higher UTP/STP (≤100m)
Optical Fiber Medium	Multimode: 50/125, 62.5/125, 100/140μm Single-mode: 8/125, 8.7/125, 9/125, 10/125μm

Certification & Environmental Standards
Safety Certification	CE, FCC, RoHS
Working Environment	Operating temperature: -10°C to 50°C Storage temperature: -40°C to 70°C Operating humidity: 10% to 90% non-condensing Storage humidity: 5% to 95% non-condensing

Functional Indicators

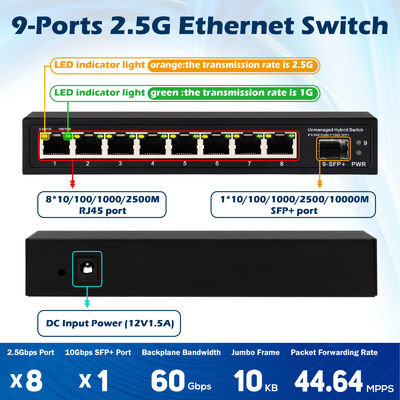

PWR (Power Indicator)	On: Powered on, Off: Powered off
Ports 1-8 Right Indicator	Green on: 10/100M Link normal, Off: Link off, Flashing: data transmitting
Ports 1-8 Left Indicator	Yellow on: 2.5G Link normal, Green on: 1.25G Link normal, Off: Link off, Flashing: data transmitting
Port 9 Fiber Indicator	On: 10G Link normal, Off: Link off, Flashing: data transmitting

Physical Specifications
Structural Dimensions	Product: 175×70×28mm Package: 197×170×40mm Product weight: 0.35kg Package weight: 0.55kg
Operating Voltage	Adapter input: AC 100-240V Switch input: DC 12V 1.5A
Packing List	Switch (1pc), Specification (1pc), Certificate of qualification (1pc), Power adapter (1pc)

Package Contents

Key Application Environments

Modern Wi-Fi 6/6E/7 Access Point Aggregation

Ideal for high-density deployments of advanced wireless access points. The 2.5G ports provide optimal trunk connections that prevent backhaul bottlenecks, while 10G uplinks efficiently aggregate traffic to core networks.
Bandwidth-Intensive Workspaces

Perfect for creative and professional environments including video editing studios, architectural firms, engineering departments, and research labs. Delivers significant performance improvements using existing Cat5e/Cat6 cabling infrastructure.
NAS and Storage Connectivity

Enables high-performance connectivity for Network-Attached Storage devices with 2.5GbE interfaces, facilitating faster file access, backup, and retrieval for small to medium workgroups.
Converged and Smart Buildings

Supports converged networks carrying data, VoIP, high-resolution IP security cameras, and building management systems. The 2.5GbE capacity provides future-proofing against growing bandwidth demands.
Cost-Effective Network Edge Evolution

Serves as an ideal upgrade solution for enterprises and campuses, protecting existing cabling investments while delivering immediate performance benefits through 10G uplinks to distribution or core layers.
