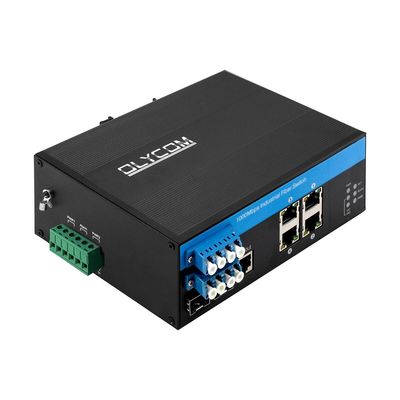

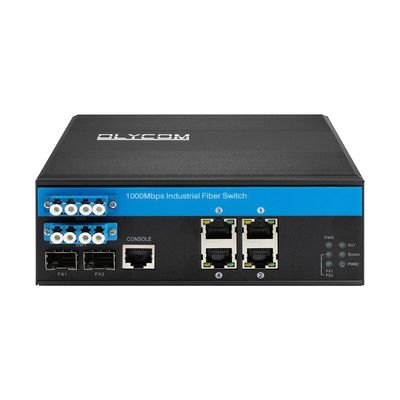

Olycom Industrial Managed Ethernet Bypass Fiber Switch
Introduction to Industrial Network Switch
IM-FBS240GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features
- Wide voltage dual power input
- Web GUI management
- Din rail installation
- FCC and CE certification
And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as
- Metropolitan area network (MAN)
- Dynamic configuration of add/drop multiplexing
- System monitoring
- Laboratory research and development
Meantime, the fiber pass switch characterizes
- Low Insertion Loss
- Wide Wavelength Range
- Low Channel Crosstalk
Specification of Bypass Fiber Switch
| Port |
2 x 100M/1G/2.5G SFP ports
SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500m
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z
IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344
IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x
IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
|
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Switching features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 58Gbps(non-traffic jam)
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, network, fiber
PWR: Power
FX: Fiber port(1/2)
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
|
| Power supply |
Redundant input voltage: DC12-52V
No-load power: 5W
Reverse connection: support
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm
Mounting method: Din-rail/Wall mounting
Net weight/Gross weight: 0.75Kg/0.9Kg
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Management Features
- Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
Optical Bypass Features
| Product Name |
Fiber Bypass |
| Power Interface |
Standard industrial terminal block. |
| Polarity Protection |
Support |
| Optical Fiber Interface |
LC |
| Wavelength Range |
850±40/1300±40nm; 1260~1650nm |
| Test Wavelength |
850/1300nm; 1310/1550nm |
| Insert Loss |
Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss |
MM≥30 dB SM≥50 dB |
| Channel Crosstalk |
MM≥35 dB SM≥55 dB |
| Polarization Loss |
≤0.05 dB |
| Wavelength Loss |
≤0.05 dB |
| Temperature Loss |
≤0.05 dB |
| Repeatability |
≤0.05 dB |
| Operating voltage |
3.3V-5V |
| Service life |
≥100000000 times |
| Switching time |
≤10 ms |
| Transmission optical power |
≤500 mw |
| Environment |
Working temperature:-20°～ 70°C
Storage temperature:-40°～ 85°C
|
FAQ
Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
How can I get a sample unit for testing?
A: We have many Amazon stores. Please search our brand Olycom or the model names if you know.
You are also welcome to talk with us for a standard purchase.
What is the power surge?
A: 6KV. This is the popular standard on the market now.
Do your switches support any ring protocols?
A: Yes, our switches support STP/RSTP/MSTP and ERPS for ring configuration.
