Olycom Industrial Managed Ethernet Bypass Fiber Switch
Introduction to Industrial Network Switch
IM-FBS240GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features
And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as
Meantime, the fiber pass switch characterizes
Specification of Bypass Fiber Switch
| Port |
2 x 100M/1G/2.5G SFP ports SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344 IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 58Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LEDs |
Power, network, fiber PWR: Power FX: Fiber port(1/2) Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s) |
| Power supply |
Redundant input voltage: DC12-52V No-load power: 5W Reverse connection: support |
| Environment |
Working temperature: -40～75°C Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
| Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020 EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021/AC:2022 CE-LVD: EN IEC 62368-1:2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail/Wall mounting Net weight/Gross weight: 0.75Kg/0.9Kg |
| Warranty | Replacement within 1 year; 3 years repairing |
Management Features
Optical Bypass Features
| Product Name | Fiber Bypass |
| Power Interface | Standard industrial terminal block. |
| Polarity Protection | Support |
| Optical Fiber Interface | LC |
| Wavelength Range | 850±40/1300±40nm; 1260~1650nm |
| Test Wavelength | 850/1300nm; 1310/1550nm |
| Insert Loss | Typ:0.6 dB Max:1.0 dB ; Typ:0.6dB Max:1.0 dB |
| Return Loss | MM≥30 dB SM≥50 dB |
| Channel Crosstalk | MM≥35 dB SM≥55 dB |
| Polarization Loss | ≤0.05 dB |
| Wavelength Loss | ≤0.05 dB |
| Temperature Loss | ≤0.05 dB |
| Repeatability | ≤0.05 dB |
| Operating voltage | 3.3V-5V |
| Service life | ≥100000000 times |
| Switching time | ≤10 ms |
| Transmission optical power | ≤500 mw |
| Environment |
Working temperature:-20°～ 70°C Storage temperature:-40°～ 85°C |
FAQ
Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
How can I get a sample unit for testing?
A: We have many Amazon stores. Please search our brand Olycom or the model names if you know.
You are also welcome to talk with us for a standard purchase.
What is the power surge?
A: 6KV. This is the popular standard on the market now.
Do your switches support any ring protocols?
A: Yes, our switches support STP/RSTP/MSTP and ERPS for ring configuration.

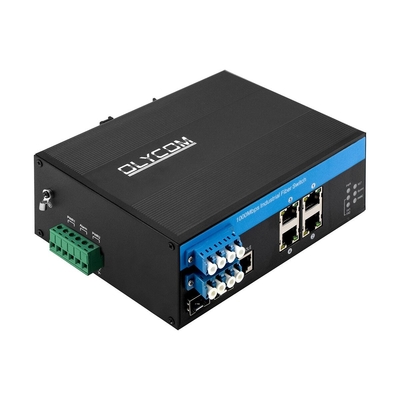

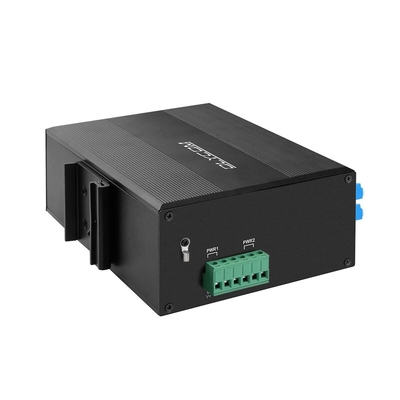

Product Photos
