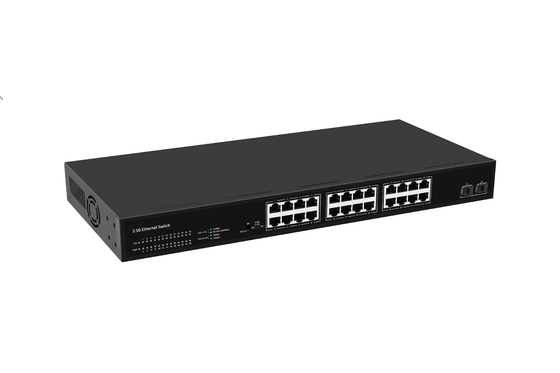

2.5G Unmanaged Commercial Ethernet Switch
24 Port 10G Uplink 2.5G LAN Switch enjoys below features
- Use high quality and high speed network chip solution
- 24*100/1000/2500M RJ45 ports and 2* 10G SFP+port
- Provide seamless connection to 10/100/1000/2500M Ethernet
- Easy management and maintenance
- Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
- Ethernet ports support 10/100/1000M/2.5G self-adaptive;
- Support port Auto MDI/MDIX;
- Panel indicator lights monitor working status and help failure analysis;
- Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;
- Support Port Surge Protection: Common Mode 6KV, Differential Mode 2KV (Class C); ESD air 8KV, Contact 6KV (Class C)
Specification of 24 port Ethernet switch
| I/O Interface |

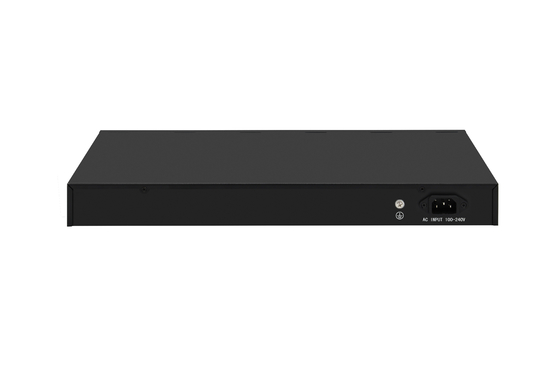

| Power |
AC 100-240V |
| Ethernet |
24* 100/1000/2500 Mbps RJ45 Ports
2* 10G SFP+ Ports
|
| Performance |
| Bandwidth |
160Gbps |
| Packet Forwarding Rate |
119.04Mpps |
| MAC Address Table |
16K |
| Transfer Method |
Storage and forward |
| Standard |
|
Network Protocol
|
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab(Gigabit Ethernet)
IEEE 802.3bz (5G Ethernet)
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ae (10G Ethernet)
IEEE802.3x (Flow control)
|
| Industry Standard |
EMS: EN61000-4-2 (ESD)
EN61000-4-5(Surge)
|
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)
100Base-TX: Cat5 or above UTP/STP(≤100m)
1000Base-TX: Cat5 or above UTP/STP(≤100m)
2.5GBase-T: Cat5e or above UTP/STP(≤100m)
5GBase-T: Cat6 or above UTP/STP(≤100m)
10GBase-T: Cat6a or above UTP/STP(≤100m)
|
| Network Medium |
1000BASE-SX: 62.5μm MMF(multi mode) (Minimum range:2m～275m) or 50μm MMF
1000BASE-LX: 62.5μm/50μm MMF(Minimum range:2m～550m) or 10μm SMF(Minimum range:2m～5km)
2500BASE-X: G.652D SMF(Single mode) (Minimum range:2m～500m or 2m～5Km)
10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range:2m～300m)
10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range:2m～10km)
|
| Environment standard |
| Working Environment |
Working Temperature: 0~40°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
| Indicator |
| PWR |
On: Powered on
Off: Powered off
|
| 1-24 ports |
Green on: 2.5G Link connect normal
Yellow on: 10/100/1000M Link connect normal
Off: Link off
Flashing: Data transmitting
|
| 25-26 Ports Green LIght |
On: 10G Link connect normal
Off: Link off
Flashing: Data transmitting
|
| SM |
The default speed of the optical port is 10G/2.5G, which changes to 10G/1G after pressing the switch button |
| Dialing |
On: VLAN mode is enabled (ports 1 to 22 are isolated and can only communicate with the uplink port)
Off: VLAN mode is off (all ports can communicate with each other)
|
FAQ
1. Are you a manufacturer or a trading company?
Yes. OLYCOM is a professional manufacturer specializing in fiber optic communication products, industrial Ethernet solutions, and networking equipment.
We operate our own production facilities and maintain an experienced R&D team responsible for product design, hardware development, testing, and continuous improvement. Unlike trading companies, we have direct control over the entire manufacturing process, including component sourcing, assembly, quality inspection, and delivery.
You are also welcome to explore our factory environment through the VR tour below, where you can view our office, production area, and manufacturing facilities:
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html
2. What is the typical lead time after placing an order?
Once payment is confirmed, we will immediately arrange order processing and production scheduling.
For frequently purchased models, we usually maintain sufficient inventory to support fast delivery. After completing product inspection and functional testing, the goods can be shipped directly.
For products that require production, the standard manufacturing lead time is generally around 3–5 working days for orders below 50 pcs/pairs. For larger quantities or customized projects, the lead time will depend on product specifications, order volume, and customization requirements.
We always try to balance production efficiency with strict quality control to ensure reliable product performance.
3. What shipping methods do you provide?
We support flexible international shipping solutions according to customer requirements.
For small orders and samples, we usually arrange shipment by international express services such as DHL, UPS, or FedEx for faster delivery.
For large-volume orders, sea freight is also available to optimize transportation costs.
Customers can use their own shipping accounts or nominated freight forwarders. We are also able to assist with shipment arrangements based on the agreed Incoterms.
Normally, express shipments can reach the destination country's customs area within approximately 3–5 calendar days, depending on the destination and customs procedures.
4. What is your minimum order quantity (MOQ)?
Our standard MOQ is very flexible.
For most products, the MOQ starts from 1 piece/pair, making it convenient for customers to evaluate samples, conduct compatibility testing, or start small projects.
Many popular models are available from stock, allowing customers to quickly obtain samples before moving into larger deployments.
5. Can you provide better pricing for larger orders?
Yes.
Our pricing structure is mainly based on order quantity, purchasing frequency, and project requirements.
After customers complete sample testing and confirm product suitability, we can provide more competitive pricing solutions for larger-volume orders, long-term cooperation, or distribution partnerships.
We always aim to build stable business relationships rather than focusing only on one-time transactions.
Packing Information
Product Size: 440*205*44mm
Package Size: 500*290*85mm
Product Net-Weight: 2.61KG
Product Gross Weight: 3.12KG
Carton size: 520*445*310mm
Packing Qty: 5 pcs
Packing weight: 16.6KG
This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
- Metro Optical Broadband Network: Data network operators such as telecommunication, cable TV, and network system integration, etc.
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
