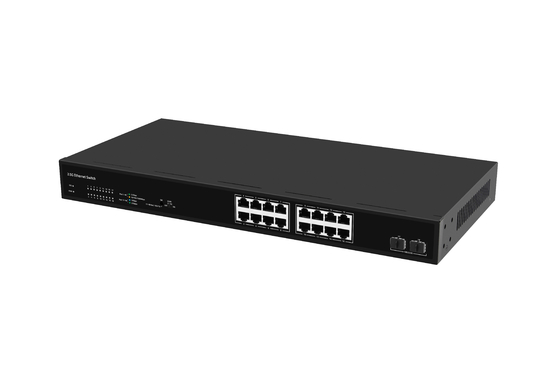

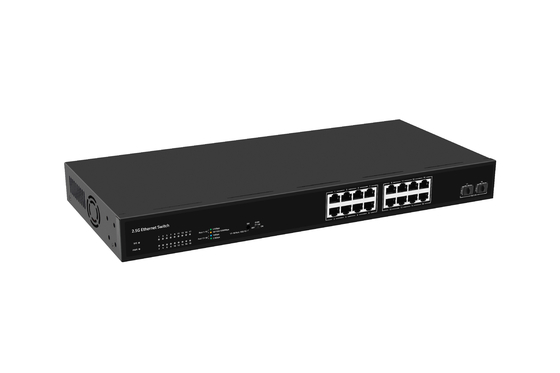

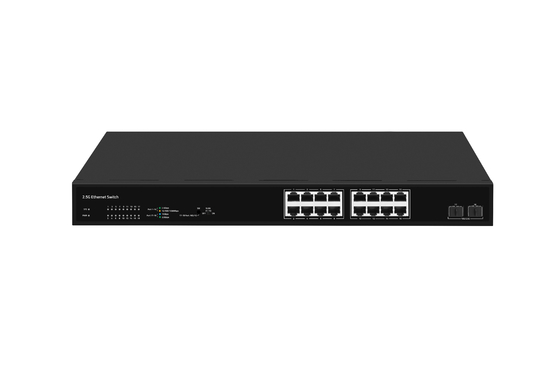

18 Port 2.5 gigabit unmanaged desktop switch with 16*2.5g RJ45+2*10G SFP
Introduction
18 Port 10G Uplink 2.5G Ethernet Switch, adopting a high-quality and high-speed network chip solution. This switch has 16* 100/1000/2500M RJ45 ports and 2*10G SFP+ ports, providing seamless connection for 10/100/1000/2500M Ethernet, making it easy to manage and maintain. This product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.
Specification of 10g Fiber Ethernet Switch
| I/O interface | |
| Power | AC 100-240V |
| Ethernet |
16* 100/1000/2500 Mbps RJ45 port 2* 10G SFP+ port |
| Performance | |
| Bandwidth | 120Gbps |
| Packet Forwarding Rate | 89.28Mpps |
| MAC Address Table | 16K |
| Transfer Method | Store and forward |
| Network Standard | |
| Network Protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control) |
| Industry Standard |
EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge)
|
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5 or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6 or above UTP/STP(≤100m) |
| Optical Fiber Medium |
1000BASE-SX: 62.5μm MMF(Multi mode optical fiber)(Minimum range:2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range:2m～550m) or 0μm SMF(Minimum range:2m～5km) 2500BASE-X: G.652D SMF(Single-mode optical fiber)(Minimum range:2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range:2m～300m) 10GBASE-LR: IEC and B1.1 and B1.3 SMF(Minimum range:2m～10km) |
| Certification | |
| Safety Certification |
CE FCC RoHS |
| Environmental Standard | |
| Working Environment |
Operating temperature: 0~40°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~95%, no condensation |
| Functional Indication | |
| PWR |
On: Powered on Off: Powered off |
| 1-16 Network Port |
Green on: 2.5G Link connect normal Yellow on: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting |
| 17-18 Green Light Port |
On: 10G Link connect normal Off: Link off Flashing: Data transmitting |
| Dialing |
On: Vlan mode is enabled (ports 1-14 are isolated and communicate with ports 15-18 of the uplink) Off: Vlan mode is off (all ports communicate with each other) |
| Physical Specification | |
| Structural Dimension |
Product size: 440*205*44mm Package size: 500*290*85mm Product weight: 2.21KG Packing weight: 2.72KG |
| Packing information |
Outer box size: 520*445*310mm Packing quantity: 5 PCS Packing weight: 14.6KG |

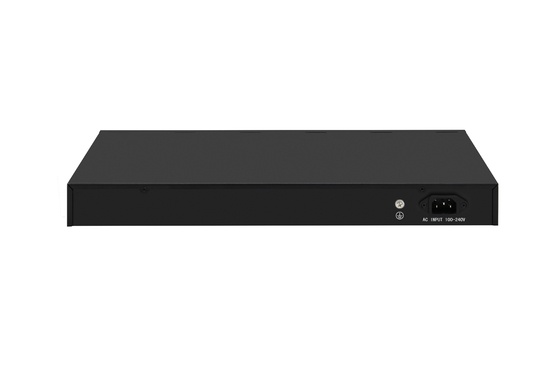

| Supply Voltage | AC 100-240V 12V 4A |
| Power | Maximum 36W |
| Packing list | 1 switch, 1 adapter, 1 manual, 1 certificate |
