4 Port Fast Ethernet CCTV Poe Switch With 2 Copper Uplink 55W Power Budget AC Input

4 Port Fast Ethernet CCTV Poe Switch With 2 Copper Uplink 55W Power Budget AC Input
Features Gallery Product Description Request A Quote
Product Name: 4 Port CCTV Poe Switch
Speed: 10/100Mbps
Port: 6 Copper Ports
PoE Budget: 55W
PoE Protocol: PoE Af/at Compliant
Power Input: AC100~240V
High Light:

4 port CCTV Poe Switch


55W CCTV Poe Switch


10/100Mbps Fiber Optic POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OM064-PSE-FE
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 860g G.W.
Delivery Time: 4~7 days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

4 port 10/100M commercial CCTV PoE Switch


Specification of fast Ethernet switch


I/O Interface
Power Input: AC 100-240V, 50/60Hz
Ethernet 4 Port 10/100M PoE + 2 Port 100M Ethernet Uplink
Switching Capacity 1.2Gbps
Throughput 0.8928Mpps
Packet Buffer 448Kbit
MAC Address 1K
Jumbo Frame 2Kbytes
Transfer Mode Store and forward
MTBF 100000 hour
Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3x (Flow control)

PoE Protocol


IEEE802.3af (15.4W)

IEEE802.3at (30W)

Network Medium


10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

Security Certificate CE,FCC,RoHS
Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~95%,non-condensing

LED Indicators PWR(power supply),SW(DIP),1-6 Green(Link&Data)
DIP Switch

VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Normal: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive;

Extend:Link extension mode, 1-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M


Structure Size

Product Dimension : 200mm*118mm*44mm

Package Dimension : 245mm*190mm*60mm



Packing Info

Carton MEAS:520*320*400mm

Packing Qty:20 units

Packing Weight:18.2KG

Power Voltage

Input Voltage :AC 100-240 V

Power supply:52V1.05A


Product power: maximum 5W

POE power: maximum 50W

Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable)

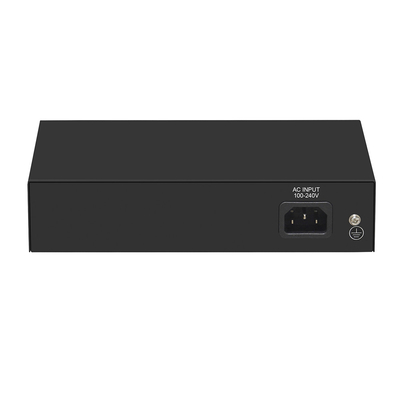

4 Port Fast Ethernet CCTV Poe Switch With 2 Copper Uplink 55W Power Budget AC Input 0

Features of Commercial Network switch


  1. 4*10/100M POE ports + 2* 10/100M Ethernet Uplink ports
  2. Comply with IEEE 802.3, IEEE 802.3ustandards
  3. Ethernet port supports 10/100M adaptive and POE functions
  4. Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
  5. Support port auto flip (Auto MDI/MDIX)
  6. Automatically supplied to adaptive devices
  7. Panel indicator monitoring status and help failure analysis
  8. Support for VLAN mode, OFF mode and Extend mode

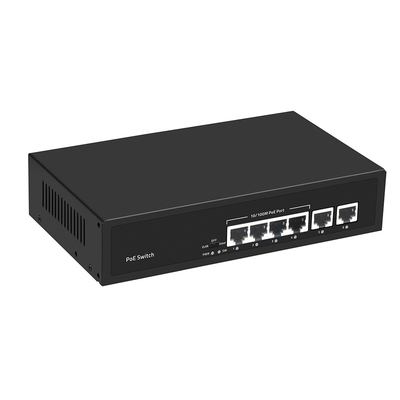

4 Port Fast Ethernet CCTV Poe Switch With 2 Copper Uplink 55W Power Budget AC Input 1

  • Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
  • Real-time monitoring: Simultaneous transmission of real-time control signals, images and data


Description of commercial PoE Switch


  • 6 Ports 100M Ethernet Power Switch (PoE Switch) uses high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both.
  • This series of PoE Switch can be 10/100M Ethernet, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
  • With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network.
  • It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
