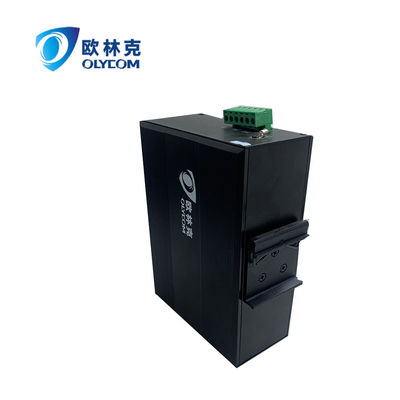

Industrial Managed Ethernet Switch LC Connector
Introduction of Industrial Managed Ethernet Switch
IM-FS280GW series is the 10/100/1000 Mbps industrial managed fiber switch, operating temperature -40 ℃ to + 75 ℃, support wide voltage dual power input, support web management, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial Managed Ethernet Switch
Specification of Industrial Managed Ethernet Switch
| Product Name | Industrial Managed LC Connector 8 Port Gigabit SFP Switch |
| Model No. | IM-FS280GW |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km；1490nm/1550nm,40~120Km MM:1310nm,2Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Safety |
CE Mark , commercial CE/LVD EN60950 |
| Warranty | 3 years |
Mechanical information of Industrial Managed Ethernet Switch
Shell: Corrugated metal shell
Safety class: IP40
Dimension:158 x 114.8 x 60mm
Mounting method: Din-rail mounting
Industry Standards of Industrial Managed Ethernet Switch
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
Packing List of Industrial Managed Ethernet Switch
Lead Time of Industrial Managed Ethernet Switch
| Quantity(Pieces) | 1-100 | >100 |
| Time(days) | 3 | Negotiable |
Warranty & Guarantee of Industrial Managed Ethernet Switch
1. All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
2. 36 Months Manufacturer Warranty (Excluding contrived damage or misusage). All the products have been passed the functional test and aging test before delivery.
3. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.
Quality Control of Industrial Managed Ethernet Switch
FAQ of Industrial Managed Ethernet Switch
Q: Is this a managed switch?
A: Yes, this is an L2 managed POE switch for industrial fiber optic networks.
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: What temperature range can this switch reach?
A: The operating temperature is -40~75℃
Q: Can I get a sample?
A: We can provide samples, feel free to contact me to talk about more details.
A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.
Q: Is a small DIN rail included?
A: This is a DIN rail switch, but the DIN rail is not included.
Q: Do you have CE, FCC, ROHS?
A: Yes.
Q: How do you guarantee the quality?
A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment.
Application of Industrial Managed Ethernet Switch
