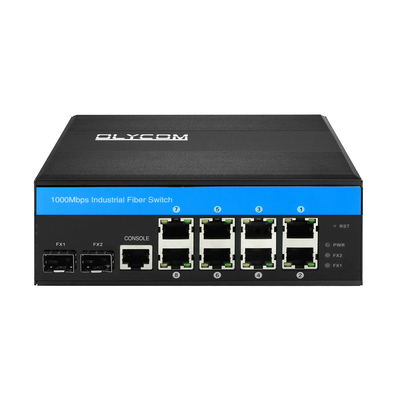

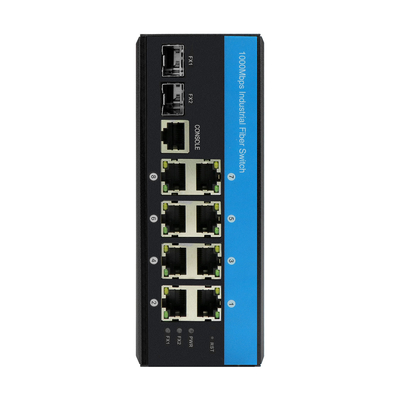

Industrial Managed Ethernet Switch 8 Port
Key Features of Managed Network Switch
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2 x 100/1000/2500Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- DIN rail or Wall installations
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
Specification of 2.5G Fiber Switch
| Product Name |
10/100/1000Mbps Managed Industrial Fiber Switch(2F+8TP) |
| Model No. |
IM-FS280GW |
| Port |
2*100/1000/2500Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Protocol |
IEEE 802.3
IEEE802.3U
IEEE802.3ab
IEEE802.3z
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
ITU-T G.8023 EPR/Y.1344
IEEE802.1Q
IEEE802.1X
IEEE802.3ad
IEEE802.3x
IEEE802.1ad
IEEE802.1p
IEEE802.1ab
IEEE802.3az
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 26Gbps(non-traffic jam)
Forwarding rate: 19.344Mpps
DRAM size: 128M
Flash size: 16M
Packet buffer size: 4Mb
VLAND ID: 4096
MAC Address Table Size: 8K
Jumbo Frame: 9.6KB
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, network, fiber
PWR: Power
Orange: Link/ACT
Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1/FX2
|
| Power Supply |
Input voltage: DC12V~DC52V
Reverse connection: support
|
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 158*115*60mm

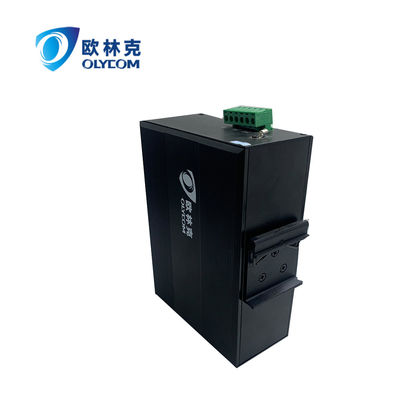

Mounting method: Din-rail/Wall mounting
Weight: 0.75Kg/0.9Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Please contact us for web manual or CLI manual
Packing List of Industrial Fiber Switch
- One Managed Fiber Switch, one console cable, one user manual, and one warranty card are in one box.
- 20pcs boxes are in one carton. (55.5*40*43cm)
Warranty & Guarantee
1. All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
2. 36 Months Manufacturer Warranty (Excluding contrived damage or misusage). All the products have been passed the functional test and aging test before delivery.
3. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.
Quality Control
- All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
- Every production process has a special person to test to ensure quality
- Every product must be tested before shipping to our customers. The quality is attached to great importance during the whole production process.
- All products have passed CE, FCC, ROHS, and other certifications
FAQ
Q: Is this a managed switch?
A: Yes, this is an L2 managed POE switch for industrial fiber optic networks.
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: What temperature range can this switch reach?
A: The operating temperature is -40~75℃
Q: Can I get a sample?
A: We can provide samples, feel free to contact me to talk about more details.
Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.
Q: Is a small DIN rail included?
A: This is a DIN rail switch, but the DIN rail is not included.
Q: Do you have CE, FCC, ROHS?
A: Yes.
Q: How do you guarantee the quality?
A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment.
Application of ERPS Ring Managed Switch
